Description

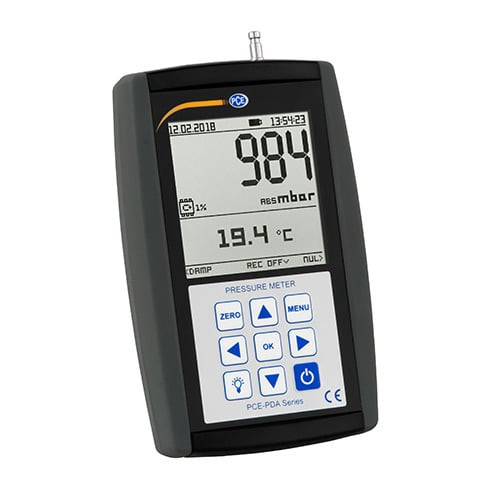

PCE Instruments Digital Pressure Gauge with Data Logger (PCE-PDA A100L) is a high-precision device designed to measure absolute pressure with a range of 0 to 200 kPa. This digital gauge is ideal for industrial, laboratory, and HVAC applications, offering multiple pressure units, a built-in data logger, and an easy-to-read graphic LCD.
The device features a quick coupling system for seamless pressure connection and can be powered by batteries or USB. With integrated temperature measurement and a high-precision mode, it delivers reliable and accurate readings.
- Specifications and Dimensions
- Pressure Measuring Range: 0 ... 200 kPa absolute
- Resolution: 0.01 kPa, 0.1 kPa
- Accuracy: < ± 0.5% of measuring range
- Nominal Pressure: 200 kPa
- Overpressure: 200 kPa
- Burst Pressure: 300 kPa
- Media: Liquids, Air, Non-aggressive gases
- Measurement Rate: 10 Hz
- Measurement Units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
- Pressure Type: Absolute pressure
- Pressure Connections: 5 mm nipple for quick connectors
- Data Logger: 1024 memory slots
- Recording Time: 1 s ... 255 h per memory location
- Recording Interval: 1 s ... 24 h
- Zero Correction: Yes, with a zero key
- Display: Graphic LCD with backlight
- Protection Class: IP41
- Power Supply: 2 x 1.5V AA batteries or 5V USB power adapter
- Operating Temperature: 0 ... 50°C / 32 ... 122°F
- Storage Temperature: 10 ... 55°C / 50 ... 131°F
- Dimensions: 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
- Weight: Approx. 285 g / < 1 lb
- Key Features and Benefits
- High-precision absolute pressure measurement
- Multiple pressure units for flexible application
- Graphic LCD with backlight for easy readability
- Built-in data logger with up to 1024 memory slots
- USB interface for power supply and data transfer
- Max, Min, and Hold functions for real-time monitoring
- Quick coupling system for seamless pressure connection
- Integrated temperature measurement for additional functionality
- Includes
- 1 x Pressure Gauge PCE-PDA A100L
- 2 x 1.2V AA NiMh Batteries
- 1 x USB Power Adapter
- 1 x Micro USB Cable
- 1 x User Manual
- Specifications and Dimensions
-
