Description

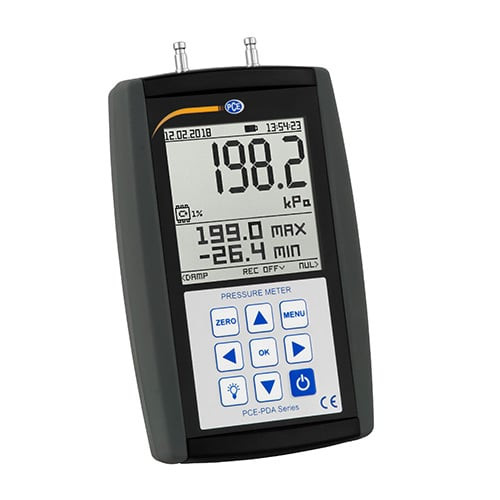

PCE Instruments Digital Pressure Meter with Data Logger and Leak Testing is a high-precision device for measuring differential and relative pressure in various applications, including HVAC, industrial, and laboratory environments. Featuring a data logger and leak test function, this meter provides reliable measurements with multiple pressure units.
With a large graphic display, switchable measurement units, and a high-precision mode, this pressure meter ensures accurate monitoring of airflow and gas pressure. It also includes a min/max value memory and a USB power option for extended use in demanding environments.
- Specifications and Dimensions
- Temperature Measuring Range: 0 ... 50°C / 32 ... 122°F
- Resolution: 0.1°C / 0.18°F
- Accuracy: ± 1°C / 1.8°F
- Pressure Measuring Range: ± 200 Pa
- Resolution: 0.01 / 0.1 Pa
- Accuracy: ± 1% of final value
- Nominal Pressure: PCE-PDA 01L: 200 Pa, PCE-PDA 1L: 2 kPa, PCE-PDA 10L: 20 kPa, PCE-PDA 100L: 200 kPa
- Overpressure: PCE-PDA 01L: 1 kPa, PCE-PDA 1L: 10 kPa, PCE-PDA 10L: 40 kPa, PCE-PDA 100L: 300 kPa
- Burst Pressure: PCE-PDA 01L: 20 kPa, PCE-PDA 1L: 100 kPa, PCE-PDA 10L: 100 kPa, PCE-PDA 100L: 400 kPa
- Measurement Media: PCE-PDA 01L: Air, PCE-PDA 1L: Liquid, Air, PCE-PDA 10L: Liquid, Air, PCE-PDA 100L: Liquid, Air
- Measuring Rate: 10 Hz
- Measurement Units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
- Pressure Measurement: Differential and relative
- Connections: 5 mm nipple for quick connectors
- Data Logger: 1024 memory slots
- Recording Time: 1 s ... 255 h
- Recording Interval: 1 s ... 24 h
- Zero Correction: Yes
- Display: Graphic LCD with backlight
- Protection Class: IP41
- Power Supply: 2 x 1.5V AA batteries or 5V USB adapter
- Operating Temperature: 0 ... 50°C / 32 ... 122°F
- Storage Temperature: 10 ... 55°C / 50 ... 131°F
- Dimensions: 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
- Weight: Approx. 285 g / < 1 lb
- Key Features and Benefits
- Measures differential and relative pressure with high accuracy
- Supports 16 measurement units for versatile applications
- Graphic display with backlight for clear data visibility
- Data logger function records up to 1024 measurement values
- Leak test mode for detecting pressure loss in sealed systems
- Quick coupling connection for efficient setup
- Measures temperature, flow velocity, and volume flow
- Simple operation with voice-controlled navigation
- Includes
- 1 x Pressure Meter
- 1 x USB Power Adapter
- 1 x Set of Pressure Connectors
- 1 x User Manual
