Description

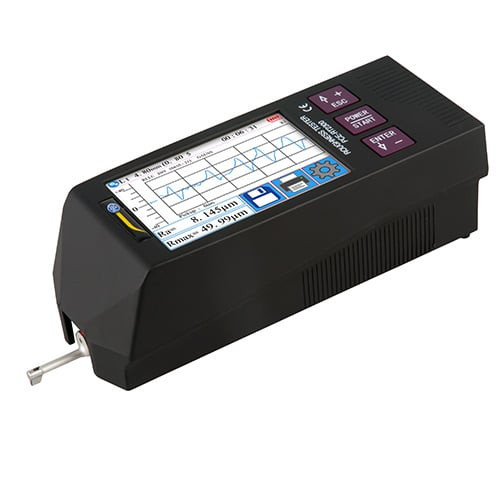

PCE Instruments Digital Roughness (PCE-RT 2300) is a precision instrument designed for quick and accurate measurement of surface roughness. Featuring a detachable motorized sensor, this device allows easy measurement of roughness on narrow or small profiles while delivering highly detailed results.
This roughness tester includes a diamond stylus sensor, ensuring precise measurements in compliance with ISO, ANSI, and JIS standards. The 3.5-inch LCD touchscreen provides a clear display of measurement data, including numerical values and graphical representations.
- Specifications and Dimensions
- Measurement Parameters: Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
- Measuring Range (Ra, Rq): 0.005 μm - 32 μm
- Measuring Range (Rz): 0.02 μm - 320 μm
- Accuracy: ±10%
- Repeatability: ±6%
- Resolution:
- ± 20 μm: 0.01 μm
- ± 40 μm: 0.02 μm
- ± 80 μm: 0.04 μm
- Measurement Standards: ISO 4287, ANSI B46.1, DIN 4768, JIS B601
- Graphical Display: Primary profile, roughness profile, loading curves
- Measuring Filter Options: RC, PC-RC, Gaussian, DP
- Cut-Off Wavelengths: 0.25 mm, 0.8 mm, 2.5 mm
- Measuring Length: 1 - 5 paths, max. 17.5 mm
- Probe Tip: Diamond, 90° cone angle, 5 μm radius
- Contact Force: < 4 mN
- Feed Rate:
- 0.25 mm: 0.135 mm/s
- 0.8 mm: 0.5 mm/s
- 2.5 mm: 1 mm/s
- Display: 3.5" LCD touchscreen
- Power Supply: 3.7V Li-Ion Battery
- USB Charging: 5V / 800-mA adapter
- Battery Life: 50 hours
- Operating Conditions: -20 ... 40°C (-4 ... 104°F), max. 90% RH
- Storage Conditions: -40 ... 60°C (-40 ... 140°F), max. 90% RH
- Dimensions:
- Main Unit: 158 x 55 x 52 mm (6.2 x 2.2 x 2 in)
- Motor Unit: 115 x 23 x 27 mm (4.5 x 1 x 1.1 in)
- Weight: Approx. 500 g (1.1 lbs)
- Key Features and Benefits
- High-precision measurement with removable motorized sensor for flexibility
- Measures 21 roughness parameters for comprehensive analysis
- 3.5-inch LCD touchscreen for easy data visualization
- USB interface for power supply and data transfer
- Stores measurement values for later retrieval
- Battery-powered operation for field and laboratory use
- Diamond probe ensures accurate and reliable surface readings
- Lightweight and portable for ease of transport
