Description

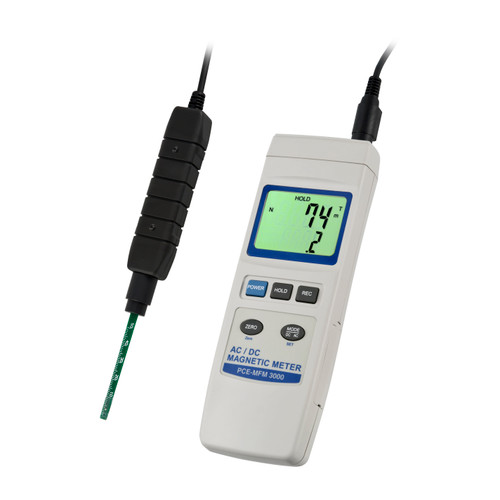

PCE Instruments PCE-MFM 3000 Electromagnetic Field Meter is a high-precision device designed to measure both static (DC) and dynamic (AC) electromagnetic fields with accuracy. This handheld EMF meter provides measurement results in Gauss (G) or milliTesla (mT), making it an essential tool for assessing permanent magnets, rare earth magnets, and magnetic components in industrial, research, and quality control applications.
The device features an RS-232 port for data transfer, enabling users to download measurements for analysis with built-in functions like max/min value detection, data hold, and auto-shutdown.
- Specifications and Dimensions
- Static (DC) Measurement Range: 0 ... 3000 mT / 0 ... 30,000 G
- Dynamic (AC) Measurement Range: 0 ... 1500 mT / 0 ... 15,000 G
- Resolution: 0.01 mT / 0.1 G (low range), 0.1 mT / 1 G (high range)
- Accuracy: ±5% + 10 digits (static) / ±5% + 20 digits (dynamic)
- Measurable Frequencies: 50 Hz / 60 Hz
- Measurement Rate: 1 second
- Measurement Direction: Uniaxial
- Display: Two-line LCD screen
- Functions: Data hold, max/min value recording, auto shutdown
- Operating Temperature: 0 ... 50°C / 32 ... 122°F
- Power Supply: 9V block battery or optional 9V mains adapter
- Input Current: Approx. 15 mA
- Device Dimensions: 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18 in
- Sensor Dimensions: 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75 in
- Weight: 275 g / 0.61 lb
- Key Features and Benefits
- Measures both static (DC) and dynamic (AC) electromagnetic fields
- External sensor allows for precise measurements in tight spaces
- Displays readings in Gauss (G) or milliTesla (mT) for easy interpretation
- RS-232 port enables data transfer to a PC for further analysis
- Hold function for capturing max and min field values
- Auto power-off feature conserves battery life
- Ideal for testing magnetic components, relays, and permanent magnets
- Includes
- 1 x PCE-MFM 3000 Electromagnetic Field Meter
- 1 x External Sensor
- 1 x 9V Block Battery
- 1 x Carrying Case
- 1 x User Manual
- Specifications and Dimensions
-
