Description

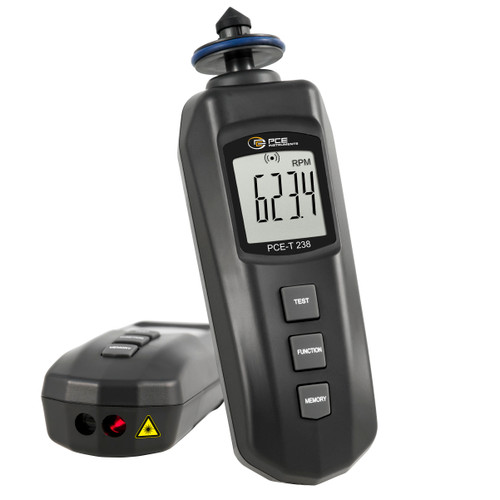

PCE Instruments Handheld Digital Tachometer (PCE-T 238) is designed for precise speed measurement. This battery-powered device offers both contact and non-contact measurement capabilities, making it ideal for industrial applications. The non-contact mode allows speed readings of up to 99,999 RPM, while the contact mode measures up to 19,999 RPM.
The PCE Instruments Tachometer features a user-friendly LCD display and operates independently of the rotation direction. It is perfect for monitoring machine performance and hard-to-reach components.
- Specifications and Dimensions
- Non-contact measurement range: 5 ... 99,999 RPM
- Contact measurement range: 0.5 ... 19,999 RPM
- Surface measurement range: 0.05 ... 1,999.9 m/min
- Resolution:
- RPM: <1,000 RPM: 0.1, ≥1,000 RPM: 1
- Surface speed: <100 m/min: 0.01, ≥1000 m/min: 1
- Measurement accuracy: ± (0.1% of rdg. + 1 digit)
- Measuring distance (non-contact): 5 ... 150 cm / 2 ... 59 in
- Laser class: Class II, 1 mW power
- Operating conditions: 0 ... 50°C / 32 ... 122°F, <80% RH
- Display: LCD, size 32 x 28 mm / 1.2 x 1.1 in, 5 digits
- Memory: Last value, extreme values with recall function
- Data interface: RS232
- Power supply: 4 x 1.5V AAA batteries
- Power consumption:
- Non-contact measurement: ~20mA
- Contact measurement: ~9.5mA
- Weight: 182 g / 6.4 oz (including batteries)
- Dimensions: 165 x 50 x 33 mm / 6.5 x 1.9 x 1.3 in
- Key Features and Benefits
- Supports both contact and non-contact measurement for versatile use
- Measures rotational and surface speeds with precision
- Equipped with a laser for non-contact readings up to 150 cm away
- Works independently of rotation direction
- Ideal for measuring hard-to-reach machine components
- Memory function stores last and extreme values for quick recall
- Compact and lightweight design for convenient handheld operation
- Includes
- 1 x Digital Tachometer PCE-T 238
- 2 x Rubberized measuring tip (cone shape)
- 1 x Rubberized measuring tip (funnel shape)
- 1 x Reflective contact strip (~60 cm / 1.9 ft)
- 4 x 1.5V AAA batteries
- 1 x User manual
- Specifications and Dimensions
-
