Description

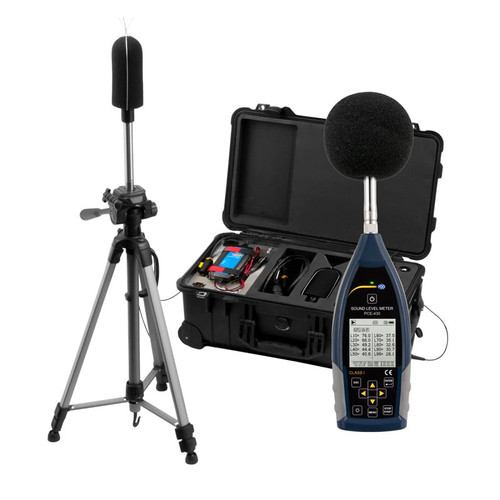

PCE Instruments Outdoor Sound Level Meter Kit with Data Logger and Tripod (PCE-430-EKIT) is a high-precision Class 1 noise measuring system designed for long-term environmental monitoring. With a built-in data logger and a durable outdoor kit, this device is ideal for road noise analysis, construction sites, industrial areas, and environmental impact studies.
The weatherproof Peli carrying case protects the components, while the rechargeable batteries provide up to 10 days of continuous operation. The meter features an integrated 1/1 octave band filter with an optional 1/3 octave upgrade.
- Specifications and Dimensions
- Measuring Range: 22 to 136 dB(A)
- Accuracy: Class 1 (±1.5 dB)
- Frequency Range: 3 Hz to 20 kHz
- Frequency Weightings: A, B, C, Z
- Time Weightings: Fast (F), Slow (S), Pulse (I), Peak
- Data-Logging Interval: 1 second to 24 hours (adjustable)
- Octave Band Filter: 1/1 Octave (standard), 1/3 Octave (optional upgrade)
- Microphone Type: 1/2 inch Measurement Microphone (Class 1, 40 mV/PA, TNC connection)
- Memory: 4 GB Micro SD card
- Interfaces: USB, RS-232
- Voltage Output: AC 5V RMS / DC 10 mV/dB
- Power Supply: 4 x 1.5V AA Batteries / 12V / 1A Power Plug / 5V USB
- Battery Life: Up to 10 days (with outdoor kit)
- Operating Conditions: 0 to 50 °C (32 to 122 °F), 10 to 95% RH
- Dimensions (Main Unit): 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in
- Weight: Approx. 620 g / 1.4 lbs (Main Unit)
- Outdoor Kit Case: PELI 1510 with IP65 Protection
- Charger: Victron Blue Smart 12V / 4A IP65
- Battery Running Time: Up to 10 Days
- Tripod Included: Yes
- Key Features and Benefits
- Professional Class 1 sound level meter for outdoor noise monitoring
- Weatherproof outdoor case with built-in rechargeable batteries
- Data logger with USB connectivity for easy data transfer
- 1/1 octave band filter included with optional 1/3 octave upgrade
- Supports A, B, C, and Z frequency weightings
- Adjustable measurement intervals from 1 second to 24 hours
- Tripod included for stable long-term environmental noise measurements
- Ideal for construction sites, road traffic, airports, and industrial areas
- Includes
- 1 x Outdoor Sound Level Meter PCE-430-EKIT
- 1 x 1/2 inch Measurement Microphone (Class 1)
- 1 x Wind Noise Suppressor (Foam Ball)
- 1 x USB Cable for Data Transfer
- 1 x Power Adapter
- 1 x 4 GB Micro SD Card
- 1 x Weatherproof Peli Carrying Case (IP65)
- 1 x Wind and Rain Protection for Microphone
- 1 x Charger for Internal Batteries
- 2 x 12V Lead Gel Batteries
- 1 x Tripod
- 1 x 2m Microphone Cable
- 1 x Connection Cable for Power Supply
- 1 x User Manual
- Specifications and Dimensions
-
