Description

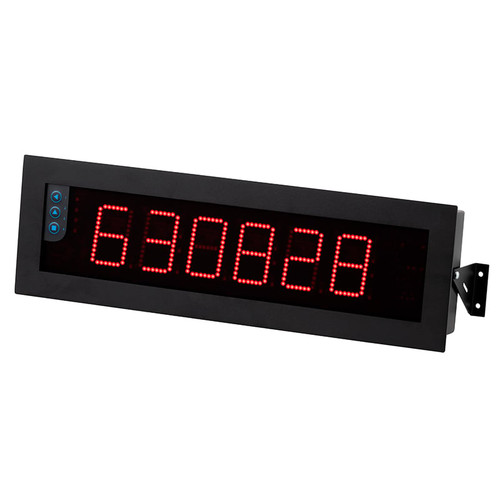

PCE Instruments Panel Meter is a highly versatile measurement device designed for industrial environments. With a large LED display and an IP65-rated metal housing, this panel meter ensures long-term durability and easy readability from distances up to 50 meters. The PCE Instruments Panel Meter supports various input signals, including 4-20 mA and ±10 V DC, making it suitable for diverse monitoring applications.
The bright red LED digits offer excellent visibility, even in bright conditions, making it ideal for use in manufacturing, automation, and quality control systems.
- Specifications and Dimensions
- Function: Converts analog signal into a usable value
- Input Signal: 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC
- Maximum Input Signal: 100 mA or 100 V DC
- Input Impedance (Current Measurement): 11 Ω
- Input Impedance (Voltage Measurement): 932 kΩ
- Display: 7-segment LED with 4 digits
- Digit Height: 100 mm / 3.9"
- Maximum Reading Distance: 50 m / 164 ft
- Accuracy: 0.05% of measuring range
- Measuring Rate: 15 Hz
- Response Time: 120 ms
- Display Range: -1999 ... 9999
- Power Supply: 85 – 265 V AC / 120 – 370 V DC
- Power Consumption: 5.25 W (without accessories), 6.75 W (with accessories)
- Sensor Voltage Supply: 20, 15, 10, 5 V DC
- Sensor Power Supply Accuracy: ±5%
- Maximum Sensor Supply Current: 35 mA (short-circuit protected)
- Viewing Angle: 120°
- Operating Conditions: 0 – 50 °C / 32 – 122 °F, <90% RH
- Storage Conditions: -20 – 70 °C / -4 – 158 °F, <90% RH
- Weight: 2500 g / 88.1 oz
- Dimensions: 542 mm x 166 mm x 55 mm / 21.3" x 6.5" x 2.1"
- Key Features and Benefits
- High-visibility LED display for clear readings in industrial settings
- IP65-rated metal housing for protection in harsh environments
- Compatible with multiple input signals, including 4-20 mA and ±10 V DC
- Fast response time of 120 ms for real-time monitoring
- Configurable via keypad for custom measurement applications
- Wall or control cabinet mounting options for flexible installation
- Reliable sensor voltage supply with short-circuit protection
- Specifications and Dimensions
-
