Description

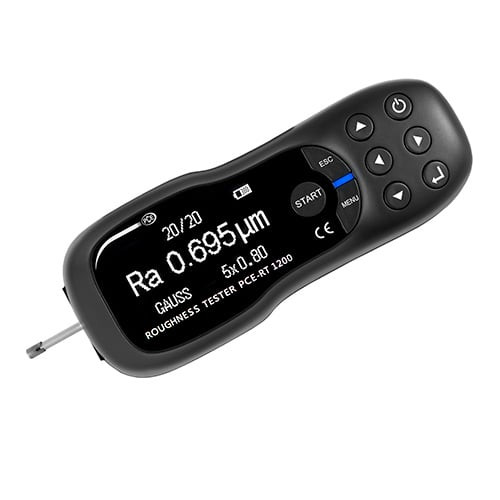

PCE Instruments Profilometer - Roughness Tester (PCE-RT 1200) is a compact and portable device designed to measure surface roughness with high accuracy. Ideal for mobile use, this profilometer ensures precise roughness testing across various materials and applications, including industrial production and laboratory environments.
Equipped with a high-quality diamond probe and an OLED display, this roughness tester offers real-time measurement results and data storage for up to 20 readings. The micro-USB interface enables easy data transfer and charging, making it suitable for extensive surface roughness analysis and serial measurements.
- Specifications and Dimensions
- Measurement Parameters: Ra, Rz, Rq, Rt
- Measuring Range (Ra, Rq): 0.005 ... 16.00 µm / 0.197 ... 629.921 µin
- Measuring Range (Rz, Rt): 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
- Probe Tip Radius: 5 µm / 196.850 µin
- Probe Tip Material: Diamond (90° angle)
- Max. Recommended Static Measurement Force: 4 mN (0.4 gf)
- Standards: ANSIB46.1 / ASMEB46.1 (DIN EN ISO 4287)
- Maximum Driving Distance: 15 mm / 0.59"
- Cut-Off Wavelengths: 0.25 mm / 0.8 mm / 2.5 mm
- Testing Speed:
- 0.135 mm/s at 0.25 mm cut-off wavelength
- 0.5 mm/s at 0.8 mm cut-off wavelength
- 1 mm/s at 2.5 mm cut-off wavelength
- Reversing Speed: 1 mm/s
- Measuring Accuracy: < ±10%
- Repeatability: < 6%
- Display: OLED
- Units: μm / μinch (switchable)
- Interface: Micro-USB
- Power Supply: Rechargeable Li-Ion Battery
- Dimensions (L x W x H): 150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
- Weight: 370 g / < 1 lb
- Key Features and Benefits
- Compact and lightweight for portable roughness testing
- Measures Ra, Rz, Rq, and Rt roughness parameters
- Diamond-tipped probe for precision measurement
- Large OLED display with clear measurement readout
- Micro-USB interface for data transfer and charging
- Data storage for up to 20 readings with software support
- Internal rechargeable Li-Ion battery for extended operation
- Comes with a calibration standard for measurement verification
- Specifications and Dimensions
-
