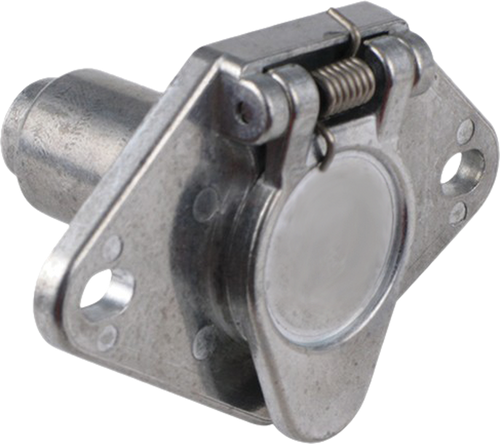

Phoenix USA 4-Way Round Plug (11-404)

The Phoenix USA 4-Way Round Plug (11-404) is a crucial component for establishing a reliable electrical connection between your vehicle and trailer. This socket, designed as the female end for your vehicle, provides the necessary link to power your trailer's essential lighting functions, including tail lights, brake lights, and turn signals. Manufactured with a focus on durability and consistent performance, this 4-pole round pin connector ensures a safe and legally compliant towing experience. Its robust construction and thoughtful design make it a dependable choice for various towing applications.

KEY FEATURES AND BENEFITS:

• Reliable Lighting Connection: Ensures a secure electrical link for powering essential trailer lights (tail, brake, turn signals), enhancing safety on the road.
• Durable Metal Construction: Features a heavy-duty metal (likely die-cast zinc) housing, providing excellent resistance to the elements and physical stress for long-lasting performance.
• Vehicle-Side Socket: Designed as the female connector to be mounted on your tow vehicle, offering a standard interface for compatible 4-way round trailer plugs.
• Secure Wire Termination: Accommodates up to #12 gauge wire, allowing for secure and efficient electrical connections.
• Protective Design: Features an extended exterior and socket to help shield the terminals from dust, dirt, and moisture, contributing to a more reliable connection over time.
• Cable Support: Often includes a cable clamp mechanism that helps prevent chafing and provides strain relief for the wiring, extending the lifespan of the connection.
• Stable Pin Design: Integral pins are engineered to resist loosening, maintaining a consistent electrical contact during towing.
• Polarized Connection: Designed with polarization to ensure correct alignment and prevent improper connections, safeguarding both vehicle and trailer electrical systems.
• Easy Mounting: Equipped with two 1/4" diameter mounting holes spaced 2 7/8" on center, and requires a 1 3/8" diameter mounting hole for straightforward installation.
• Broad Compatibility: Specifically designed to mate with standard 4-way round trailer plugs, such as the Pollak 11-402 and 11-403.

SPECIFICATIONS:

• Product Name: Phoenix USA 4 Way Round Plug
• Part Number: 11-404
• Manufacturer (Primary): Pollak (Pollak Part Number: 11-404)
• Type: 4-Way Round Socket (Female, Vehicle End)
• Number of Poles: 4
• Pin Type: Round
• Voltage Rating: 12-24 Volts
• Current Rating: 35 Amps (Note: Not compatible with standard 20 amp 4-way plugs)
• Wire Gauge Capacity: Up to #12 AWG
• Mounting Holes: 2 x 1/4" Diameter
• Mounting Hole Spacing: 2 7/8" (on center)
• Required Mounting Hole Diameter: 1 3/8"
• Housing Material: Typically Die-Cast Zinc (Metal)
• Spring Material: Often Stainless Steel

HOW TO USE:

• Preparation: Identify a suitable mounting location on your vehicle's rear, ensuring it is protected from damage and easily accessible for trailer connection.
• Drill Mounting Hole: Drill a 1 3/8" diameter hole at the chosen location.
• Position the Socket: Insert the Phoenix USA 4 Way Round Plug 11-404 into the drilled hole.
• Secure the Socket: Use two screws (not typically included) through the 1/4" mounting holes to firmly attach the socket to the vehicle's frame or mounting surface, ensuring the 2 7/8" center-to-center spacing is maintained.
• Wire Connections: Identify the wiring functions for each of the four pins (typically: Ground, Tail Lights, Left Turn/Brake, Right Turn/Brake). Connect the corresponding wires from your vehicle's wiring harness to the terminals on the back of the socket. Ensure secure and correct connections, referring to your vehicle's wiring diagram if necessary.
• Cable Clamp (If Applicable): If your plug includes a cable clamp, route the vehicle's wiring through it before connecting to the terminals. After wiring, tighten the clamp to provide strain relief and prevent wire chafing.
• Testing: Once all connections are made, connect a compatible 4-way round trailer plug and test all the trailer's lights (tail lights, brake lights, left turn signal, right turn signal) to ensure proper functionality.

BENEFITS OF USING THE PHOENIX USA 4-WAY ROUND PLUG (11-404):

• Robust metal construction ensures a long service life, resisting damage from environmental factors and the rigors of towing.
• Reduces connection issues, contributing to more consistent performance of your trailer lights and enhancing road safety.
• Secure wire termination and optional cable clamp improve the durability and stability of the electrical connection.
• Polarized interface ensures compatibility with a wide range of 4-way round trailer plugs, simplifying the connection process.
• Provides a dependable and straightforward solution for basic trailer lighting connectivity.

FEATURES:

• Heavy-gauge metal casing for enhanced strength.
• Extended housing design to shield terminals from the elements.
• Integral pin construction to prevent loosening over time.
• Polarized design for correct and safe connection.
• Accommodates standard 4-way round trailer plugs.
• Two mounting holes for secure attachment to the vehicle.
• Accepts up to #12 AWG wire for reliable current flow.
• Optional cable clamp for wire protection and strain relief.
• Suitable for 12V and 24V electrical systems.
• Designed for basic trailer lighting functions.
