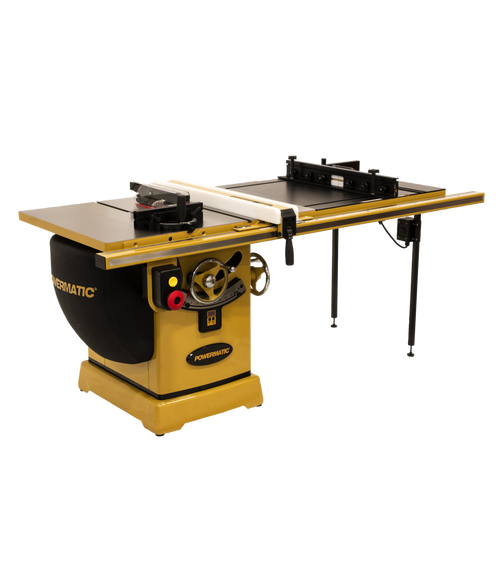

Powermatic 5HP 3PH Table Saw w/ Accu-Fence & Router Lift (PM25350K)

The Powermatic 5HP 3PH Table Saw w/ Accu-Fence & Router Lift (PM25350K) is a high-end cabinet saw designed for professional woodworkers and serious hobbyists. It boasts an array of innovative features and a massive body design to deliver exceptional performance, precision, and durability.

KEY FEATURES AND BENEFITS:

• Rock-Solid Stability: The one-piece cast iron box trunnion provides unmatched stability for accurate cuts, even with heavy workloads.
• Precision Cutting: Achieve perfect cuts every time with the precision-ground cast iron tables featuring matching bevels on the table and extensions for smooth transitions. The integrated digital readout on the blade tilt scale ensures accurate bevel angle settings.
• Powerful Performance: The 5-horsepower motor tackles even the most demanding materials with ease. The Poly-V drive belt system delivers quiet and efficient power transfer, minimizing vibration and heat build-up.
• Unmatched Rip Capacity: Make rip cuts up to an impressive 50 inches wide, ideal for large projects.
• Safety First: The PM25350RK prioritizes safety with a proprietary safety switch with magnetic interlock and a stop button that can be activated by knee. The quick-release riving knife further enhances safety by helping to prevent kickback.
• Easy Blade Changes: Change blades quickly and effortlessly with the conveniently located arbor lock accessible from above the table.
• Effortless Maneuvering: The newly designed integrated hydraulic caster system allows for easy movement of the saw around your workshop, even over thresholds.
• Clean Workspace: The improved dust collection system with a 4-inch dust port keeps your workspace clean and free of sawdust, improving visibility and overall work environment.
• Accu-Fence System: The newly designed Accu-Fence system ensures precise cuts and superior user experience.

SPECIFICATIONS:

• Blade diameter: 10 inches
• Arbor diameter: 5/8 inches
• Arbor speed: 4500 RPM
• Maximum depth of cut at 90 degrees: 3-1/8 inches
• Maximum depth of cut at 45 degrees: 2-1/8 inches
• Maximum dado diameter: 8 inches
• Maximum dado width: 13/16 inches
• Table size: 22 x 30-1/2 inches (with extensions: 42 x 30-1/2 inches)
• Motor power: 5 horsepower
• Motor phase: 3
• Motor voltage: 230/460 volts
• Dust collection port diameter: 4 inches
• Weight: Approximately 662 lbs

HOW TO USE:

1. Ensure the Powermatic PM25350K is connected to a suitable 3-phase electrical supply (230/460 volts).
2. Adjust the Accu-Fence system for precise rip cuts.
3. Set the blade tilt angle using the integrated digital readout for accurate bevel cuts.
4. Activate the saw using the safety switch with magnetic interlock.
5. Feed your workpiece smoothly through the saw blade, maintaining steady pressure.
6. Utilize the knee-activated stop button for emergency stops or quick operational halts.
7. Connect a 4-inch dust collection hose to the port to maintain a clean working environment.

BENEFITS OF USING THE Powermatic 5HP 3PH Table Saw w/ Accu-Fence & Router Lift (PM25350K):

• Precision and Accuracy: Achieve perfect cuts with the Accu-Fence system and digital readout.
• Powerful Performance: 5 HP motor handles tough materials with ease.
• Safety Features: Magnetic interlock switch and knee-activated stop button enhance user safety.
• Efficiency and Convenience: Easy blade changes and integrated hydraulic caster system.

FEATURES:

• One-piece cast iron box trunnion.
• Precision-ground cast iron tables with matching bevels.
• 5-horsepower motor with Poly-V drive belt system.
• Up to 50 inches wide.
• Magnetic interlock switch, knee-activated stop button, quick-release riving knife.
• Integrated hydraulic caster system.
• Improved dust collection system.
• Ensures precise cuts.
