Description

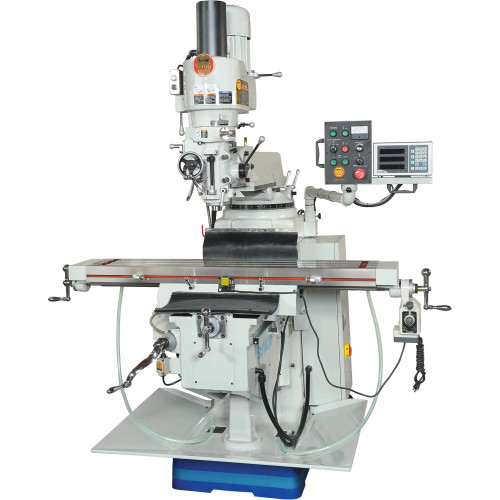

South Bend Heavy Duty 10" x 54" 5 HP Mill with 3 Axis DRO Power Drawbar (SB1028F) is engineered for demanding applications, featuring a robust 5 HP motor and variable speeds from 60 to 5000 RPM. Equipped with a Fagor 3-axis DRO and an Align power drawbar, this mill simplifies precision machining with rapid tool changes and accurate positioning down to 0.0002".
This machine is constructed with Meehanite castings, hand-scraped Turcite-coated ways, and wide dovetails for ultra-smooth and precise movement. The Allen-Bradley control system and Yaskawa inverter ensure consistent and reliable performance, while the one-shot lubrication system reduces maintenance time, providing efficient operation in production settings.
- Specifications and Dimensions
- Spindle motor: 5 HP, 220V, 3-phase, 14A
- Coolant pump motor: 1/8 HP, 0.45A
- Table elevation motor: 1/4 HP, 1.95A
- Feed motor: 1/10 HP, 0.8A
- Spindle travel: 5"
- Max distance spindle to column: 26"
- Max distance spindle to table: 16-1/2"
- Longitudinal travel: 35"
- Cross travel: 16"
- Vertical travel: 14-1/4"
- Ram travel (In/Out): 19-1/2"
- Ram swivel: 360°
- Head swivel: 90°
- Head tilt: 45°
- End milling capacity: 1"
- Face milling capacity: 4"
- Table size: 10" W x 54" L x 3" T
- Table T-slots: (3) 5/8"
- Table capacity: 750 lbs.
- Spindle taper: R-8
- Power drawbar
- Spindle speeds: variable, 60-5000 RPM
- Dimensions: 66" W x 77" D x 89" H
- Footprint: 41-1/2" L x 24-1/2" W
- Key Features and Benefits
- Fagor 3-axis DRO with 0.0002" resolution for precise measurements
- Align power drawbar for fast tool changes, boosting productivity
- Yaskawa inverter and Allen-Bradley controls for stable, consistent operation
- Turcite-coated ways and Meehanite castings for durability and smooth movement
- Variable-speed power feed on X and Z axes for enhanced control
- One-shot lubrication system reduces maintenance time
- Specifications and Dimensions
-
