Description

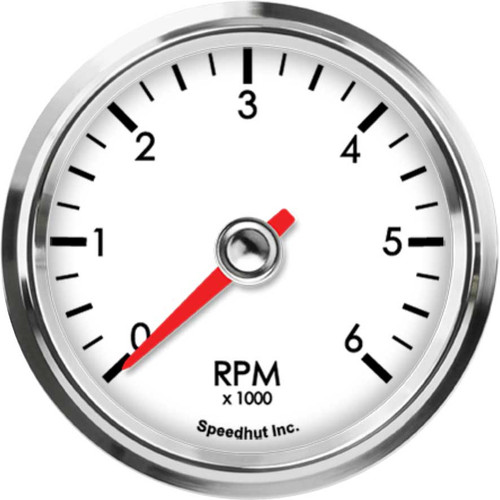

The Speedhut 2-5/8" 6K RPM Diesel Tachometer (L25-TC7-LEG) is an essential instrument for any diesel vehicle owner looking for accurate and reliable engine speed monitoring. Designed with a classic aesthetic, this gauge seamlessly integrates into a variety of dashboards while providing precise readings up to 6,000 RPM. Its compatibility with multiple diesel signal types ensures broad application across different engine configurations.
KEY FEATURES AND BENEFITS:
- Accurate RPM Measurement: Provides precise readings of your diesel engine's revolutions per minute up to 6,000 RPM.
- Diesel Engine Compatibility: Specifically designed for diesel engines utilizing an alternator with an 'R' or 'W' terminal, a crank sensor signal, or a magnetic pulse sensor.
- Standard Sizing: Features a 2-5/8 inch (67mm) diameter, fitting standard gauge openings.
- Easy Installation: Requires a 2.68 inch (68mm) mounting hole for straightforward installation.
- Included Wiring: Ships with a 3 ft Power & Lighting Harness, an 8 ft Htz Tachometer Harness, and a Gauge Programming Button for LED-lit functionality.
- Illuminated Display: Designed for clear visibility in all lighting conditions.
- Durable Construction: Built to withstand the rigors of automotive use.
SPECIFICATIONS:
- Measurement System: Standard
- Gauge Type: Tachometer
- Tachometer Signal Type: Diesel (alternator with an 'R' or 'W' terminal, crank sensor signal, magnetic pulse sensor)
- Range: 0-6000 RPM
- Size: 2 5/8 inch (67mm)
- Hole Size: 2.68 inch (68mm)
- Internal Shift Light: No
- Included: 3 ft Power & Lighting Harness, Gauge Programming Button, 8 ft Htz Tachometer Harness
HOW TO USE:
- Mount the Gauge: Locate a suitable 2.68-inch (68mm) diameter opening on your dashboard. Insert the tachometer into the opening. Secure it from the back using the provided mounting hardware (likely a spin-lock ring, though not explicitly stated in your provided details).
- Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a suitable power source (typically 12V) and ground in your vehicle's electrical system. This harness also provides power for the gauge's illumination.
- Connect the Tachometer Signal Harness: Connect the 8 ft Htz Tachometer Harness to the appropriate signal output from your diesel engine. This could be the 'R' or 'W' terminal on your alternator, the crank sensor signal, or the magnetic pulse sensor, depending on your engine type. Refer to your vehicle's service manual for the location of these signal outputs.
- Program the Gauge (if applicable): If your gauge features programmable settings (likely related to the LED lighting), use the provided Gauge Programming Button according to the manufacturer's instructions (not detailed in your provided information).
- Verify Functionality: Once all connections are made, start your vehicle and observe the tachometer to ensure it is reading the engine RPM accurately. Check the illumination is working correctly when the vehicle's lights are turned on.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 6K RPM DIESEL TACHOMETER (L25-TC7-LEG):
- Accurate Engine Monitoring: Provides real-time and precise information about your engine's speed, crucial for optimal performance and preventing over-revving.
- Universal Diesel Compatibility: Designed to work with various diesel engine signal types, offering broad applicability.
- Easy Integration: The standard 2-5/8" size ensures it can fit into common gauge mounting locations.
- Simplified Installation: The included wiring harnesses streamline the installation process.
- Enhanced Visibility: The illuminated display allows for easy reading of engine speed at any time of day or night.
- Reliable Performance: Built with quality components for consistent and dependable operation.
FEATURES:
- Dedicated Diesel Compatibility: Specifically engineered to interpret signals from diesel alternators ('R' or 'W' terminal), crank sensors, and magnetic pulse sensors.
- Standard 2-5/8" Form Factor: Designed for seamless integration into common gauge panels with a 2.68" mounting requirement.
- Comprehensive Wiring Included: Comes with a dedicated 8 ft harness for the tachometer signal and a separate 3 ft harness for power and illumination.
- Programming Capability: Includes a button to adjust settings related to the gauge's LED lighting features.
- Clear Analog Display: Features a traditional pointer and numerical markings for easy readability of engine speed up to 6,000 RPM.
-
