Description

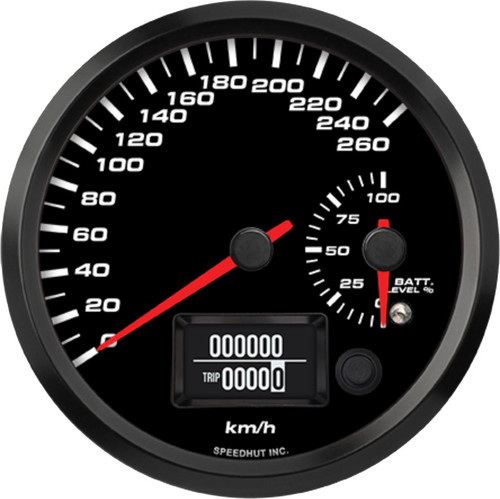

Enhance your electric vehicle's dashboard with the Speedhut 4-1/2" EV Orion 260km/h Speedom/BatLevel Gauge (FOR45-DS4-EV). This instrument provides a clear and precise display of your vehicle's speed and crucial battery information in a single, integrated unit. Designed for seamless compatibility with your EV's CAN-Bus system, this gauge delivers real-time data, allowing you to monitor your driving performance and battery status with confidence. The added low battery warning light provides an extra layer of safety, alerting you when your battery level reaches a critical point.
KEY FEATURES AND BENEFITS:
- Integrated Speed and Battery Monitoring: Combines a speedometer with a range of 0-260 km/h and a battery level/State of Charge (SOC) indicator ranging from 0-100%.
- CAN-Bus Connectivity: Utilizes the vehicle's CAN-Bus system (operating at a 500K baud rate) for accurate and direct readings of both speed and battery level, eliminating the need for external sensors for these functions.
- Enhanced Safety: Features a built-in warning light that illuminates when the battery's State of Charge falls below 15%, providing a timely alert to the driver.
- Metric Measurement: Displays speed in kilometers per hour (km/h), catering to a global standard.
- Optional Indicators: Supports the connection of optional 12-volt activated turn signal and high beam indicators for comprehensive vehicle information display.
- Easy Installation: Designed to fit a standard 4.230" (108mm) mounting hole.
- Complete Package: Ships with all necessary harnesses for installation, including an EV CAN Jumper Harness, a 3 ft Power & Lighting Harness, and an EV CAN Harness.
SPECIFICATIONS:
- Gauge Type: Speedometer and Battery Level/SOC
- Speed Range: 0-260 km/h
- Battery Level Range: 0-100%
- Size: 4 1/2 inch (114.3mm)
- Mounting Hole Size: 4.230" (108mm)
- Units: Metric (km/h)
- Signal Type: CAN-Bus (500K baud rate)
- Included: EV CAN Jumper Harness, 3 ft Power & Lighting Harness, EV CAN Harness
HOW TO USE:
- Preparation: Ensure your electric vehicle's CAN-Bus system is compatible with the gauge's 500K baud rate requirement. Gather the included harnesses and any necessary tools for dashboard modification and wiring.
- Mounting: Locate a suitable position on your dashboard and create a 4.230" (108mm) diameter hole for gauge installation. Secure the gauge in the opening using the provided mounting hardware (if applicable).
- CAN-Bus Connection: Connect the provided EV CAN Harness and EV CAN Jumper Harness to your vehicle's CAN-Bus system. Refer to your vehicle's wiring diagram for the correct CAN-Bus connections.
- Power and Lighting: Connect the 3 ft Power & Lighting Harness to a suitable power source and ground in your vehicle. This harness will also power the gauge's LED illumination.
- Optional Indicators (if desired): If you wish to use the optional turn signal and high beam indicators, connect the corresponding 12-volt activated signals from your vehicle to the designated wires on the gauge's wiring harness.
- Testing: Once all connections are made, carefully test the gauge by turning on your vehicle. Verify that the speedometer displays the correct speed and the battery level indicator shows the accurate State of Charge. Confirm that the low battery warning light illuminates when the battery level drops below 15%.
BENEFITS OF USING THE SPEEDHUT 4-1/2" EV ORION 260KM/H SPEEDOM/BATLEVEL GAUGE (FOR45-DS4-EV):
- Clear and Concise Information: Provides essential speed and battery data in an easy-to-read format, allowing for quick and effortless monitoring.
- Enhanced Awareness: Real-time battery level monitoring helps you plan your journeys more effectively and avoid unexpected power depletion.
- Increased Safety: The integrated low battery warning light alerts you to critical battery levels, giving you ample time to find a charging station.
- Seamless Integration: Designed to work directly with your EV's CAN-Bus system, ensuring accurate and reliable data without the need for additional sensors.
- Clean Installation: Combining two essential readings into one gauge reduces clutter on your dashboard and provides a more integrated look.
- Global Compatibility: The metric (km/h) display makes it suitable for use in various regions.
FEATURES:
- Dual display integration of speed and battery State of Charge.
- Reads speed and battery data directly from the CAN-Bus (500K baud rate).
- Low battery alert warning light activates at or below 15% SOC.
- Displays speed in kilometers per hour (km/h).
- Supports connection to 12V turn signal and high beam indicators.
- Comes with EV CAN and power/lighting harnesses for simplified setup.
- Standard 4.230" (108mm) mounting size for easy dashboard integration.
-
