Description

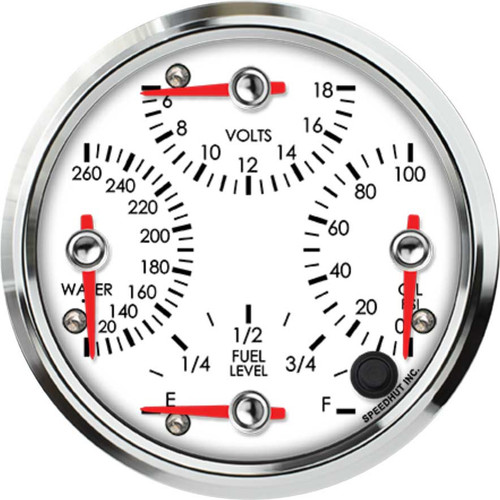

The Speedhut 4-1/2" Quad Fah WatTemp/Volt/Oil PSI/Fuel Level (R45-QG2-LEG) is a comprehensive instrument designed to provide drivers with a clear and concise overview of their vehicle's most critical operating parameters. This single, 4.5-inch gauge integrates the functionality of four essential monitoring devices: Water Temperature, Voltage, Oil Pressure, and Fuel Level. By consolidating these readings into one unit, the Speedhut Quad Gauge offers a space-saving and efficient solution for keeping track of your engine's health and fuel status. Engineered for accuracy and ease of installation, this gauge is a valuable addition to any vehicle where monitoring these vital signs is paramount.
KEY FEATURES AND BENEFITS:
- Four-in-One Monitoring: Displays Water Temperature (120-260 °F), Voltage (6-18V), Oil Pressure (0-100 PSI), and Fuel Level (E-F) in a single, easy-to-read gauge.
- Space-Saving Design: Consolidates four individual gauges into one 4-1/2 inch unit, freeing up valuable dashboard space.
- Clear and Direct Information: Provides essential vehicle data at a glance, allowing drivers to quickly assess critical operating conditions.
- Included Sensors and Harnesses: Comes complete with the necessary Temperature Sensor, Pressure Sensor, and corresponding wiring harnesses for straightforward installation.
- Easy Installation: Includes a gauge mounting ring for secure and simple mounting in a 4.20-inch (107mm) diameter hole.
- Versatile Fuel Level Compatibility: Designed to work with most standard fuel level sensors that have a resistance of 300 ohms or less (sensor not included).
- Integrated Warning Light: Features a built-in warning light for immediate notification of potential issues.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Voltage Range: 6-18 volts
- Water Temperature Range: 120-260 °F
- Fuel Level Range: E-F (compatible with fuel level sensors with 300 ohms or less resistance - not included)
- Oil Pressure Range: 0-100 psi
- Size: 4 1/2 inch
- Hole Size: 4.20 inch (107mm)
- Standard or Metric: Standard
- Warning Light: Yes
- Gauge Mounting Ring: Included
- Ships With:
- Speedhut Temperature Sensor
- 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
- Wiring Harness (2-Wire Cable)
- Pressure Sensor - 100 psi
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Temperature Gauge Wiring Harness (2-Wire Cable)
HOW TO USE:
- Mount the Gauge: Locate a suitable flat surface on your dashboard and drill a 4.20-inch (107mm) diameter hole. Insert the Speedhut Quad Gauge into the hole and secure it using the included gauge mounting ring from the back.
- Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Ensure the power and ground wires are correctly connected to your vehicle's electrical system. This harness also powers the LED lighting of the gauge.
- Install the Temperature Sensor: Mount the Speedhut Temperature Sensor in a suitable location on your engine to measure coolant temperature. Connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the sensor and the corresponding terminals on the back of the gauge.
- Install the Pressure Sensor: Mount the included Pressure Sensor (100 psi) to an appropriate port on your engine's oil system. Connect the Pressure Gauge Wiring Harness (3-Wire Cable) between the pressure sensor and the designated terminals on the back of the gauge.
- Connect the Fuel Level Sensor: Connect the Wiring Harness (2-Wire Cable) to your vehicle's existing fuel level sensor (must be 300 ohms or less resistance) and then to the corresponding terminals on the back of the gauge. Note: The fuel level sensor itself is not included.
- Verify Connections: Double-check all wiring connections to ensure they are secure and correct before starting your vehicle.
- Test the Gauge: Start your vehicle and observe the gauge readings to confirm that all four functions (Water Temperature, Voltage, Oil Pressure, and Fuel Level) are displaying correctly. The warning light will illuminate if any connected sensor detects a reading outside of normal operating parameters (depending on the specific warning light configuration).
BENEFITS OF USING THE SPEEDHUT 4-1/2" QUAD FAH WATTEMP/VOLT/OIL PSI/FUEL LEVEL (R45-QG2-LEG):
- Enhanced Awareness: Provides a constant and clear display of critical vehicle parameters, allowing drivers to identify potential issues early.
- Simplified Monitoring: Eliminates the need to scan multiple individual gauges, making it easier to monitor vital signs while driving.
- Clean Dashboard Aesthetics: Reduces clutter on your dashboard by integrating four gauges into a single, stylish unit.
- Straightforward Installation: The inclusion of necessary sensors and wiring harnesses simplifies the installation process.
- Broad Compatibility: The fuel level function is designed to work with a wide range of common fuel level sensors.
- Early Problem Detection: The integrated warning light can alert drivers to potential problems with temperature or pressure before they become severe.
FEATURES:
- Integrates readings for water temperature, voltage, oil pressure, and fuel level in one display.
- Operates within a voltage range of 6 to 18 volts.
- Monitors water temperature from 120 to 260 degrees Fahrenheit.
- Displays fuel level on an "Empty" to "Full" scale.
- Measures oil pressure from 0 to 100 pounds per square inch.
- Features a 4 1/2 inch diameter gauge face for easy visibility.
- Requires a 4.20 inch (107mm) diameter opening for mounting.
- Designed to work with standard (non-metric) units of measurement.
- Includes an indicator light to signal potential issues.
- Comes with a mounting ring for secure installation.
- Compatible with fuel level senders having a resistance of 300 ohms or less.
- Includes a dedicated temperature sensor for accurate readings.
- Comes with a 3-foot power and lighting harness for LED illumination.
- Includes a 2-wire wiring harness for general connections.
- Ships with a 100 PSI pressure sensor for oil pressure monitoring.
- Includes a 3-wire wiring harness specifically for the pressure gauge.
- Comes with a 2-wire wiring harness dedicated to the temperature gauge.
-
