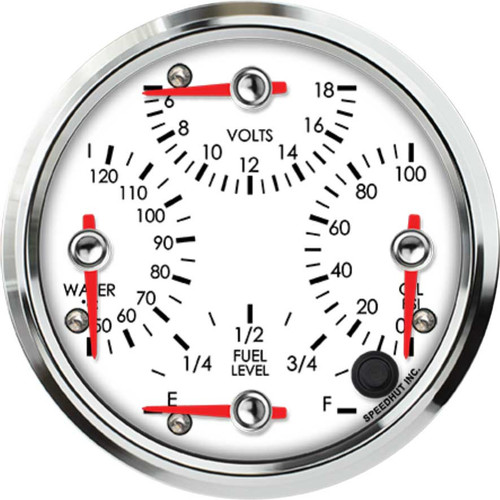

Speedhut 4-1/2" Quad Met WatTemp/Volt/Oil PSI/Fuel Level (R45-QG1-LEG) is an efficient solution for monitoring your vehicle's critical systems. This single, integrated gauge displays four essential readings: metric water temperature (50-125 degrees Celsius), voltage (6-18 volts), oil pressure (0-100 psi), and fuel level (Empty to Full). This consolidation saves dashboard space and provides a comprehensive overview at a glance. The gauge features a warning light for immediate alerts and is designed for straightforward installation using the included mounting ring. It comes with the necessary wiring harnesses and sensors for temperature and pressure, ensuring a more direct setup process. The fuel level display is compatible with most standard fuel level sensors with a resistance of 300 ohms or less, offering broad compatibility (though the sensor itself is not included).
KEY FEATURES AND BENEFITS:
- Displays four critical vehicle parameters: water temperature, voltage, oil pressure, and fuel level.
- Metric water temperature readings (50-125°C) provide precise monitoring for cooling systems.
- Voltage range (6-18V) ensures accurate monitoring of the electrical system.
- Oil pressure range (0-100 psi) helps ensure proper engine lubrication and health.
- Fuel level indicator shows readings from empty to full, aiding in fuel management.
- Warning light alerts drivers to potential system issues, promoting proactive maintenance.
- Easy installation with the included mounting ring and wiring harnesses for temperature, pressure, and power.
- Compatible with most fuel level sensors (300 ohms or less), offering flexible integration.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Voltage Range: 6-18 volts
- Water Temperature Range: 50-125 degrees Celsius
- Fuel Level Range: Empty (E) - Full (F)
- Oil Pressure Range: 0-100 psi
- Gauge Size: 4 1/2 inch
- Mounting Hole Size: 4.20 inch (107mm)
- Measurement Standard: Metric (for water temperature)
- Warning Light: Yes
- Gauge Mounting Ring: Included
- Fuel Level Signal Compatibility: 300 ohms or less (Most Fuel Level Sensors)
- Ships With: Temperature Gauge Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness for LED Lit Gauges and Clocks, Wiring Harness (2-Wire Cable), Speedhut Temperature Sensor, Pressure Sensor - 100 psi, Pressure Gauge Wiring Harness (3-Wire Cable)
HOW TO USE:
- Mount the Gauge: Locate a suitable 4.20-inch (107mm) diameter opening on your dashboard. Insert the Speedhut Quad Gauge into the opening and secure it using the included gauge mounting ring.
- Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Connect the power wire to a 12V power source (ignition-switched is recommended) and the ground wire to a suitable ground point on your vehicle's chassis. Connect the lighting wire to your vehicle's lighting circuit if you desire the gauge to illuminate with your other instruments.
- Connect Temperature Sensor: Install the included Speedhut Temperature Sensor in the appropriate location on your engine (e.g., coolant port). Connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the sensor and the corresponding terminals on the back of the gauge.
- Connect Pressure Sensor: Install the included 100 psi Pressure Sensor in the designated oil pressure port on your engine. Connect the Pressure Gauge Wiring Harness (3-Wire Cable) between the sensor and the corresponding terminals on the back of the gauge.
- Connect Fuel Level Signal: Connect the Wiring Harness (2-Wire Cable) to the fuel level output signal wire from your vehicle's fuel level sensor. Attach the other end to the fuel level input terminals on the back of the gauge. Note: Ensure your fuel level sensor has a resistance of 300 ohms or less.
- Verify Connections: Double-check all wiring connections to ensure they are secure and correctly placed.
- Test the Gauge: Start your vehicle and observe the gauge readings to confirm proper functionality of all four displays (water temperature, voltage, oil pressure, and fuel level). Calibrate the fuel level reading if necessary (refer to Speedhut's documentation for calibration procedures).
BENEFITS OF USING THE SPEEDHUT 4-1/2" QUAD MET WATTEMP/VOLT/OIL PSI/FUEL LEVEL (R45-QG1-LEG):
- Space-efficient way to monitor four critical vehicle parameters in a single, easy-to-read instrument.
- Reduces clutter on your dashboard by consolidating four gauges into one unit.
- Includes essential sensors and wiring, simplifying the installation process.
- Provides comprehensive monitoring of engine health and fuel status with clear metric water temperature, voltage, oil pressure, and fuel level readings.
- Integrated warning light offers an immediate visual cue for potential issues, enabling proactive maintenance.
- Compatible with most standard fuel level sensors, offering flexibility for various vehicle setups.
FEATURES:
- Four-in-One Display: Presents water temperature, voltage, oil pressure, and fuel level simultaneously.
- Metric Temperature Reading: Provides temperature in degrees Celsius for precise monitoring.
- Direct Voltage Monitoring: Offers real-time insight into the vehicle's electrical system.
- Clear Oil Pressure Indication: Displays engine oil pressure up to 100 psi.
- Intuitive Fuel Level Display: Shows fuel level from Empty to Full.
- Integrated Warning Indicator: Alerts the driver to potential problems.
- Simplified Mounting: Installs easily with the included spin-lock ring.
- Included Wiring Harnesses: Comes with specific harnesses for each sensor and power.
- Shipped with Sensors: Includes a temperature sensor and a 100 psi pressure sensor.
- Broad Fuel Level Compatibility: Designed to work with most fuel level senders (≤ 300 ohms).
-
