Description

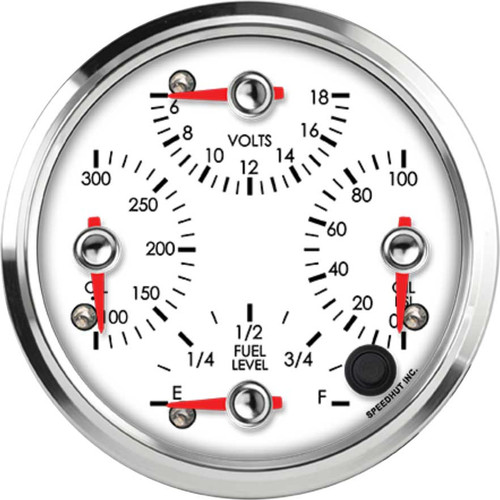

The Speedhut 4" Quad Oil Temp/Volt/Oil PSI/Fuel Level Gauge (R4-QG4-LEG) is a comprehensive instrument designed to provide a consolidated and clear view of your vehicle's most critical operating parameters. This 4-in-1 gauge integrates readings for oil temperature, voltage, oil pressure, and fuel level into a single, space-saving 4-inch unit. Engineered for accuracy and ease of installation, it offers drivers a complete overview of their engine's health and fuel status at a glance.
KEY FEATURES AND BENEFITS:
- Four-in-One Monitoring: Combines oil temperature, voltage, oil pressure, and fuel level readings, reducing dashboard clutter.
- Comprehensive Data: Provides essential information for maintaining optimal vehicle performance and preventing potential issues.
- Included Sensors: Comes with a 100 PSI pressure sensor and a Speedhut temperature sensor, ensuring compatibility and accurate readings for these vital parameters.
- Wiring Included: Ships with all necessary wiring harnesses for temperature, pressure, and power/lighting, simplifying the installation process.
- Mounting Hardware: Includes a gauge mounting ring for secure and straightforward installation into a standard 3.93-inch (100mm) hole.
- Warning Light: Features an integrated warning light to alert the driver to potential problems.
- Fuel Level Compatibility: Designed to work with most fuel level sensors that have a resistance of 300 ohms or less.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Voltage Range: 6-18 volts
- Oil Pressure Range: 0-100 psi
- Fuel Level Range: Empty (E) to Full (F)
- Oil Temperature Range: 100-300 °F
- Size: 4 inch
- Hole Size: 3.93 inch (100mm)
- Units: Standard
- Warning Light: Yes
- Fuel Level Signal Compatibility: 300 ohms or less
- Ships With:
- Temperature Gauge Wiring Harness (2-Wire Cable)
- Wiring Harness (2-Wire Cable)
- Pressure Sensor - 100 psi
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Speedhut Temperature Sensor
- 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
- Gauge Mounting Ring
HOW TO USE:
- Mount the Gauge: Locate a suitable 4-inch (100mm) diameter opening on your dashboard. Secure the gauge using the included mounting ring.
- Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the gauge. Connect the power wire to a switched 12V source and the ground wire to a suitable ground point. Connect the lighting wire to your vehicle's lighting circuit if desired.
- Install the Temperature Sensor: Mount the provided Speedhut temperature sensor in the appropriate location on your engine to monitor oil temperature. Connect the Temperature Gauge Wiring Harness to the sensor and then to the gauge.
- Install the Pressure Sensor: Mount the included 100 PSI pressure sensor to the oil pressure port on your engine. Connect the Pressure Gauge Wiring Harness to the sensor and then to the gauge.
- Connect the Voltage Wiring: Use the 2-Wire Wiring Harness to connect to a reliable voltage source in your vehicle.
- Connect the Fuel Level Wiring: Connect the appropriate wires from your existing fuel level sensor (or a new sensor with 300 ohms or less resistance) to the designated terminals on the gauge using a suitable wiring method. Note: Ensure compatibility with your specific fuel level sensor.
- Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
- Test the Gauge: Start your vehicle and observe the gauge readings to ensure all parameters are displaying correctly. Calibrate the fuel level reading if necessary for your specific sensor.
BENEFITS OF USING THE SPEEDHUT 4" QUAD OIL TEMP/VOLT/OIL PSI/FUEL LEVEL GAUGE (R4-QG4-LEG):
- Provides a centralized display of four critical vehicle measurements, enhancing driver awareness.
- Simplifies monitoring of essential engine parameters, aiding in early detection of potential problems.
- Reduces dashboard clutter by combining multiple gauges into a single, clean unit.
- Offers accurate readings for oil temperature and pressure thanks to the included, matched sensors.
- Facilitates easier installation with included wiring harnesses and mounting hardware.
- Offers a visual warning system through the integrated warning light.
- Allows for monitoring of fuel level, preventing unexpected fuel depletion.
FEATURES:
- Integrates oil temperature, voltage, oil pressure, and fuel level readings in one 4-inch instrument.
- Operates within a 6-18 volt range, suitable for various vehicle electrical systems.
- Displays oil pressure from 0 to 100 PSI for precise monitoring.
- Indicates fuel level from Empty to Full, compatible with resistive sensors up to 300 ohms.
- Monitors oil temperature in the 100 to 300 degrees Fahrenheit range.
- Requires a standard 3.93-inch (100mm) mounting hole for straightforward installation.
- Presents readings in standard units (PSI and Fahrenheit) for easy interpretation.
- Includes a dedicated warning light for immediate alerts.
- Comes with specific wiring harnesses tailored for temperature and pressure sensors.
- Features a robust pressure sensor capable of measuring up to 100 PSI.
- Includes a Speedhut-engineered temperature sensor for accurate oil temperature readings.
- Supplied with a 3-foot power and lighting harness for convenient electrical connections.
- Secures easily with the provided gauge mounting ring.
-
