Description

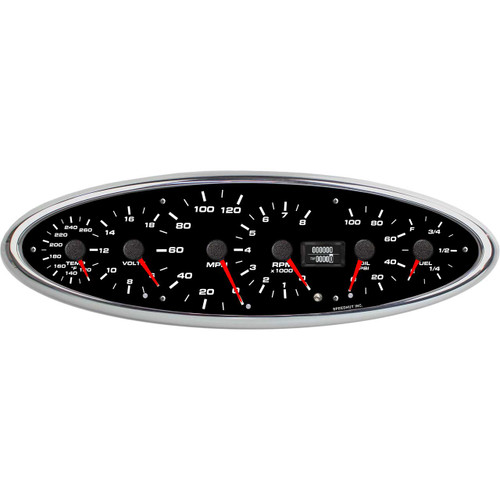

The Speedhut Legends ICON 6-in-1 Cluster (LG-ICO-06) provides a comprehensive solution for monitoring your vehicle's most critical systems. This integrated gauge unit combines six essential readings into a single, stylish display from the renowned Legends ICON series. Designed with a unique "Other" size specification, this cluster offers a distinct aesthetic while providing accurate and reliable data in standard (imperial) units. Keep a close watch on your speed, engine RPM, oil pressure, water temperature, fuel level, and battery voltage, all in one convenient location.
KEY FEATURES AND BENEFITS:
- 6-in-1 Functionality: Combines speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter into one display.
- Legends ICON Aesthetic: Features a design consistent with the Legends ICON series for unique styling.
- Unique Fitment: Offers a distinct "Other" size specification for custom applications.
- Standard Units: Displays data in imperial units (MPH, PSI, °F, etc.) for easy understanding.
- Complete Installation Kit: Includes necessary wiring harnesses and sensors such as temperature sensor, 100 PSI pressure sensor, and GPS antenna if applicable.
- Reliable Build: Constructed with durability in mind to ensure consistent performance.
SPECIFICATIONS:
- SKU: LG-ICO-06
- Gauge Type: Icon Cluster
- Size: Other
- Units: Standard (MPH, PSI, °F, etc.)
- Included: Wiring Harness (2-Wire Cable), Temperature Gauge Wiring Harness (2-Wire Cable), Speedhut Temperature Sensor, Pressure Gauge Wiring Harness (3-Wire Cable), Pressure Sensor - 100 PSI, 8 ft Wiring Harness (1 Wire 3 Pin Connector) (for AFWB and EL Lit Gauges Only), GPS Antenna with 9.8 ft long cable and male SMA connector (if speedometer is GPS-based)
HOW TO USE:
- Mount the Cluster: Secure the Speedhut Legends ICON 6-in-1 Cluster in your desired location using the provided mounting hardware.
- Connect Power and Ground: Attach the main power and ground wires from the cluster's wiring harness to your vehicle's electrical system.
- Connect Sensors: Connect the provided temperature sensor, pressure sensor, and fuel level sender wires to the corresponding inputs on the cluster's wiring harness.
- Connect Tachometer Signal: Connect the tachometer signal wire to the appropriate output from your vehicle's ignition system or ECU.
- Connect Lighting (Optional): If desired, connect the illumination wire to your vehicle's lighting circuit for dimming functionality.
- Connect GPS Antenna (If Applicable): Mount the GPS antenna in a location with a clear view of the sky and connect it to the cluster.
- Calibrate (If Necessary): Follow the manufacturer's instructions to calibrate the tachometer (pulses per revolution) and fuel level gauge to your specific vehicle components.
BENEFITS OF USING THE SPEEDHUT LEGENDS ICON 6-IN-1 CLUSTER (LG-ICO-06):
- Centralized monitoring of speed, RPM, pressure, temperature, fuel level, and voltage for easy access to vital data.
- Improves driving awareness by providing real-time vehicle condition updates.
- Enables early detection of potential issues to enhance safety and performance.
- Distinct Legends ICON design enhances vehicle interior aesthetics.
- Unique "Other" size accommodates custom dashboard layouts.
FEATURES:
- Combines six essential gauges into one streamlined unit.
- Displays readings in imperial units for user-friendly interpretation.
- Offers a unique "Other" size for customized installations.
- Includes temperature and pressure sensors for comprehensive monitoring.
- May include GPS-based speedometer with antenna for precision tracking.
- Reflects the signature styling of the Legends ICON series.
- Comes with necessary wiring harnesses for easy installation.
-
