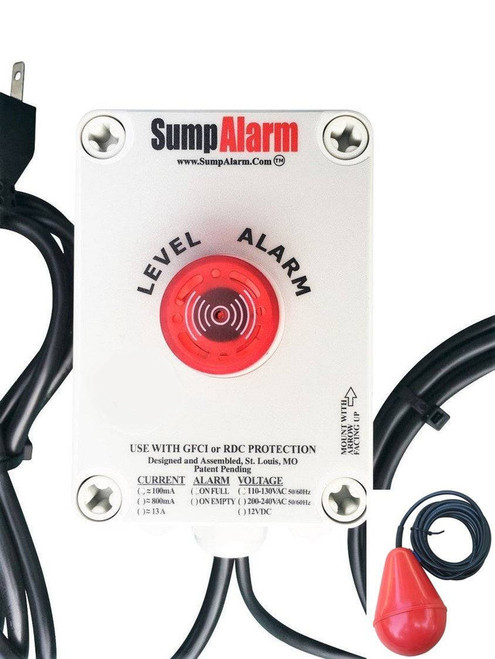

Sump Alarm 120V 100' SludgeBoss High Water Alarm (SA-120V-1L-100SB)

The Sump Alarm 120V 100' SludgeBoss High Water Alarm (SA-120V-1L-100SB) is a dependable system designed to provide immediate notification when liquid levels in various applications reach a critical high point. This essential device offers both visual and audible alerts, ensuring timely awareness of potential issues such as pump failure in sump pits, overflowing septic tanks, or high water in lift stations and water tanks. Engineered for both indoor and outdoor use, its straightforward installation makes it a crucial component for safeguarding your property and preventing potential damage.

KEY FEATURES AND BENEFITS:

• Early Warning System: Provides immediate visual (flashing red LED) and audible (90dB horn) alerts when liquid levels exceed a safe threshold, allowing for prompt intervention.
• Versatile Application: Suitable for a wide range of environments, including septic systems, water tanks, lift stations, low-density oil containment, and sewage water management.
• Robust Float Switch: Equipped with a 100-foot non-tethered SludgeBoss float switch specifically designed to operate reliably in challenging, sludge-filled environments. Its self-orienting design ensures consistent performance.
• Simple Installation: Ready to operate right out of the box with a 6-foot, 3-prong grounded plug. Includes mounting holes, feet, wall anchors, hardware, and wire ties to simplify the setup process.
• Durable Construction: Built to withstand various conditions with an operating temperature range of -40°F to 140°F.
• Remote Monitoring Potential: Enables monitoring of outdoor systems from indoors, providing convenience and peace of mind.
• Mercury-Free and Reliable Float: The float switch is mercury-free and rated for 100,000 operations, ensuring long-term, environmentally conscious performance.
• Configurable Alarm Level: While set for high-level alarm by default, the wiring can be reversed to function as a low-level alarm, offering adaptability for different monitoring needs.

SPECIFICATIONS:

• Power Input: 120V AC
• Power Cord Length: 6 Feet
• Float Switch Cord Length: 100 Feet
• Alarm Type: Visual (Flashing Red LED - 1 inch) and Audible (90dB Horn)
• Float Switch Type: Non-Tethered SludgeBoss with Self-Orienting Design
• Float Switch Rating: 100,000 Operations
• Operating Temperature: -40°F to 140°F
• Mounting: Rear Mounting Holes, Mounting Feet
• Plug Type: 3-Prong Grounded

HOW TO USE:

• Position the Float: Carefully place the SludgeBoss float switch within the sump pit, tank, or basin at the desired high-water alarm level. Ensure the float can move freely without obstruction. Use the provided wire ties if needed to secure the float cable.
• Mount the Head Unit: Choose a suitable indoor or outdoor location for the alarm head unit where the visual and audible alerts can be easily noticed. Use the provided mounting feet for surface placement or utilize the rear mounting holes with the included wall anchors and hardware for wall mounting.
• Plug in the Alarm: Connect the 6-foot, 3-prong grounded power cord of the alarm head unit into a standard 120V AC power outlet.
• Test the Alarm: Manually raise the float switch to simulate a high-water level. The red LED indicator light should begin flashing, and the 90dB horn should sound. Lower the float to confirm the alarm stops.
• Optional Low-Level Alarm Configuration: If a low-level alarm function is required, refer to the product instructions for guidance on reversing the wiring. This typically involves adjusting the connections within the alarm head unit.

BENEFITS OF USING THE SUMP ALARM 120V 100' SLUDGEBOSS HIGH WATER ALARM (SA-120V-1L-100SB):

• Prevents Costly Damage: Early detection of high water levels allows for timely intervention, potentially preventing flooding, sewage backups, and damage to property and equipment.
• Ensures System Uptime: By alerting you to potential pump failures or blockages, the alarm helps maintain the continuous operation of critical systems like sump pumps and lift stations.
• Provides Peace of Mind: Knowing that your systems are being monitored provides reassurance, especially for unattended or remote locations.
• Simple and Reliable Operation: The straightforward installation and robust design of the SludgeBoss float ensure consistent and dependable performance.
• Versatile Application Across Multiple Systems: Its suitability for various liquid types and environments makes it a valuable monitoring solution for diverse needs.
• Enhanced Safety: The audible and visual alerts ensure that high-water conditions are promptly recognized, allowing for quick action to mitigate potential hazards.

FEATURES:

• Bright 1-inch Flashing Red LED Indicator: Offers high visibility of alarm status, even from a distance.
• Loud 90 Decibel Horn: Provides a clear and unmistakable audible alert in noisy environments.
• 100-Foot Non-Tethered SludgeBoss Float: Specifically engineered for reliable operation in sewage and sludge.
• Self-Orienting Float Design: Ensures consistent and accurate level detection.
• Durable Polycarbonate Housing: Offers protection against environmental elements.
• Wide Operating Temperature Range: Functions reliably in extreme hot and cold conditions.
• Included Mounting Hardware: Simplifies the installation process for various mounting surfaces.
• Can be Configured for Low-Level Alarm: Offers flexibility for different monitoring requirements.
• Suitable for Indoor and Outdoor Use: Provides versatile install
