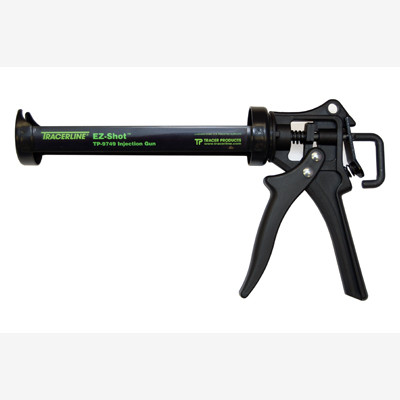

Tracerline EZ-Shot Caulking Gun-Style Dye Injector Assembly (TP9749)

The Tracerline EZ-Shot Caulking Gun-Style Dye Injector Assembly (TP9749) is an essential tool for professional automotive technicians performing A/C system leak detection. This injector assembly is specifically designed to provide a fast, clean, and efficient method for introducing fluorescent leak detection dye into a vehicle's air conditioning system. Its intuitive caulking gun-style operation makes dye insertion simple, ensuring precise dosing from Tracerline's "BigEZ™" dye cartridges. Crafted from steel, the TP9749 is built for consistent performance in a professional shop environment, making leak diagnosis quicker and more reliable.

KEY FEATURES AND BENEFITS:

• Effortless Dye Injection: The unique caulking gun-style design allows for quick and easy insertion of fluorescent leak detection dye, significantly speeding up the A/C service process.
• Optimized for BigEZ™ Cartridges: Specifically engineered to work seamlessly with Tracerline's 8 oz (237 ml) "BigEZ™" multi-dose dye cartridges, enabling multiple service applications without frequent cartridge changes.
• Versatile System Compatibility: When used as part of a complete kit, this injector supports dye injection into R-134a and R-1234yf A/C systems, offering broad applicability across different vehicle models.
• Professional-Grade Construction: Made from steel, the injector assembly is designed to withstand the demands of professional shop use, providing reliable and long-lasting performance.
• Accurate Leak Identification: By precisely injecting fluorescent dye, it enables technicians to accurately pinpoint even the smallest refrigerant leaks, improving repair efficiency and customer satisfaction.

SPECIFICATIONS:

• Material: Steel
• Compatibility: Designed for use with Tracerline 8 oz (237 ml) BigEZ™ dye cartridges.
• Included in Product when purchased: TP9749 EZ-Shot™ caulking gun-style dye injector assembly. (Note: Hoses, couplers, adapters, and dye cartridges are typically sold separately or as part of complete kits like the TP9790-BX).

HOW TO USE:

1. Prepare the Injector: Unscrew the cap from the Tracerline EZ-Shot TP9749 injector assembly.
2. Load Dye Cartridge: Insert a compatible 8 oz (237 ml) Tracerline BigEZ™ dye cartridge into the injector body, ensuring it is seated correctly.
3. Attach Hose (If applicable): If not already assembled, attach the appropriate A/C system hose and coupler (e.g., R-134a or R-1234yf) to the injector.
4. Connect to A/C System: Connect the hose/coupler to the vehicle's low-side service port of the A/C system. Ensure a secure connection.
5. Inject Dye: Squeeze the trigger of the injector handle to dispense the fluorescent dye into the A/C system. Continue until the recommended amount of dye has been injected for the system's capacity.
6. Disconnect and Cap: Once dye injection is complete, disconnect the hose/coupler from the A/C service port and replace any protective caps on the injector and service port.
7. Run System: Allow the A/C system to run for a period (as specified by dye instructions, usually 5–20 minutes) to allow the dye to circulate and mix with the refrigerant.
8. Inspect for Leaks: Use a UV leak detection lamp to scan the A/C components for glowing fluorescent dye, indicating leak points.

BENEFITS OF USING TRACERLINE EZ-SHOT CAULKING GUN-STYLE DYE INJECTOR ASSEMBLY (TP9749):

• Streamlines Leak Detection: Makes the process faster and less labor-intensive.
• Precise and Consistent Delivery: Ensures accurate dye injection every time.
• Minimizes Mess: Reduces spills and waste common with other dye injection methods.
• Improves Diagnostic Efficiency: Enhances the speed and accuracy of A/C system repairs.
• Professional Tool: A valuable asset for technicians handling regular A/C servicing tasks.
• Supports Preventive Maintenance: Dye remains in the system for ongoing leak detection.

FEATURES:

• Built-in check valve ensures controlled, clean dye flow.
• Comfort-grip trigger provides ergonomic, smooth operation.
• Quick-connect design allows fast setup and takedown.
• Leak-proof mechanism reduces waste and contamination.
• Durable, corrosion-resistant construction for extended service life.
• Simple maintenance routine keeps tool ready for repeated use.
