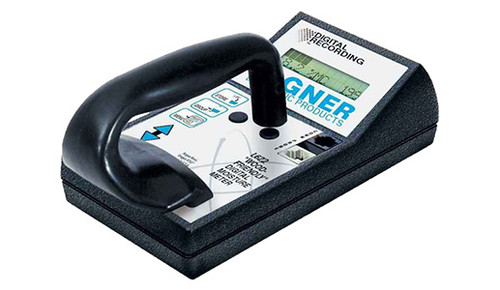

Wagner Meters L622 Meter Kit (GB, FIN, NOR, SWE) (890-62201-002)

The Wagner Meters L622 Meter Kit (GB, FIN, NOR, SWE) (890-62201-002) is a comprehensive solution designed for professionals who require precise and reliable moisture content measurements in wood. Manufactured by Wagner Meters, this kit combines the advanced L622 Digital Recording Moisture Meter with the practical L722 Lumber Stack Probe, offering a versatile tool for various applications, particularly in industrial settings. The L622 meter stands out as the most feature-rich in the L600 series, boasting the capability to store over 5000 readings and connect to PC-based reporting software for in-depth data analysis. Its robust design, coupled with a larger scanner plate and ergonomic handle, makes it ideal for demanding environments where efficiency is key. The meter provides accurate readings for lumber and wood products ranging from 1 to 4 inches in thickness, ensuring suitability for a wide range of materials.

KEY FEATURES AND BENEFITS:

• Accurate Moisture Measurement: Measures moisture content in wood from 5% to 30%, ensuring precise readings for quality control.
• Extensive Data Storage: Stores over 5000 individual readings in up to 200 organized groups, facilitating comprehensive data tracking and analysis.
• PC-Based Reporting Software: Includes Stat Pak software for downloading, analyzing, and reporting moisture data on a computer, enabling detailed record-keeping.
• Lumber Stack Probe: The L722 probe allows for moisture measurements deep inside stacks of lumber, crucial for identifying internal moisture variations.
• Industrial Durability: Designed to withstand harsh industrial environments, featuring a robust build and ergonomic handle for comfortable and efficient use.
• Deeper Reading Capability: Suitable for measuring moisture in lumber and wood products with thicknesses ranging from 1 to 4 inches.
• True Moisture Reading: Measures the moisture content within the wood, unaffected by surface moisture, providing more reliable results.
• Customizable Species Settings: Comes with 32 user-selectable wood species settings, which can be further customized to improve measurement accuracy for specific wood types.
• Easy Data Management: Built-in real-time clock and calendar stamps readings for accurate record-keeping.
• Nonvolatile Memory: Retains stored readings even when batteries are removed or changed, preventing data loss.
• User-Friendly Interface: Features a backlit LCD screen and intuitive menu navigation for easy operation.
• Calibration Verification: Includes a Calibration Verification Block (CVB) for users to easily check the meter’s factory calibration.

SPECIFICATIONS:

• Moisture Content Range: 5% to 30%
• Reading Depth: Up to 1 inch (L622 Meter)
• Lumber Thickness Range: 1 inch to 4 inches (L622 Meter)
• Data Storage Capacity: Over 5000 readings
• Number of Groups: Up to 200
• Wood Species Settings: 32 user-selectable and customizable
• Display: Backlit LCD, 2-line, 32-character
• Power Source: Battery (type not specified in provided text, assumed to be standard batteries)
• Battery Life: Approximately 50 hours of continuous use (less with backlight)
• Operating Temperature: 30-120 degrees Fahrenheit
• Connectivity: USB-RJ11 port for computer data download
• Warranty: 1 year
• Included Accessories: L622 Digital Recording Moisture Meter, L722 Lumber Stack Probe (available in 40-inch and 26-inch lengths), Stat Pak Software, USB-RJ11 cord, Calibration Verification Block (CVB)
• Languages: English (GB), Finnish (FIN), Norwegian (NOR), Swedish (SWE)

HOW TO USE:

• Preparation: Ensure the L622 meter has sufficient battery power. Turn on the meter using the power button.
• Species Selection: Use the function buttons and scroll arrows to navigate the menu and select the appropriate wood species setting for the material being tested. You can choose from the 32 pre-set species or select a custom setting if you have programmed one.
• Calibration Check (Optional): Use the included Calibration Verification Block (CVB) to check if the meter is reading within the expected range. Follow the instructions provided with the CVB.
• Surface Measurement (with L622 Meter): Place the scanner plate of the L622 meter firmly on the surface of the wood. Ensure good contact for an accurate reading. The moisture content will be displayed on the LCD screen.
• Internal Measurement (with L722 Probe):
  • Connect the L722 Lumber Stack Probe to the L622 meter.
  • Insert the probe into the lumber stack at the desired depth. Ensure the probe makes good contact with the wood.
  • The moisture content will be displayed on the LCD screen of the L622 meter.
• Storing Readings (Optional): To store a reading, navigate to the storage option in the menu and select a group to save the reading under. The meter will also record the date and time.
• Downloading Data: Connect the L622 meter to your computer using the provided USB-RJ11 cord. Use the Stat Pak software to download the stored readings.
• Analyzing Data: Use the Stat Pak software to analyze the downloaded data, generate reports, and compare readings.
• Maintenance: Keep the scanner plate and probe of the meter clean and free from debris. Store the meter in a safe and dry place when not in use.

BENEFITS OF USING THE WAGNER METERS L622 METER KIT (GB, FIN, NOR, SWE) (890-62201-002):

• Improved Quality Control: Enables precise monitoring of moisture content, leading to higher quality lumber and wood products.
• Reduced Waste: Accurate moisture readings help prevent issues like warping, cracking, and fungal growth, minimizing material waste.
• Increased Efficiency: The ability to take quick and accurate readings, along with data storage and reporting features, streamlines the moisture measurement process.
• Cost Savings: By preventing moisture-related problems and optimizing production processes, the kit contributes to significant cost savings in the long run.
• Comprehensive Measurement: The combination of the L622 meter and the L722 probe provides a complete solution for measuring moisture both on the surface and within lumber stacks.
• Compliance with Standards: Helps meet stringent moisture quality control requirements and ensures consistent lumber production processes.
• Ease of Use: The user-friendly interface and clear display make the kit easy to operate, even for users with limited experience.
• Reliable Performance: Wagner Meters is known for producing high-quality and reliable moisture measurement tools, ensuring consistent and accurate results.

FEATURES:

• Large Scanner Plate: Facilitates faster scanning of wood surfaces.
• Ergonomic Handle: Provides comfortable handling during extended use.
• Surface Moisture Insensitivity: Provides accurate readings regardless of surface moisture.
• User-Selectable Species Settings: Offers flexibility for measuring various wood types accurately.
• Stat Pak Software Included: Enables detailed data analysis and reporting on a PC.
• Real-Time Clock/Calendar: Stamps readings with the date and time for accurate record-keeping.
• Nonvolatile Memory: Securely stores readings even when batteries are changed.
• Low Battery Indication: Alerts the user when battery replacement is needed.
• Auto Shut-Off: Conserves battery life by automatically turning off after a period of inactivity.
• Durable Probe Design: The L722 probe is built to withstand the demands of mill environments.
• Detachable Probe Head: Allows for easy servicing of the L722 probe.
