Description

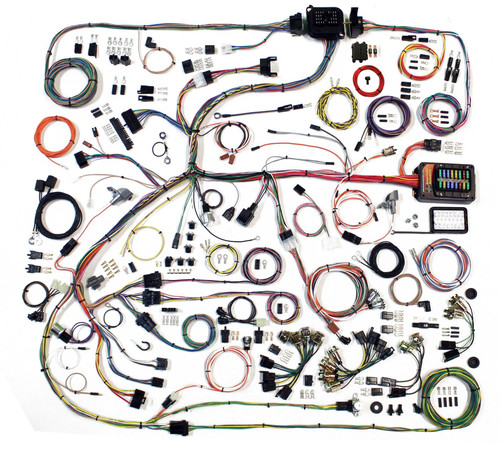

The American Autowire 1968-70 Mopar B Body Classic Update Kit (AAW510634) is a comprehensive wiring solution for a full vehicle rewire. It modernizes your classic Mopar's electrical system, providing additional circuits and features to support popular modifications and aftermarket accessories while ensuring a reliable and organized electrical foundation.
KEY FEATURES AND BENEFITS:
- Accommodates Modern Upgrades: Supports EFI, aftermarket gauges, air conditioning, and power accessories with additional circuits beyond the original harness.
- Simplified Installation: Modern GXL wires labeled every 3-5 inches simplify installation and troubleshooting.
- Modern Fuse Panel: Updated ATO/ATC fuse panel with more circuits, designed to fit stock location with a template for minor firewall modifications.
- Enhanced Power and Charging Support: Includes a 175-amp mega fuse kit with 6-gauge charge cable for high-output alternators.
- Complete and Comprehensive: Provides pre-built dash, engine/front light, and rear body harnesses for a full vehicle rewire.
SPECIFICATIONS:
- Wire Type: GXL wire
- Fuse Type: ATO/ATC style
- Included Components:
- New ATO/ATC fuse panel
- Pre-built dash harness with gauge cluster disconnect system
- Engine and front light harness
- Rear body wiring harness
- 175-amp mega fuse kit with 6-gauge charge cable
- New headlight switch with internal circuit breaker
- New floor dimmer switch
- Original-style connectors and terminals
- Steering column adapter kit
- Correct original replacement printed circuit board connector
HOW TO USE:
- Preparation: Disconnect the battery and remove the old wiring harness.
- Fuse Panel Installation: Install the new ATO/ATC fuse panel in the stock location using the provided template for any firewall modifications.
- Harness Routing: Route the dash, engine, and rear body harnesses through the vehicle; extra-long leads allow flexible routing.
- Connect to Components: Use labeled wires and connectors to hook up headlights, taillights, engine sensors, gauges, and accessories.
- Steering Column Integration: Connect the harness to your stock or aftermarket steering column using the included adapter kit.
- Power Up: Install headlight switch, dimmer switch, and charging system components. Reconnect the battery and test the electrical system.
BENEFITS OF USING AMERICAN AUTOWIRE 1968-70 MOPAR B BODY CLASSIC UPDATE KIT (AAW510634):
- Safety and Reliability: Replaces old wiring prone to shorts and failures with a safer, robust system.
- Accommodates Growth: Extra circuits support future modifications and upgrades without adding separate wiring.
- Simplified Troubleshooting: Labeled wires make diagnosing electrical issues much easier.
- Professional Finish: Correct original-style connectors and modern fuse panel result in a clean, organized installation.
- Time-Saving: Pre-built harnesses and detailed instructions reduce complexity compared to building a custom harness.
FEATURES:
- Pre-built dash, engine, and rear body harnesses for a complete vehicle rewire.
- Unique "cluster harness disconnect" system for easy instrument cluster service.
- Extra-long wire leads for flexible factory or custom routing.
- New headlight switch with integrated circuit breaker.
- Includes horn relay, standard turn signal flasher, and hazard flasher mounted remotely on the harness.
- Provides a switched trigger wire for custom electric fan relay.
- Six-way power accessory plug for convenient power access.
- Connectors for both original points-type and GM H.E.I. distributors.
-
