Description

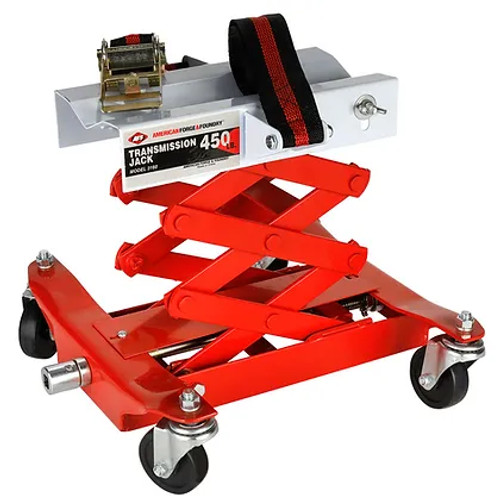

The American Forge & Foundry 450-lb Capacity Transmission Jack (3160) is a reliable light-duty transmission jack, expertly engineered to assist with the removal and installation of transmissions and gas tanks on smaller vehicles. Its design prioritizes stability, precision, and ease of use, making it an indispensable tool for both professional automotive shops and serious home mechanics. Built from high-grade steel, this jack offers maximum strength and dependable performance under various working conditions. The thoughtful inclusion of an adjustable saddle and a nylon safety strap ensures that components are securely supported and precisely positioned, facilitating efficient and safe repair operations. Maneuvering the jack around the workshop is effortless, thanks to its professional-grade swivel casters, allowing for smooth transitions and optimal placement under a vehicle or lift. The AFF 3160 adheres to stringent safety standards, providing peace of mind during demanding tasks. This versatile tool is an essential asset for any environment focused on maintaining and servicing light-duty vehicles.
KEY FEATURES AND BENEFITS:
- Adjustable Saddle: Features a large, adjustable saddle that can be tilted forward, backward, and side-to-side, providing exceptional flexibility for precise positioning and alignment of transmissions and gas tanks. This adjustability significantly reduces the effort required during component installation and removal.
- Secure Load Management: Includes a robust nylon safety strap designed to securely hold the load in place, preventing accidental shifts or falls during operation and enhancing overall safety.
- Effortless Mobility: Equipped with professional-grade swivel casters that allow for smooth and easy movement across various shop floor surfaces, enabling quick and accurate positioning under vehicles or lifts without strain.
- High-Grade Steel Construction: Manufactured from premium, high-grade steel, ensuring maximum strength and stability for consistent, reliable performance over time. This construction contributes to the jack's longevity and ability to withstand rigorous use.
- Versatile Operation: Designed to be operated manually with a 1/2-inch drive ratchet or can be used with a 1/2-inch air impact tool for increased speed and efficiency (tools not included).
SPECIFICATIONS:
- Capacity: 450 lbs. (.225 Ton)
- Low Height: 7.5 inches
- High Height: 23.2 inches
- Base Length: 16.5 inches
- Base Width: 17.7 inches
- Forward Tilt: 5 degrees
- Saddle Dimensions: 13" x 6.7" x 2.5"
- Wheel Diameter (Front): 3 inches
- Wheel Diameter (Rear): 3 inches
- Weight: 43 lbs. (18 kg)
- Duty Level: Standard Duty
- Standards: ASME PASE 2019 Safety Standard
- Included in product when purchased: Transmission Jack (Model 3160) with adjustable saddle and nylon safety strap.
HOW TO USE:
- Prepare the Vehicle: Ensure the vehicle is properly supported on a lift or sturdy jack stands, and that the transmission or gas tank is accessible for removal or installation.
- Position the Jack: Roll the AFF 3160 transmission jack to the desired location directly beneath the component.
- Adjust the Saddle: Use the adjustable saddle mechanism to align the saddle with the transmission or gas tank. Tilt the saddle forward, backward, or side-to-side as needed for optimal contact and balance.
- Lift the Component: Insert a 1/2-inch drive ratchet or attach a 1/2-inch air impact tool (not included) to the jack's operation mechanism. Rotate or activate the tool to raise the saddle until it firmly supports the component.
- Secure the Load: Once the component is supported, fasten the provided nylon safety strap securely around both the component and the jack's saddle to prevent any movement or slippage.
- Lower/Raise: Carefully lower the component (for removal) or raise it into position (for installation) by operating the jack's mechanism slowly and controlled.
- Finalize: After the component is removed or installed, carefully release the safety strap, lower the saddle, and roll the jack away from the work area.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 450-LB CAPACITY TRANSMISSION JACK (3160):
- Safer Component Handling: Facilitates safer handling of heavy or awkward automotive components like transmissions and gas tanks.
- Efficient Alignment: Improves work efficiency by allowing precise alignment and hands-free support during installation and removal processes.
- Reduced Strain: Reduces physical strain and potential injuries associated with manual lifting and positioning of vehicle parts.
- Workshop Productivity: Enhances workshop productivity through quick and easy maneuverability and setup.
- Secure Support: Provides a stable and secure platform for components, minimizing the risk of damage to parts or the vehicle.
- Safety Compliance: Offers compliance with industry safety standards, promoting a secure working environment.
FEATURES:
- Screw-driven lift mechanism for controlled height adjustment.
- Low-profile design for access under various vehicle types.
- Robust steel frame construction for lasting performance.
- Four independent swivel casters for omni-directional movement.
- Integrated handles for easy transport and positioning.
- Component support head designed for universal fitment with various transmission types.
- Corrosion-resistant finish for extended tool life.
- Manual operation capability with common shop tools.
- Compact footprint for convenient storage.
-
