Description
Details:

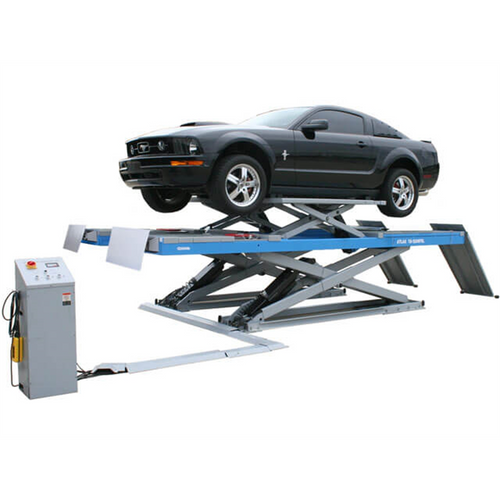

Our Asian partner developed this lift in a joint venture with one of the most prestigious Italian lift manufacturers. The combination of the Italian engineering and design coupled with the low cost of the Asian labor has resulted in an alignment lift that is equal to or better than similar big name lift brands costing two and three times as much money.
The Atlas® alignment lift has a lifting height of over seven feet so that it may be floor mounted or recessed if the customer decides on a flush mount installation. The full frame under the scissor lift provides for maximum stability.
All Atlas® alignment scissor lifts can be surface mounted or flush mounted. Each lift comes with approach ramps for the floor mounted application or an optional set of ramps if the customer decides to flush mount the lift. Check the technical specifications to better understand how the extra high lifting height allows the Atlas® 12K alignment scissor to be flush mounted and still offer plenty of room under the runways to properly access the underside of the vehicle.
The extra long 53" long approach ramps make it easy to load low riding vehicles.
Once a vehicle is positioned on the Atlas® alignment scissor lift, the optional Atlas RJ-6 rolling jack can lift the vehicle off of the runways to perform wheel service. The air powered hydraulic Atlas RJ-6 rolling jack has telescoping arms that extend over the runways to access lift points. These jacks have screw out extensions or optional stack on truck adapters.
Welded rails on the inside of the runways are standard on all lifts, allowing the customer the option of incorporating the Atlas RJ-6 rolling jack system on his Atlas® alignment scissor lift.
Quality workmanship, ease of operation, straight forward installation instructions, a durable powder coat finish and the lowest prices in the Industry makes the Atlas® 12AWFSL 12,000 alignment scissor lift the perfect choice for the demanding and discriminating shop owner.
Worried about bay space? This Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dual rear wheel pickup truck.Features & Benefits:
- Heavy Duty Construction and super- balanced lift for wheel alignment
- Can be surfaced mounted or flush mounted
- Very precise platform leveling accuracy
- Mechanical safety lock with air operated engagement and release
- Emergency manual pump for lowering
- Wheels Free System
- Overload valve included
- Lowering speed control valve included
- Air Line Kit Included
- Recessed turntables and turntable covers
- Turntable Color May Vary
- Extra Long Slip Plates allow for aligning of wheelbases from 172" to 86"
- 6 month motor/electric, 2 year structural and 1 year hydraulic warranty
- Mounting Hardware Included
- Shipping Dimensions: (2 boxes) 198" x 53" x 29 1/2"
Specifications:
Lifting Capacity - 12,000 lb
Lifting Height 84 1/4" (7' 1/4")
"Wheel Free" in ramp jack system Height - 17" (1' 5")
Overall Width - 86 3/8" (7' 2 3/8")
Overall Length w/Approach Ramps - 250" (20' 10")
Overall Length w/o Approach Ramps - 197" (16' 5")
Approace Ramp Length - 53" (4' 5")
4-Wheel Alignment Wheelbase - Max. 168" - Min. 90"
2-Wheel Alignment Wheelbase - Max. 172" - Min 86"
Runway Width - 23 3/4" (1' 11 3/4")
Lowered Height - 11 1/2"
Locking Positions - 19
Runway Width Between Runways - 39"
Motor/Electrical Requirement - 220V =/- 5% (209-231 volts) single (1) phase. 30 AMP
Oil Requirement - 3.5 Gallons AW32/AW46
Shipping Weight - 5,500lbs -
