Description
Details:

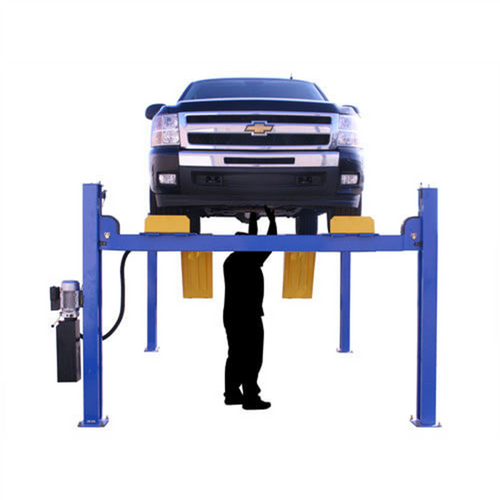

The Atlas® 414 14,000 pound capacity heavy duty 4-post car lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas® lifts offer many exclusive features not found on many other competitor’s lifts.
The Atlas® 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas® 414 has been manufactured to the same exacting specifications for many years.
The Atlas® 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
Finally, the Atlas® 414 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ8000BK) on the lift. Rolling jacks sold separately.
Features and Benefits:
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra LongV
- Diamond Plated Runways
- Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 3,100 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas® ATTD-414 Specifications:
Model ATTD-414 Capacity 14,000 lbs. Lifting Height 80" (6' 8") Clearance Under Runways 71 1/4" (5' 11 1/4") Height Of Columns 91 1/8" (7' 7 1/8") Overall Width Of Columns (Without Motor) 130 7/8" (10' 10 7/8") Overall Width Of Columns (With Motor) 138 7/8" (11' 6 7/8") Overall Length With Approach Ramp 255" (21' 3") Length Between Columns 197 1/4" (16' 5 1/4") Runway Width 20" Runway Length 208 5/8" (17' 4 5/8") Runway Thickness 8 3/4" Width Between Runways 46 7/8" (w/ Rail 44 3/8") Outside Runway To Outside Runway 86 7/8" (7' 2 7/8") Clearance Between Columns 116" (9' 8") Length Between Columns 157 1/2" (13' 1 1/2") Maximum Wheel Base 197" (16' 5") Drive Thru 102 1/8" (8' 6 1/8") Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Requires a minimum of 6" of concrete with a 3000 psi. rating Shipping Weight 3,100 lbs. Atlas® RJ6 Specifications:
Maximum Capacity 6,000 lbs. Maximum Width 55" (4' 7") Minimum Width 35" (2' 11") Distance Between Runway Capability 32"-50" Maximum Lifting Height (With Adapters) 21" (1' 9") Air Requirement 70-115 PSI Adapter Heights 2 Each 2", 3" Arm Hole/Adapter Peg Size 1.5" -
