Description
Details:

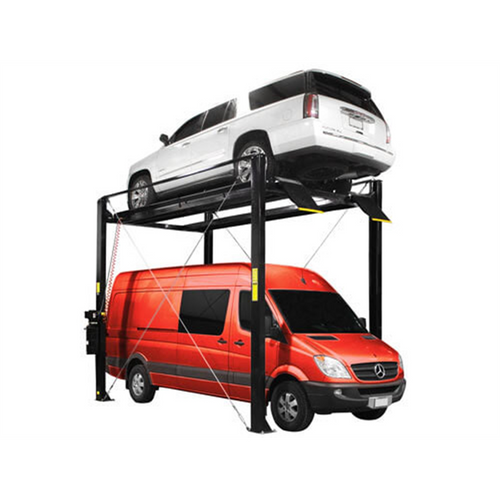

The Atlas ST-7000 is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The Atlas® ST-7000 raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway.
This super tall four post storage lift uses the same heavy duty runways found on the Atlas Garage Pro-9000. These commercial grade runways have welded jack tracks to accommodate the full line of professional rolling center jacks.
The extra tall lifting height gives customers the space needed to park much taller vehicles under the lifted vehicle. There are 21 locking positions in the lock ladder. The lock ladder may be adjusted during installation so that an almost infinite number of locking heights may be obtained.
A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the aircraft cables are compromised or becomes too slack.
Features and Benefits:
- 7,000 lb. Capacity
- Atlas® Powder Coat Finish
- Lifts over 12 feet high!
- Perfect for storing above tall vehicles
- Lock Ladder Design
- Must bolt to ground
- Anchor Bolts Included
- Reinforced runways
- Single Point Pneumatic Lock Release
- Double Lock Safety System
- Emergency secondary locking system
- 2 Year Structural, 1 Year Hydraulic Warranty
- Shipping Weight: 2,866 lbs.
Included
- Steel Approach Ramps
- Anchor bolts
Requirements
- 220V 1-PH 30A
- 75-120 psi air supply for locks
- This lift does have to bolt into place to the floor.
ST-7000 Warranty
- 2-year structural/1-year hydraulic
- Parts Only material and workmanship 90 days on wear items.
Specifications:
Capacity 7,000 LB Lifting Height To Top Of Runway 147″ (12′ 3″) Overall Length with Approach Ramps 227 ½” (18′ 11 ½”) Overall Length without Approach Ramps 205 ¼” (17′ 1 ¼”) Length Between Columns 185″ (15′ 5″) Overall Width (With Motor) 123″ (10′ 3″) Overall Width (Without Motor) 110 ½” (9′ 2 ½”) Approach Ramp Length 31 ½” (2′ 7 ½”) Total Runway Width 19″ Runway Length 194″ (16′ 2″) Runway Thickness 4 ½” Width Between Runways 45″ (3′ 9) Width Between Runway Rails 41 ¾” (3′ 5 ¾”) Outside Runway to Outside Runway 83″ (6′ 11″) Clearance Under Runways 142″ (11′ 10″) Size of Column 7 ½” x 4 ½” Clearance Between Columns 100″ (8′ 4″) Base of the Column 11 ¾” x 13″ Height of Columns 162″ (13′ 6″) Maximum Wheel Base 182″ (15′ 2″) Drive Thru (Outside of tire to outside of tire) 82 ½” (6′ 10 ½”) Adjustable by 7 ½” Cable Diameter .625″ (5/8″) Gauge Of Steel 5 Gauge (.2″ / 1/5″ / 5mm) Motor 220V +/- 5% (209-231volts) 1 phase.
A 30 amp breaker is required.Oil Requirement 6 Gallons AW32/AW46 Shipping Weight 2,866 LBS. -
