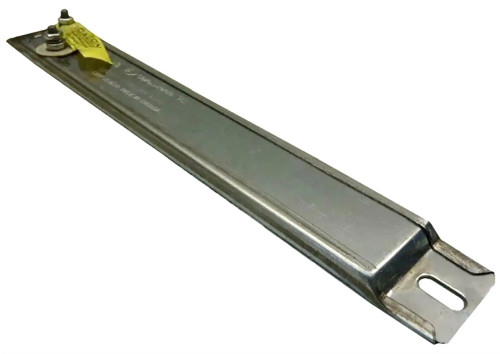

Caloritech 11.75" 240V 500W 1200F SS Series Strip Heater (SS2172)

The Caloritech 11.75" 240V 500W 1200F SS Series Strip Heater (SS2172) is an industrial heating component engineered for reliable and efficient thermal performance. Its stainless steel sheath ensures suitability for high-temperature environments, supporting applications up to 1200°F (649°C). The offset bolt-type terminals facilitate straightforward electrical connections. This strip heater provides consistent heat distribution, which is beneficial for processes requiring uniform temperature across surfaces or within contained spaces. Its robust construction minimizes maintenance, contributing to operational continuity. The inclusion of slotted mounting tabs allows for essential lineal expansion during heating cycles, preventing stress on the unit and mounting points. Furthermore, its CSA and UL safety certifications provide assurance of quality and adherence to recognized safety standards, making it a dependable choice for integration into various industrial systems.

KEY FEATURES AND BENEFITS:

• Optimized Heat Delivery: Provides uniform and consistent heat output, crucial for applications requiring precise temperature control across surfaces or within enclosures.
• Corrosion Resistance: The stainless steel sheath construction offers excellent protection against corrosion, extending the heater's lifespan even in challenging industrial environments.
• Wide Application Suitability: Versatile design allows its use in a broad spectrum of industrial applications, from surface heating and air processes to moisture prevention in critical equipment.
• Enhanced Operational Safety: UL and CSA certifications verify that the heater meets important safety standards, contributing to a safer working environment.
• Reduced Downtime: Its robust construction and reliable performance contribute to less frequent replacement and maintenance needs, supporting continuous operations.

SPECIFICATIONS:

• Model Number: SS2172
• Length: 11.75 inches
• Voltage: 240 V
• Wattage: 500 W
• Maximum Exposure Temperature: 1200°F (649°C)
• Sheath Material: Stainless Steel
• Terminals: Two offset bolt-type terminals
• Watt Density: 17.2 Watts/in²
• Product Weight: 6.0000 lb
• Heat Output: 1,706 Btu/hour
• Phase: Single Phase
• Manufacturer's Warranty: 1 year limited warranty
• Safety Certifications: CSA, UL Safety Certified

HOW TO USE:

1. Preparation: Ensure the power supply is off and secured to prevent accidental activation. Verify that the electrical circuit matches the heater's voltage (240V) and can support its wattage (500W).
2. Mounting: Position the strip heater in the desired location. Utilize the slotted mounting tabs to secure the heater to the surface. Ensure the mounting allows for the heater's lineal expansion during operation. Consider using surface clamps (SA1044) for broad surface mounting if required.
3. Wiring: Connect the 240V power supply to the two offset bolt-type terminals on the heater. Ensure all electrical connections are secure and comply with local electrical codes. For voltages to ground exceeding 300V, use secondary insulators (SA1014 or SA1024). For electrical shock protection, consider using ceramic post terminal covers (BA0002).
4. Temperature Control (Optional): If precise temperature control is needed, integrate a Caloritech CPA or CPB control panel (sold separately) into the electrical circuit as per the control panel's instructions. This will allow for regulation of the heater's output.
5. Power On and Monitor: Once fully installed and wired, restore power to the circuit. Monitor the heater's initial operation to ensure it is functioning correctly and reaching the desired temperature.
6. Maintenance: Regularly inspect the heater and its connections for any signs of wear or damage. Disconnect power before performing any inspection or maintenance.

BENEFITS OF USING CALORITECH 11.75" 240V 500W 1200F SS SERIES STRIP HEATER (SS2172):

• Optimized Heat Delivery: Offers consistent temperature across surfaces, vital for controlled industrial processes.
• Corrosion Resistance: Durable stainless steel construction extends product life in corrosive and high-temperature environments.
• Certified Safety: Meets CSA and UL safety standards, offering peace of mind during operation.
• Low Maintenance Needs: Rigid and robust design reduces the need for frequent servicing, promoting continuous operation.

FEATURES:

• Stainless steel sheath provides protection for high-temperature and corrosive conditions.
• Uniformly coiled resistance wire ensures even heat distribution across the heater's surface.
• Resistance wire embedded in a refractory material for improved heat transfer and vibration resistance.
• Final heat treatment process solidifies the refractory material for heavy-duty performance.
• Slotted mounting tabs accommodate lineal expansion, protecting the unit and mounting.
• Hardwired connectivity for secure and stable electrical integration.
• Designed for single-phase electrical systems.
• Can be paired with external control panels for adjustable temperature regulation.
• Features two offset bolt-type terminals for straightforward electrical connections.
