Description

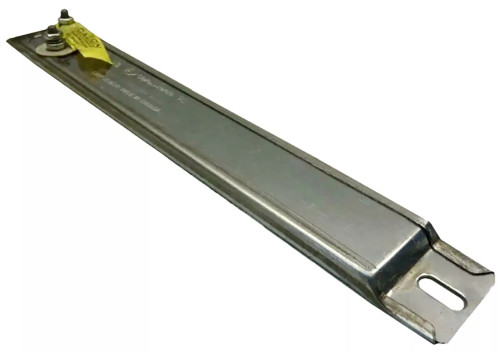

The Caloritech 30.25" 240V 1000W 1200F SS Series Strip Heater (SS2502) is a highly reliable and efficient heating solution for a broad spectrum of industrial and commercial applications. Engineered with a robust stainless steel sheath and designed for optimal heat transfer, this strip heater delivers consistent and controllable heat up to 1200°F (649°C). It is ideal for processes requiring uniform surface heating, precise air temperature control, or effective winterization. Its standardized design and CSA/UL safety certifications make it a preferred component for reliable thermal management in demanding environments. The SS2502's ability to integrate with various control systems ensures flexible operation tailored to specific heating requirements, making it a valuable asset for optimizing efficiency and performance.
KEY FEATURES AND BENEFITS:
- High Temperature Capability: Reaches a maximum sheath temperature of 1200°F (649°C), suitable for high-temperature applications.
- Robust Construction: Stainless steel sheath provides excellent corrosion resistance, extending product life and maintaining appearance.
- Efficient Heat Transfer: Designed for optimal contact and heat distribution, ensuring rapid and uniform heating of surfaces or air.
- Versatile Applications: Effective for surface heating (platens, dies, molds), air heating (ovens, drying cabinets), and winterization (hoppers, control panels).
- Standardized Electrical Ratings: Operates at 240V and 1000W, making it compatible with common industrial power supplies.
- Safety Certified: CSA and UL certifications ensure compliance with safety standards for industrial heating equipment.
- Easy Integration: Can be controlled with external thermostats or control panels for precise temperature management.
- Simple Mounting: Features slotted holes for straightforward surface installation.
SPECIFICATIONS:
- Model Number: SS2502
- Length: 30.25 inches
- Width: 1.5 inches
- Height: 1.5 inches
- Voltage: 240V
- Wattage: 1000W
- Maximum Sheath Temperature: 1200°F (649°C)
- Sheath Material: Stainless Steel
- Watt Density: 10.2 Watts/in² (1.6 Watts/cm²)
- Heat Output: 3,412 BTU/hour
- Terminals: Two offset bolt-type terminals
- Mounting Type: Surface mount with slotted holes (5/8" L x 9/32" W)
- Warranty: 1 year limited warranty
- Safety Certifications: CSA, UL
HOW TO USE:
- Preparation: Ensure the mounting surface is clean, flat, and capable of withstanding the operating temperature. Verify that the electrical supply matches the heater's voltage (240V).
- Mounting: Securely attach the strip heater to the desired surface using appropriate fasteners through the slotted mounting holes. Ensure firm contact for efficient heat transfer.
- Wiring: Connect the two offset bolt-type terminals to your power source (240V) following local electrical codes and safety guidelines. Ensure all connections are secure and insulated. Use high-temperature rated wiring if necessary.
- Temperature Control (Optional): For precise temperature management, connect the heater to an external control device such as a mechanical thermostat or a dedicated heating control panel (e.g., Caloritech™ CPA or CPB). Follow the control unit's instructions for wiring and calibration.
- Operation: Once properly wired and mounted, activate the power supply. The heater will begin to warm up. Monitor the temperature as needed, especially during initial operation.
- Maintenance: Regularly inspect the heater and wiring for any signs of wear, damage, or loose connections. Keep the heater surface free from obstructions to ensure optimal performance and safety.
BENEFITS OF USING CALORITECH 30.25" 240V 1000W 1200F SS SERIES STRIP HEATER (SS2502):
- Enhanced Process Efficiency: Provides rapid and uniform heat, reducing warm-up times and improving the efficiency of industrial processes.
- Reduced Downtime: The robust stainless steel construction ensures reliability and longevity, minimizing maintenance needs and operational interruptions.
- Cost-Effective Operation: An economical heating source that, when properly controlled, optimizes energy consumption for consistent heat delivery.
- Safety Assurance: UL and CSA certifications provide peace of mind regarding the product's safety and adherence to industry standards.
- Space-Saving Design: Its narrow profile allows for installation in confined spaces where other heating elements may not fit.
- Improved Product Quality: Consistent and controllable heat helps in maintaining precise temperatures, which can lead to higher quality outputs in manufacturing processes.
FEATURES:
- Stainless steel sheath provides excellent resistance to oxidation and corrosion.
- Compressed internal construction ensures optimal insulation and a long service life.
- Two bolt-type terminals are conveniently offset for straightforward electrical connections at one end.
- Designed for surface mounting with integrated slotted holes for secure installation.
- Can be utilized without an adjustable thermostat, allowing for external control system integration.
- Suitable for both direct surface contact heating and convection air heating applications.
- Withstands a high maximum sheath temperature of 1200°F.
- Hardwired installation ensures a permanent and secure electrical connection.
-
