Description

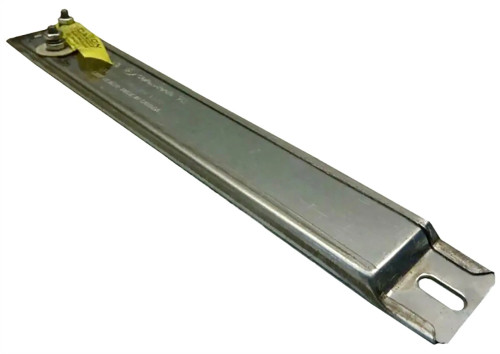

The Caloritech 5.5" 120V 250W 1200F SS Series Strip Heater (SS2001) is an efficient and dependable solution for a wide range of industrial heating applications. This robust electric heater is designed for high-temperature performance, featuring a stainless steel sheath that ensures durability and a maximum sheath temperature of 1200°F (649°C). Its compact design and high watt density make it ideal for delivering concentrated and uniform heat to surfaces, processes, and components requiring precise thermal management.
KEY FEATURES AND BENEFITS:
- High Temperature Capability: Reaches sheath temperatures up to 1200°F (649°C), suitable for demanding industrial processes.
- Stainless Steel Construction: Provides corrosion resistance and extended operational life, especially in high-temperature environments.
- Uniform Heat Distribution: Internal coiled resistance wire embedded in refractory material ensures consistent and even heat output across the heater surface.
- Versatile Application: Effective for surface heating (platens, dies, molds), process air heating (ovens, drying cabinets), and moisture protection in various industrial settings.
- Safety Certified: CSA and UL safety certifications confirm compliance with recognized safety standards, offering reliability and peace of mind.
- Easy Integration: Designed for straightforward surface mounting with slotted holes and simple two-bolt terminal connections, allowing for integration with external temperature controls.
SPECIFICATIONS:
- Model: SS2001
- Dimensions (L x W x H): 5.5 x 1.5 x 1.5 inches
- Voltage: 120V
- Wattage: 250W
- Maximum Product Temperature (Sheath): 1200°F (649°C)
- Construction Material: Stainless Steel Sheath
- Terminals: Two offset bolt-type terminals
- Mounting Type: Surface Mount
- Mounting Holes: Slotted holes
- Watt Density: 31.4 Watts/in² / 4.9 Watts/cm² (maximum)
- Heat Output: 853 Btu/hour
- Thermostat: No built-in adjustable thermostat
- Safety Certifications: CSA, UL
HOW TO USE:
- Mounting: Securely attach the Caloritech SS2001 strip heater to the desired surface using the slotted mounting holes. Ensure the surface is clean, flat, and capable of withstanding the operating temperatures.
- Wiring: Connect the two offset bolt-type terminals to your power supply (120V) and external temperature control system. Follow all local electrical codes and safety guidelines for wiring. For voltages exceeding 300V to ground, use secondary insulators.
- Temperature Control Setup: Integrate the heater with an appropriate external temperature control device, such as a heating control panel (e.g., Caloritech CPA or CPB), a mechanical thermostat, or a bi-metal thermostat, to regulate the desired temperature.
- Power On: Once securely mounted and properly wired with a control system in place, energize the heater circuit. Monitor the initial operation to ensure proper heating and temperature regulation.
- Monitoring and Adjustment: Periodically check the heater's performance and adjust the external temperature control as needed to maintain the required process temperature.
BENEFITS OF USING CALORITECH 5.5" 120V 250W 1200F SS SERIES STRIP HEATER (SS2001):
- Provides efficient and precise spot or area heating for critical industrial applications.
- Contributes to consistent product quality by maintaining stable process temperatures.
- Extends equipment lifespan by preventing moisture buildup and condensation in enclosed spaces.
- Reduces operational downtime through reliable and long-lasting heating performance.
- Offers a cost-effective heating solution with low maintenance requirements over its operational life.
- Enhances safety in industrial environments with its certified design and robust construction.
FEATURES:
- Designed for 120-volt electrical systems, providing broad compatibility.
- Equipped with a 250-watt heating capacity for effective thermal output.
- Features a compact form factor, measuring 5.5 inches in length.
- Incorporates a robust stainless steel sheath for enduring high temperatures.
- Includes two bolt-type terminals for straightforward electrical connections.
- Provides uniform heat transfer due to its high-quality internal resistance element.
- Suitable for surface mounting with integrated slotted holes for installation.
- Functions as a component heater, adaptable to various machinery and systems.
- Operates without a built-in thermostat, allowing for flexible external temperature control.
- Developed for industrial environments, ensuring reliable performance under demanding conditions.
-
