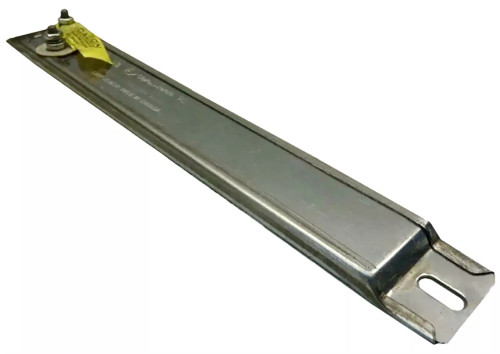

Caloritech 7.25" 120V 100W SS Series Strip Heater (SS1031)

The Caloritech 7.25" 120V 100W SS Series Strip Heater (SS1031) is a specialized electric radiant component designed to provide efficient and reliable heat in a variety of industrial and commercial settings. As part of Caloritech's SS Series, this heater is engineered for optimal performance in surface heating, process air heating, and winterizing applications. Its robust construction, featuring an aluminized steel sheath, ensures effective heat transfer and a long operational lifespan. The SS1031 is a versatile and economical heating solution, suitable for integration into new systems or for enhancing existing thermal processes where consistent and controlled heat is essential.

KEY FEATURES AND BENEFITS:

• Efficient Heat Delivery: Provides 100W of focused heating at 120V, delivering 341 BTU/hour for effective thermal management in various applications.
• Aluminized Steel Sheath: Constructed with an aluminized steel sheath, which offers corrosion resistance and is suitable for maximum sheath temperatures up to 1000°F (538°C), ensuring operational longevity.
• Versatile Application: Ideal for surface heating of platens, dies, and molds, as well as process air heating in ovens and drying cabinets, and for critical winterizing needs.
• Integrated Design: Features two offset bolt-type terminals at one end for straightforward electrical connections, simplifying installation.
• Safety Certified: Bears CSA and UL safety certifications, ensuring compliance with recognized safety standards for industrial heating components.
• Durable Construction: High-temperature alloy resistance wire is uniformly coiled and embedded in a special refractory material, compressed under high pressure for robust performance and uniform heat distribution.
• Surface Mounting: Designed for easy surface installation, allowing for flexible positioning within equipment or on specific surfaces.

SPECIFICATIONS:

• Length: 7.25 inches (184 mm)
• Width: 1.5 inches
• Height: 1.5 inches
• Voltage: 120V
• Wattage: 100W
• Amperage: 0.83 Amps
• Heat Output: 341 BTU/hour
• Watt Density: 8.2 Watts/in²
• Maximum Product Temperature: 1000°F (538°C)
• Sheath Material: Aluminized Steel
• Mounting Type: Surface Mount
• Terminal Type: Offset Bolt-Type Terminals
• Slotted Hole Dimensions: 5/8" L x 9/32" W

HOW TO USE:

1. Preparation: Ensure the mounting surface is clean, stable, and capable of withstanding the operating temperature. Confirm that the power supply matches the heater's 120V requirement.
2. Mounting: Position the Caloritech SS1031 strip heater on the desired surface. Secure it firmly using appropriate fasteners through the integrated mounting holes.
3. Electrical Connection: Connect the 120V power supply to the two offset bolt-type terminals located at one end of the heater. Ensure all connections are secure and comply with local electrical codes. If the voltage to ground exceeds 300V, secondary insulators must be used.
4. Temperature Control (Optional): If precise temperature control is required, install a suitable temperature controller (e.g., a bi-metal thermostat on the heater surface or a Caloritech CPA/CPB control panel) in series with the heater, following the controller's instructions.
5. Operation: Once mounted and wired, apply power to the heater. The heater will begin to generate heat. Monitor the initial operation to ensure proper function.
6. Maintenance: Regularly inspect the heater and electrical connections for any signs of wear or damage. Disconnect power before any maintenance.

BENEFITS OF USING CALORITECH 7.25" 120V 100W SS SERIES STRIP HEATER (SS1031):

• Consistent Thermal Performance: Delivers steady heat, crucial for applications requiring stable temperature maintenance, such as in drying processes or material conditioning.
• Energy Efficient: The 100W rating ensures targeted heat application with a manageable power consumption, contributing to operational efficiency.
• Enhanced Equipment Protection: Useful for moisture protection of motors and anti-condensation in control panels, extending the lifespan and reliability of sensitive equipment.
• Broad Application Spectrum: Can be integrated into diverse systems, including food packaging, laboratory equipment, presses, and thawing applications, demonstrating its adaptability.
• Reduced Downtime: Reliable heating helps prevent issues caused by cold or moisture, leading to fewer operational interruptions and increased productivity.
• Cost-Effective Heating Solution: Provides an economical means of adding heat to various industrial processes without requiring complex or expensive infrastructure.

FEATURES:

• Electric radiant heating element.
• Designed with two offset bolt-type terminals.
• Suitable for both surface contact and convective air heating.
• Internal construction features highly compressed refractory material for optimal heat transfer.
• Resistance wire is made from a high-temperature alloy.
• Can be operated on voltages lower than 120V for reduced wattage output.
• Equipped with integral mounting holes for secure attachment.
• Does not include an adjustable thermostat as a standard component.
• Supports secondary insulation for applications where voltage to ground exceeds 300V.
• Manufactured by Thermon Heating Systems, Inc.
