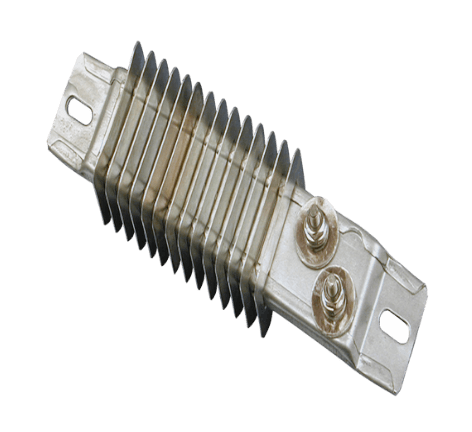

Caloritech 7.25" 120V 150W SS Series Strip Heater (SS1041)

The Caloritech 7.25" 120V 150W SS Series Strip Heater (SS1041) is an efficient and economical heating element designed for a wide array of industrial applications. Its primary function is to provide reliable heat transfer for surfaces, processes, and equipment. This heater features an aluminized steel sheath, which allows for effective heat distribution and protection of internal components, making it suitable for environments where sheath temperatures can reach up to 1000°F (538°C). The construction includes a resistance coil insulated by ceramic and filled with high-purity magnesium oxide, ensuring optimal thermal conductivity and dielectric strength. With CSA and UL safety certifications, the SS1041 offers assurance of quality and compliance for industrial integration. It is ideal for tasks such as heating platens, dies, molds, tanks, and for process air heating in various drying and warming applications, including ovens and food packaging equipment.

KEY FEATURES AND BENEFITS:

• Efficient Heating Output: Delivers 150W of focused heating power at 120V for dependable thermal performance.
• Aluminized Steel Sheath: Corrosion-resistant sheath supports maximum sheath temperatures up to 1000°F (538°C).
• High-Quality Construction: Resistance coil is supported by ceramic and surrounded with high-purity magnesium oxide for superior heat transfer and insulation.
• Certified Safety: CSA and UL listed, meeting industrial standards for performance and safety.
• Versatile Applications: Suitable for surface and air heating in ovens, packaging machinery, platens, dies, and more.
• Compact Design: 7.25-inch length accommodates space-limited environments.
• Easy Integration: Two offset bolt terminals simplify electrical connections for quick setup.

SPECIFICATIONS:

• Manufacturer: Caloritech (a brand of Thermon Heating Systems Inc.)
• Part Number: SS1041
• Type: SS Series Strip Heater
• Length: 7.25 inches (7-1/4 inches)
• Width: 1.5 inches
• Slotted Hole Length: 5/8 inches
• Slotted Hole Width: 9/32 inches
• Voltage: 120V AC
• Wattage: 150W
• Watt Density: 12.3 Watts/in² / 1.9 Watts/cm²
• Sheath Material: Aluminized Steel
• Maximum Sheath Temperature (Sheath Material): 1000°F / 538°C
• Terminals: Two offset bolt terminals
• Certifications: CSA, UL Safety Certified
• Warranty: 1-year limited warranty

HOW TO USE:

1. Mounting: Securely fasten the Caloritech SS1041 strip heater to the surface or within the enclosure that requires heating. Utilize the pre-drilled mounting holes for stable installation. Ensure proper contact with the surface for efficient heat transfer if used for conductive heating.
2. Electrical Connection: Connect the two offset bolt terminals of the heater to a 120V AC power supply. It is recommended to use appropriate gauge wiring and ensure all electrical connections comply with local electrical codes and safety standards.
3. Temperature Control (Optional): If precise temperature regulation is needed, integrate a separate temperature control device, such as a Caloritech CPA or CPB control panel, into the electrical circuit. The SS1041 does not come with a built-in thermostat.
4. Power On: Once securely mounted and wired, apply power to the heater. Monitor the initial operation to ensure proper functionality and heat distribution.
5. Safety Precautions: Always observe standard industrial safety practices when operating heating elements. Ensure adequate ventilation and prevent contact with combustible materials. Disconnect power before performing any maintenance or adjustments.

BENEFITS OF USING CALORITECH 7.25" 120V 150W SS SERIES STRIP HEATER (SS1041):

• Reliable Heat Distribution: Ensures stable thermal output for consistent heating in demanding applications.
• Energy-Efficient Performance: 150W power rating delivers targeted heating with optimized energy use.
• Industrial Durability: Rugged design with aluminized sheath resists corrosion and wear in harsh environments.
• Flexible Installation: Compact dimensions and standard width support broad compatibility and ease of integration.
• Compliance Assurance: Certified by CSA and UL, ensuring adherence to recognized industrial safety standards.
• Long-Term Value: Magnesium oxide insulation and ceramic components contribute to long service life and minimal maintenance needs.

FEATURES:

• Compact 7.25-inch length for versatile installation in constrained spaces.
• Aluminized steel sheath provides resistance to oxidation and corrosion at elevated temperatures.
• Internal construction features a helically wound resistance coil for even heat generation.
• Ceramic insulation supports the coil and prevents electrical shorting.
• Magnesium oxide fill optimizes heat transfer to the sheath and provides excellent dielectric strength.
• Two offset bolt terminals facilitate straightforward electrical connections.
• Suitable for both surface contact heating and convection heating applications.
• Designed for 120V AC power systems, compatible with common industrial power sources.
• CSA and UL listed, ensuring compliance with North American safety standards.
• Industry-standard 1.5-inch width allows for broad compatibility in fixture design.
• Equipped with pre-drilled slotted holes for flexible mounting options.
