Description

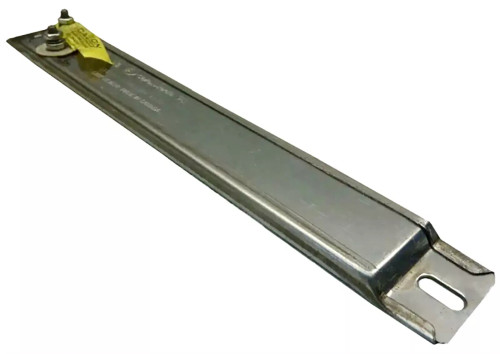

The Caloritech 8.0" 120V 250W 1200F SS Series Strip Heater (SS2061) is a specialized electric radiant heating element engineered for demanding industrial and commercial thermal applications. Constructed with a high-temperature stainless steel sheath, this heater is designed to deliver consistent and efficient heat up to 1200°F (649°C). Its compact 8-inch length and 1.5-inch width make it suitable for integration into various equipment and systems requiring precise and reliable heat delivery.
KEY FEATURES AND BENEFITS:
- High Operating Temperature: Capable of achieving sheath temperatures up to 1200°F (649°C), making it ideal for processes requiring intense heat.
- Corrosion Resistant Construction: Features a compressed stainless steel sheath that provides resistance to corrosion and ensures longevity in harsh environments.
- Efficient Heat Transfer: Designed for optimal surface contact to ensure effective heat transfer to the desired area or material.
- Versatile Application Range: Suitable for a broad spectrum of uses from industrial process heating to winterizing and anti-condensation applications.
- Safety Agency Approved: UL and CSA safety certified, confirming adherence to recognized safety standards for electrical heating components.
- Simple Electrical Connection: Equipped with offset bolt-type terminals for straightforward and secure wiring.
SPECIFICATIONS:
- Model: SS2061
- Series: SS Series
- Voltage: 120V AC
- Wattage: 250W
- Length: 8.0 inches (20.32 cm)
- Width: 1.5 inches
- Height: 1.5 inches
- Maximum Sheath Temperature: 1200°F (649°C)
- Sheath Material: Stainless Steel
- Terminals: Two offset bolt-type terminals
- Watt Density: 16.7 Watts/in² (2.6 Watts/cm²)
- Heat Output: 853 Btu/hour
- Slotted Hole Dimensions: (5/8)" L x (9/32)" W
HOW TO USE:
- Mount the Heater: Securely fasten the Caloritech SS2061 strip heater to a smooth, metallic surface. Ensure complete contact along the entire length of the heater using appropriate clamping mechanisms to facilitate efficient heat transfer. The slotted mounting holes on the heater are provided for this purpose.
- Wire the Heater: Connect the electrical wiring to the two offset bolt-type terminals located at one end of the heater. Ensure all electrical connections comply with local electrical codes and safety standards.
- Connect to Power Source: Route the wiring to a compatible 120V AC power source.
- Install Temperature Control (Optional but Recommended): For precise temperature management and safety, integrate an external temperature control device such as a Caloritech™ CPA or CPB control panel, a mechanical thermostat, or a bi-metal thermostat. This heater does not have an integrated thermostat.
- Test Operation: After all connections are made and secured, apply power to the heater and verify its operation. Monitor the temperature as needed with an external sensor if not using a controlled system.
- Regular Inspection: Periodically inspect the heater and its connections for any signs of wear, damage, or loose connections to ensure continued safe and effective operation.
BENEFITS OF USING CALORITECH 8.0" 120V 250W 1200F SS SERIES STRIP HEATER (SS2061):
- Reliable Performance: Provides consistent heat output for critical industrial processes.
- Longevity: Constructed for extended service life in demanding environments.
- Space Efficient: Its compact design allows for integration into systems with limited space.
- Broad Utility: Applicable across numerous sectors from manufacturing to transportation and environmental control.
- Cost-Effective Heating: Offers an economical solution for various heating requirements.
FEATURES:
- 8.0-inch length for targeted heating.
- 1.5-inch width and height for compact integration.
- Operates on a 120V AC power supply.
- 250 Watts of heating power.
- Maximum sheath temperature of 1200°F.
- Constructed with a stainless steel sheath.
- Features two offset bolt-type terminals.
- Designed for surface mounting.
- Watt density of 16.7 Watts/in².
- Heat output of 853 Btu/hour.
- CSA and UL safety certified.
- Includes slotted mounting holes for installation.
-
