Description

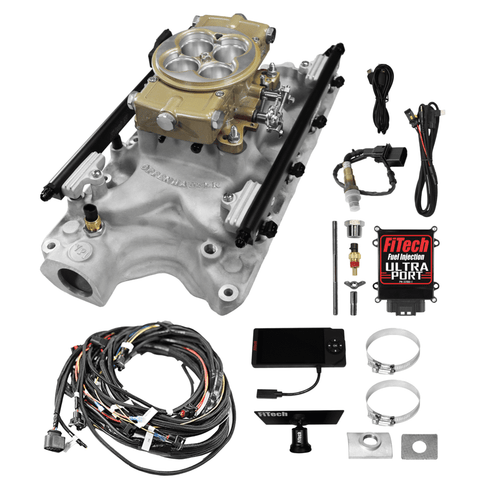

The FiTech 1000HP Ford 351W Offenhauser VPI EFI Classic Gold (30-18-414) is designed to provide high-performance electronic fuel injection for Ford 351W engines. This comprehensive kit includes all necessary components to convert your engine to a port EFI system, supporting up to 1000 horsepower. It utilizes an Offenhauser VPI intake manifold, a 4150 flange classic gold throttle body, and a standalone ECU with self-learning capabilities. This system allows for precise fuel delivery and improved engine performance.
KEY FEATURES AND BENEFITS:
- Optimized Fuel Injection: Provides port fuel injection for improved fuel burn and throttle response.
- High-Power Support: Supports up to 1000 horsepower for high-performance applications.
- Complete EFI Conversion Kit: Includes intake manifold, fuel rails, injectors, ECU, and sensors.
- Self-Learning ECU: Simplifies setup and tuning with automatic fuel adjustments.
- Accurate Air/Fuel Control: Utilizes a 3-Bar TMAP sensor for precise fuel metering, especially under boost.
- User-Friendly Tuning: Allows for user tuning via a handheld touchscreen monitor.
- Power Adder Compatibility: Compatible with forced induction and nitrous oxide systems.
SPECIFICATIONS:
- Engine Compatibility: Ford 351W (Standard Deck)
- Maximum Horsepower: 1000 HP (Gasoline)
- Injection Style: Multi-port (Port EFI)
- Intake Manifold: Offenhauser VPI, Aluminum
- Throttle Body: 4150 Flange, Classic Gold, 75mm Venturi
- Injectors: 80 lbs/hr
- ECU: Standalone, Self-Learning, User-Tunable
- Metering Style: Speed Density (Map-N) or Speed Throttle (Alpha-N)
- Sensors: MAP, IAT, TPS, IAC, Oxygen
- Fuel Type: Gasoline, Alcohol, Methanol, Flex Fuel
- Compatibility: Forced induction, Nitrous oxide
- Transmission Controller: No
HOW TO USE:
- Installation of Intake Manifold: Remove the existing intake manifold and install the Offenhauser VPI intake manifold included in the kit.
- Fuel Rail and Injector Installation: Mount the fuel rails and install the 80 lbs/hr injectors onto the intake manifold.
- Throttle Body Mounting: Attach the 4150 flange throttle body to the intake manifold.
- Sensor Installation: Install the MAP, IAT, TPS, IAC, and oxygen sensors as per the provided instructions.
- ECU and Wiring Harness Connection: Connect the standalone ECU and wiring harness to the sensors and injectors.
- Fuel System Setup: Install a compatible fuel pump and fuel pressure regulator (not included).
- Initial ECU Setup: Use the handheld touchscreen monitor to input basic engine parameters.
- Self-Learning Process: Start the engine and allow the ECU to self-learn and adjust fuel delivery.
- User Tuning: Fine-tune the system using the handheld monitor for optimal performance.
BENEFITS OF USING THE FITECH 1000HP FORD 351W OFFENHAUSER VPI EFI CLASSIC GOLD (30-18-414):
- Enhanced Performance: Improves engine horsepower and throttle response.
- Fuel Efficiency: Provides better fuel economy compared to carburetors.
- Precise Fuel Control: Ensures accurate fuel delivery for optimal combustion.
- Easy Setup: Simplifies installation and tuning with the self-learning ECU.
- Engine Reliability: Enhances overall drivability and engine longevity.
- High-Horsepower Capability: Supports high-performance engine builds.
FEATURES:
- Utilizes Variable Port Injection
- Includes a 3-Bar TMAP Sensor
- 4 venturi 75mm throttle body design
- Compatible with various fuel types
- Complete wiring harness provided
- Uses a 4.5-inch touchscreen display
- Cast aluminum construction of intake and throttle body
- Calibration module included
-
