Description

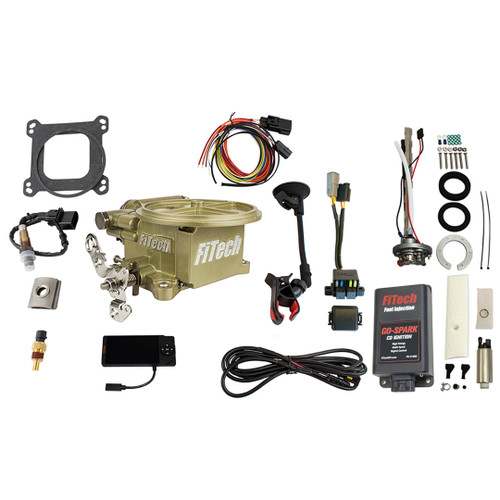

The FiTech 2 Barrel 400 HP Classic Gold EFI w/ 340LPH Pump & CDI (96001) is a comprehensive solution for converting carbureted engines to electronic fuel injection (EFI). This kit is designed to improve engine performance, fuel efficiency, and overall drivability. It includes all necessary components for a seamless conversion, such as a 2-barrel throttle body, an in-tank fuel pump module, and a CDI ignition box. The system is designed to handle engines producing up to 400 horsepower and offers self-tuning capabilities for optimal performance.
KEY FEATURES AND BENEFITS:
- Converts carbureted engines to EFI for improved performance and fuel efficiency.
- Handles engines up to 400 horsepower.
- Includes a 2-barrel throttle body with 62 lbs/hr injectors.
- Features a 340 lph in-tank fuel pump module for consistent fuel delivery.
- Comes with a Go-Spark CDI ignition box for enhanced spark and combustion.
- Self-tuning capabilities allow for automatic adjustments based on engine conditions.
- Includes a 4.5-inch handheld display for monitoring and adjustments.
- Supports multiple fuel types.
SPECIFICATIONS:
- Maximum Horsepower: 400 HP
- Injection Style: Throttle Body
- Timing Control: Compatible
- ECU: Included (integrated into throttle body)
- Fuel Pump: Included (in-tank module, 340 lph)
- Metering Style: Speed density (Map-N)
- Throttle Body Mounting Flange: Holley 2-barrel
- Venturi: 4 Venturi, 44.00mm diameter
- Airflow: 500 cfm
- Injector Size: 62 lbs/hr
- Display: 4.5 in. handheld display
HOW TO USE:
- Remove the Existing Carburetor: Disconnect and remove the existing carburetor and associated components.
- Install the Throttle Body: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
- Install the Fuel Pump: Install the in-tank fuel pump module into the fuel tank, ensuring proper connections.
- Connect the Wiring Harness: Connect the provided wiring harness to the throttle body, fuel pump, ignition, and other necessary sensors.
- Install the CDI Ignition Box: Mount the Go-Spark CDI ignition box and connect it to the distributor and wiring harness.
- Connect Sensors: Install and connect the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
- Connect the Handheld Display: Connect the handheld display to the throttle body for monitoring and adjustments.
- Initial Setup: Follow the instructions on the handheld display to perform the initial setup and calibration.
- Start and Tune: Start the engine and allow the system to self-tune. Make any necessary adjustments using the handheld display.
BENEFITS OF USING THE FITECH 2 BARREL 400 HP CLASSIC GOLD EFI W/ 340LPH PUMP & CDI (96001):
- Improved engine performance with enhanced throttle response and power output.
- Increased fuel efficiency compared to carbureted systems.
- Simplified installation with an integrated ECU and comprehensive kit.
- Reliable fuel delivery with the included in-tank fuel pump module.
- Enhanced spark and combustion with the Go-Spark CDI ignition.
- Ability to use multiple fuel types.
- User-friendly self-tuning capability.
FEATURES:
- Integrated ECU within the throttle body.
- Self-tuning functionality for automatic adjustments.
- Handheld display for real-time monitoring and tuning.
- In-tank fuel pump module with integrated regulator.
- Go-Spark CDI ignition for improved spark energy.
- Wideband oxygen sensor for accurate fuel mixture monitoring.
- Compatibility with various fuel types, including alcohol, gasoline, methanol, and flex fuel.
- Utilizes a speed density (Map-N) metering style.
- Includes all necessary sensors (MAP, IAT, TPS).
-
