Description

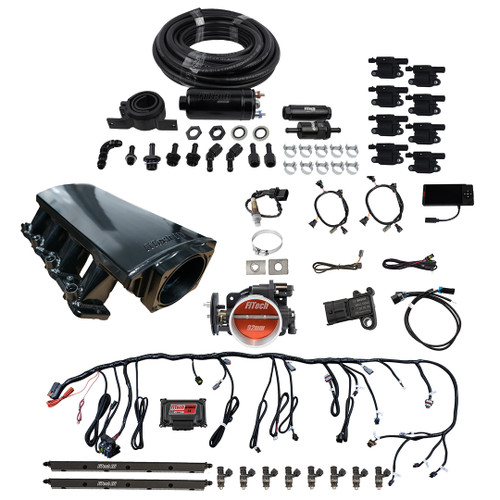

The FiTech LS Kit w/70011 Kit Inline Fuel Pump & LED Coil Pack Set (79111) is a complete solution for converting your LS engine to electronic fuel injection. Designed for engines producing up to 500 horsepower, this system provides precise fuel delivery and improved performance. It includes all necessary components for installation, making it a straightforward upgrade for DIY enthusiasts and professionals alike.
KEY FEATURES AND BENEFITS:
- Multi-Port Injection: Ensures accurate fuel delivery for enhanced performance.
- Self-Tuning ECU: Adapts to your engine's needs for optimal operation.
- Power Adder Compatibility: Supports boost and nitrous oxide for increased performance.
- 92mm Throttle Body: Provides sufficient airflow for high-performance applications.
- 36 lbs./hr. Injectors: Ensures adequate fuel supply for engine demands.
- Touchscreen Controller: Allows for easy monitoring and adjustments during operation.
- Complete Kit: Includes an inline fuel pump and LED coil packs for a comprehensive upgrade.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control: Compatible
- Power Adder: Compatible (Boost/Nitrous)
- ECU: Included
- Fuel Pump: Included
- Intake Manifold: Included (Aluminum, Black Anodized)
- Throttle Body: 92mm (GM LS2 4-bolt)
- Injectors: 36 lbs./hr.
- Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
- Fuel Types: Alcohol, Gasoline, Methanol, Flex
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing intake manifold and fuel system.
- Installation: Install the FiTech intake manifold and fuel rails onto the engine.
- Throttle Body Mounting: Attach the 92mm throttle body to the intake manifold.
- Injector Placement: Install the 36 lbs./hr. injectors into the fuel rails.
- Wiring Harness Connection: Connect the wiring harness to the injectors, sensors, and ECU.
- Sensor Installation: Install the MAP, IAT, and TPS sensors.
- Fuel Pump Setup: Mount the external fuel pump and connect the fuel lines.
- ECU Mounting: Secure the ECU in a suitable location.
- Touchscreen Setup: Connect the touchscreen controller and mount it for easy access.
- Initial Setup: Follow the on-screen instructions to configure the ECU for your engine.
- Final Checks: Verify all connections and check for fuel leaks.
- Startup and Tuning: Start the engine and allow the self-tuning ECU to adjust fuel delivery. Fine-tune as needed using the touchscreen controller.
BENEFITS OF USING THE FITECH LS KIT W/70011 KIT INLINE FUEL PUMP & LED COIL PACK SET (79111):
- Improved engine performance and throttle response.
- Precise fuel delivery for optimal efficiency.
- Easy installation with a complete kit.
- Self-tuning capabilities for simplified adjustments.
- Compatibility with power adders for increased versatility.
- Ability to use multiple fuel types.
- Included coil packs for enhanced ignition performance.
FEATURES:
- Durable Construction: Black anodized aluminum for long-lasting performance.
- High-Flow Throttle Body: Cable-operated design for maximum airflow.
- Accurate Monitoring: Bosch wideband-controlled oxygen sensor included.
- Stainless Steel Bung: For oxygen sensor installation.
- Flexible Connections: AN fittings and fuel crossover included.
- Custom Camshaft Compatible: Works with various camshaft configurations.
- Vacuum Requirements: Designed for applications with at least 6 inches of vacuum at idle.
- Signal Compatibility: 24X and 58X crank and cam compatible.
- Touchscreen Controller: Programmable handheld controller with data log features.
-
