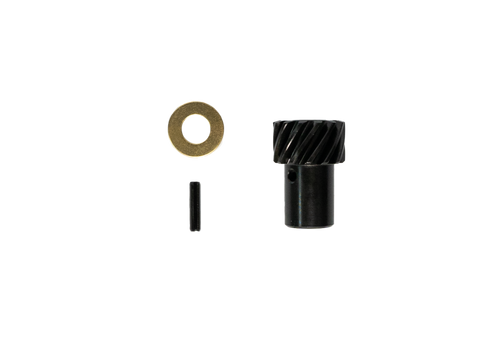

FiTech Melonized GM 500 I.D. Distributor Gear (99801)

FiTech Melonized GM 500 I.D. Distributor Gear (99801) is a crucial component designed to ensure accurate and reliable engine timing. As a replacement part, it is engineered to meet the specifications of various General Motors engines, providing a direct fit for straightforward installation. This gear plays a vital role in synchronizing the rotation of the distributor with the camshaft, which is essential for the precise firing of spark plugs and optimal engine performance. Crafted from melonized material, this distributor gear offers enhanced wear resistance and longevity, making it a dependable choice for maintaining your engine's performance.

KEY FEATURES AND BENEFITS:

• Direct Replacement: Engineered to fit a range of Chevy Small Block, Big Block, and GM V6 engines, ensuring an easy and direct replacement of your old or worn distributor gear.
• Melonized Material: Constructed from melonized material, which provides superior resistance to wear and tear compared to standard gears, extending the lifespan of the component.
• Precise Fit: Features a 0.500-inch distributor shaft diameter, adhering to the required specifications for compatible engines, guaranteeing proper engagement and function.
• Maintains Engine Timing: Essential for maintaining accurate engine timing, which is critical for optimal combustion, power delivery, and fuel efficiency.
• Durable Construction: Built to withstand the demanding conditions within the engine, ensuring reliable performance over time.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Manufacturer's Part Number: 99801
• Part Type: Distributor Gear
• Product Line: FiTech Distributor Gears
• UPC: 810128303897
• Distributor Shaft Diameter: 0.500 in.
• Distributor Gear Material: Melonized
• Drilling Required: No
• Roll Pin Included: No
• Quantity: Sold individually
• Compatibility: Chevy Small Block Gen I (5.0L/305, 4.4L/267), Chevrolet Big Block Gen VI (7.4L/454), GM V6 (4.3L/262)

HOW TO USE:

1. Preparation: Ensure the engine is turned off and the ignition key is removed. Allow the engine to cool down completely before starting the replacement process.
2. Locate the Distributor: Identify the distributor on your engine.
3. Remove the Distributor Cap: Carefully remove the distributor cap, noting the orientation of the wires for reinstallation.
4. Mark Distributor Position: Before removing the distributor, mark its position relative to the engine block. This will aid in reinstalling the new gear correctly.
5. Remove the Distributor: Loosen the distributor hold-down clamp and carefully remove the distributor from the engine.
6. Access the Distributor Gear: The distributor gear is located at the base of the distributor shaft.
7. Remove the Old Gear: Depending on the distributor design, you may need to remove a retaining pin or clip to slide the old gear off the shaft. Take note of the orientation of the old gear.
8. Install the New Gear: Slide the new FiTech 99801 distributor gear onto the shaft in the same orientation as the old gear. Ensure it is properly seated.
9. Secure the Gear: Reinstall any retaining pins or clips that were removed to secure the new gear to the shaft.
10. Reinstall the Distributor: Align the distributor with the mark made earlier and carefully insert it back into the engine block. Secure it with the hold-down clamp, but do not tighten it fully yet.
11. Adjust Timing (If Necessary): You may need to adjust the engine timing after reinstalling the distributor. Consult your vehicle's service manual for specific instructions.
12. Tighten the Hold-Down Clamp: Once the timing is set (if adjustment was needed), fully tighten the distributor hold-down clamp.
13. Reinstall the Distributor Cap: Reattach the distributor cap, ensuring the wires are connected in the correct order.
14. Test the Engine: Start the engine and check for proper operation.

BENEFITS OF USING FITECH MELONIZED GM 500 I.D. DISTRIBUTOR GEAR (99801):

• Direct-Fit Replacement: Simplifies installation with an easy, direct-fit design for GM engines.
• Enhanced Durability: Melonized finish significantly improves wear resistance and extends service life.
• Precise Timing: Ensures accurate engine timing, which optimizes combustion, power delivery, and fuel efficiency.
• Reliable Performance: Helps maintain the reliability and smooth operation of your engine by facilitating proper synchronization between distributor and camshaft.

FEATURES:

• Designed for GM Engines: Specifically engineered to replace distributor gears in compatible GM engine models.
• Durable Melonized Material: Built with melonized material for enhanced wear resistance.
• Precise 0.500-inch Shaft Diameter: Ensures accurate fitment and function.
• Maintains Engine Timing: Helps maintain accurate timing, vital for engine performance.
• No Drilling Required: Installation is simple without the need for any drilling.
• Sold Individually: Allows for targeted replacement without unnecessary extras.
• Compatibility: Works with a wide range of Chevy Small Block, Big Block, and GM V6 engines.
• Improves Engine Performance: Ensures reliable and efficient engine operation, contributing to the engine's longevity.
