FiTech Ultimate LS1/LS2/LS6 750HP Kit w/Trans Control (70004)

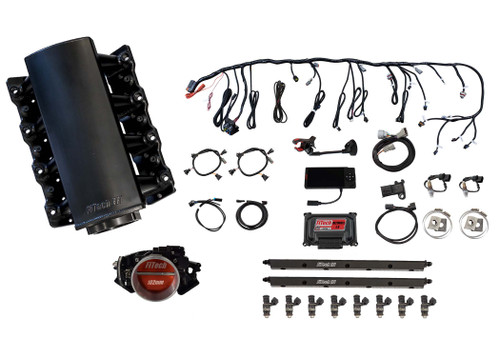

The FiTech Ultimate LS1/LS2/LS6 750HP Kit w/Trans Control (70004) provides a comprehensive solution for LS engine induction. Designed for both DIY enthusiasts and professional tuners, this kit simplifies the process of installing and operating LS engines. It includes a fabricated aluminum intake manifold, a 102mm throttle body, 55 lb/hr injectors, and a self-tuning ECU with touchscreen control. This system is compatible with various LS engines and GM automatic transmissions, offering a complete and efficient upgrade.

KEY FEATURES AND BENEFITS:

• Complete System: All necessary components for LS engine induction are included, eliminating the need for sourcing individual parts.
• High Performance: Supports up to 750 horsepower and accommodates power adders like boost, with a 3 BAR MAP sensor.
• Electronic Transmission Control: Integrated control for GM 4L60, 4L65, 4L80, and 4L85 transmissions, allowing for precise shift adjustments.
• Self-Tuning ECU: Simplifies tuning with a self-learning ECU and touchscreen controller.
• Quality Components: Features a fabricated aluminum intake manifold, billet fuel rails, and a plug-and-play wiring harness.

SPECIFICATIONS:

• Maximum horsepower: 750 HP
• Throttle Body: 102mm, cable-operated
• Injectors: 55 lb/hr
• MAP Sensor: 3 BAR (up to 30 PSI boost)
• Transmission Compatibility: GM 4L60, 4L65, 4L80, 4L85
• ECU: Self-tuning with touchscreen controller
• Intake Manifold: Fabricated aluminum
• Fuel Rails: Billet aluminum
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)

HOW TO USE:

• Install Intake Manifold: Mount the fabricated aluminum intake manifold onto the LS engine heads.
• Connect Fuel Rails and Injectors: Attach the billet fuel rails and 55 lb/hr injectors to the intake manifold.
• Mount Throttle Body: Secure the 102mm throttle body to the intake manifold.
• Connect Wiring Harness: Plug in the plug-and-play wiring harness to the engine sensors and ECU.
• Install Sensors: Mount the MAP, IAT, TPS, and O2 sensors.
• Connect Transmission (if applicable): Connect the transmission control harness to the GM automatic transmission.
• Mount ECU and Touchscreen Controller: Secure the ECU and mount the touchscreen controller in a convenient location.
• Initial Setup: Use the touchscreen controller to input engine parameters and start the self-learning process.
• Fine-Tune (if desired): Adjust settings on the touchscreen controller for optimal performance.

BENEFITS OF USING THE FITECH ULTIMATE LS1/LS2/LS6 750HP KIT W/TRANS CONTROL (70004):

• Simplified LS engine swaps with a complete system.
• Enhanced engine performance with high-flow components.
• Precise transmission control for improved driving experience.
• Easy tuning with a self-learning ECU.
• Reliable operation with quality components.
• Reduced time spent sourcing individual parts.

FEATURES:

• Dual Bosch Wideband O2 Sensors: For accurate AFR readings.
• Sequential Fuel and Spark Control: With individual cylinder trim for optimal tuning.
• Programmable Fan Control Outputs: For enhanced cooling management.
• Tach and Speedometer Output Drivers: Compatible with most gauges.
• Knock Sensor Control: Integrated for better performance monitoring.
• Crank and Cam Compatibility: Supports both 24X and 58X configurations.
• Black Anodized Aluminum Components: For durability and aesthetics.
• Designed for Engines: Requires at least 6 inches of vacuum at idle.
