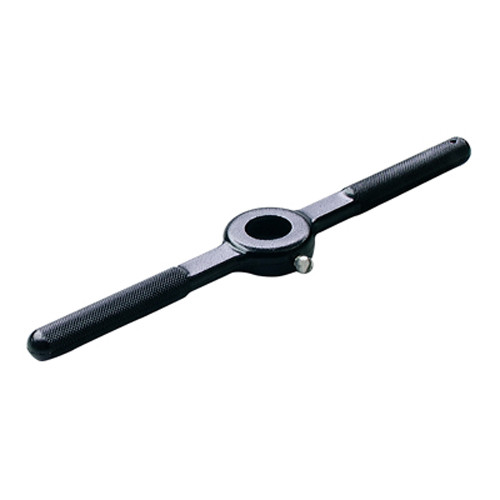

Irwin 1" Hex/Round Die Plain Die Stock Handle (12008)

The Irwin 1" Hex/Round Die Plain Die Stock Handle (12008) is a dependable manual threading tool built to handle both 1-inch hex and round dies. Crafted with durable solid steel, it’s ideal for threading operations across a variety of materials. The handle's straightforward set screw mechanism ensures the die stays locked in place, preventing slippage and ensuring stable, accurate thread cutting. With its ergonomic plain-grip handles and versatile die compatibility, this tool is a reliable asset for precision work in repair and maintenance tasks.

KEY FEATURES AND BENEFITS:

• Durable construction: Built from solid steel to endure repeated use.
• Versatile compatibility: Works with both 1" hexagonal and round dies.
• Secure die locking: Set screw mechanism prevents die slippage during operation.
• Accurate threading: Ensures stable and clean thread cutting on a variety of materials.
• Ideal for maintenance: Suitable for repair tasks requiring reliable manual threading.

SPECIFICATIONS:

• Product: Plain Die Stock Handle
• Model: 12008
• Compatibility: 1" Hex or Round Dies
• Construction: Solid steel

HOW TO USE:

1. Select the correct die: Choose a 1" die (either hex or round) that matches the thread you need to cut.
2. Insert the die: Place the chosen die into the circular opening of the die stock handle.
3. Secure the die: Tighten the set screw on the side of the handle until it firmly presses against the die, locking it securely in position.
4. Prepare the workpiece: Ensure the workpiece is securely clamped in a vise. Clean and deburr the end of the workpiece where the thread will be cut.
5. Begin threading: Place the die handle squarely onto the end of the workpiece. Apply light, even pressure while slowly turning the handle clockwise (for right-hand threads) to begin the cutting process.
6. Cut the threads: Turn the handle a half-turn clockwise, then back it up a quarter-turn counter-clockwise to break off the metal chips. Repeat this process, applying cutting fluid as needed, until the desired thread length is achieved.

BENEFITS OF USING IRWIN 1" HEX/ROUND DIE PLAIN DIE STOCK HANDLE (12008):

• Precision and control: Allows users to maintain steady grip and pressure for accurate threading.
• Increased efficiency: Simplifies threading tasks, especially during on-site repairs or maintenance.
• Long-term reliability: Built from strong materials to last through frequent use.
• Adaptability: Supports both hex and round dies, reducing the need for multiple handles.

FEATURES:

• Solid steel body: Ensures strength and extended lifespan.
• Comfortable grip: Ergonomic plain handles enhance user comfort.
• Dual-die compatibility: Fits 1" hex and round dies.
• Easy die locking: Set screw secures the die firmly during use.
• Threading-ready design: Optimized for repair and maintenance work.
