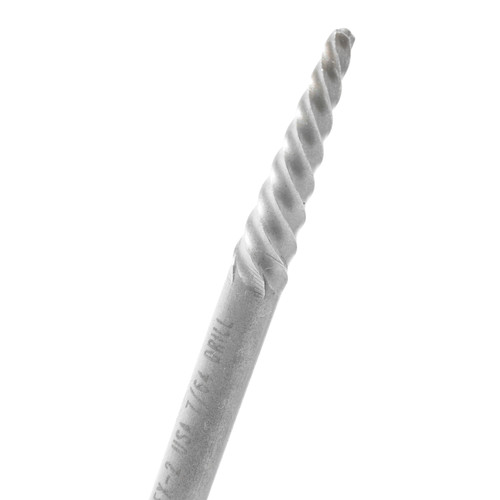

Irwin EX-2 Spiral Flute Screw Extractor (52402)

The Irwin EX-2 Spiral Flute Screw Extractor (52402) is a specialized tool engineered to address a common challenge in maintenance and repair: the removal of broken fasteners. This extractor is designed to work with broken bolts, studs, socket screws, and fittings within a specific size range, making it a valuable addition to any professional or home toolbox. The tool's primary function is to provide a reliable method for gripping and extracting broken metal pieces without causing further damage to the surrounding material.

KEY FEATURES AND BENEFITS:

• Reliable Extraction: The aggressive left-hand spiral design provides a strong grip that tightens as resistance increases, preventing slippage and ensuring the successful removal of broken fasteners.
• Versatile Application: Designed to extract broken studs, bolts, socket screws, and fittings, making it a multi-purpose tool for various repair and maintenance tasks.
• High-Quality Construction: Made from high carbon steel, the extractor is suited for use on harder metals, offering dependable performance and longevity.
• Easy Identification: The extractor size and recommended drill bit size (7/64") are etched on the tool, eliminating guesswork and simplifying the process of selecting the right tools.

SPECIFICATIONS:

• Product Name: Irwin EX-2 Spiral Flute Screw Extractor
• Extractor Size: EX-2 (#2)
• Recommended Drill Bit Size: 7/64"
• For Bolts: 5/32" to 7/32"
• Material: High Carbon Steel

HOW TO USE:

1. Prepare the Fastener: First, select a drill bit that is smaller than the broken fastener. A 7/64" drill bit is recommended for use with the EX-2 extractor.
2. Drill a Pilot Hole: Carefully drill a hole into the center of the broken fastener. It is important to drill straight and to an appropriate depth to allow the extractor to gain a solid purchase.
3. Insert the Extractor: Insert the tip of the EX-2 extractor into the newly drilled hole.
4. Apply Torque: Using a tap wrench or a similar hand tool, turn the extractor counter-clockwise. The left-hand spiral will bite into the fastener, and as you continue to turn, it will begin to unscrew and remove the broken piece.
5. Remove the Fastener: Continue turning until the broken fastener is completely removed from the material.

BENEFITS OF USING IRWIN EX-2 SPIRAL FLUTE SCREW EXTRACTOR (52402):

• Increases Efficiency: Simplifies the process of removing broken fasteners, saving time and effort compared to other, less effective methods.
• Reduces Damage: The controlled extraction process minimizes the risk of damaging threads or the surrounding material, preserving the integrity of the workpiece.
• Cost-Effective Repair: Provides a specific solution for a common problem, allowing for a targeted repair rather than the need to replace entire assemblies or components.
• Enhanced Safety: Designed for hand application, which allows for greater control and reduces the risk of injury compared to using power tools for this task.

FEATURES:

• Comes in bulk packaging
• Features a left-hand spiral design for superior grip
• Constructed from durable high carbon steel
• Engineered for manual use only
• Tool is etched with size and compatible drill bit
• Optimized for removing fasteners sized 5/32" to 7/32"
• Ideal for working with harder metals
