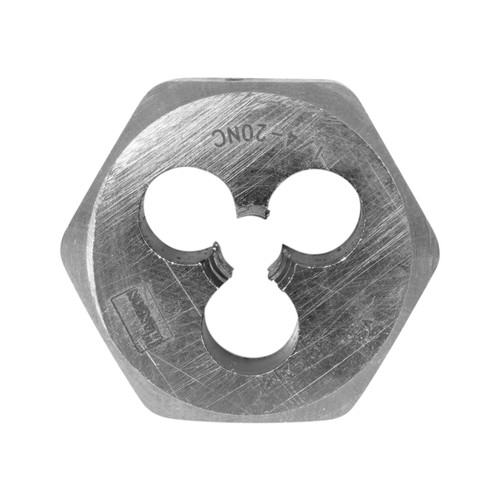

Irwin 1/4"-20 NC HCS 1" Across Hexagon Fractional Die (6520ZR)

The Irwin 1/4"-20 NC Hexagon Fractional Die (6520ZR) is a high-performance threading tool engineered for both professionals and DIY enthusiasts. This precision-made die is crafted from high-carbon steel, a material known for its strength and ability to maintain a sharp cutting edge. It is specifically designed to create new 1/4"-20 NC threads or repair existing ones that have been stripped, rusted, or otherwise damaged. Its unique hexagon shape gives it a distinct advantage over traditional round dies, allowing it to be used with a die stock for standard operation or, in situations where space is restricted, with a common wrench or socket. This versatility makes it an indispensable tool for a wide range of applications, including automotive repair, plumbing, and general maintenance. The Irwin 6520ZR ensures consistent, clean, and accurate threads, helping you complete projects with a professional finish.

KEY FEATURES AND BENEFITS:

• High-carbon steel construction: Offers superior hardness and wear resistance for long-lasting use.
• Hexagon shape: Allows compatibility with die stocks, wrenches, or sockets for versatile use.
• Precision threading: Produces accurate 1/4"-20 NC threads compatible with standard nuts and bolts.
• Right-hand thread direction: Suitable for most standard applications.
• Compliance with Federal Specification GGG-D-296: Ensures quality and reliability of the tool.

SPECIFICATIONS:

• Part Number: 6520ZR
• Manufacturer: Irwin
• Material: High Carbon Steel (HCS)
• Thread Size: 1/4"-20 NC
• Thread Type: UNC (Unified National Coarse)
• Hexagon Size: 1" across the flats
• Thread Direction: Right-hand
• Included in purchase: The product is shipped as a single unit.

HOW TO USE:

1. Preparation: Secure the bolt or rod in a vise, ensuring it is held firmly. Select the correct die stock or wrench for the 1" hexagon size. If the bolt is damaged, use a file to clean the end and create a smooth, chamfered start.
2. Lubrication: Apply a generous amount of cutting oil to the area where the threads will be cut or repaired. This helps reduce friction, prolongs the life of the die, and results in a smoother finish.
3. Threading: Place the die squarely on the end of the bolt or rod. Apply firm, even pressure and turn the die clockwise. Turn the die a quarter turn forward, then a half turn backward to break the chips.
4. Completion: Continue this back-and-forth motion until the desired length of thread has been created. Remove the die and clean the newly cut threads with a wire brush to remove any metal shavings.

BENEFITS OF USING IRWIN 1/4"-20 NC HCS 1" ACROSS HEXAGON FRACTIONAL DIE (6520ZR):

• The high-carbon steel construction provides long-lasting sharpness and superior wear resistance, making this a tool you can rely on for many projects.
• The versatility of its hexagon shape allows for use with various tools, giving you the flexibility to handle threading tasks in any setting, from a workshop to a tight engine bay.
• Its precision engineering ensures that all threads are created to a consistent and accurate standard, which is critical for a proper fit and secure fastening.
• The tool is designed to work efficiently, saving you time and effort on thread repair and creation tasks.

FEATURES:

• High-carbon steel composition for prolonged edge retention.
• The 1" hexagon profile is compatible with standard wrenches and sockets.
• Designed to cut 1/4"-20 National Coarse (NC) threads.
• Ideal for both cutting new threads and cleaning up damaged ones.
• Right-hand thread direction for standard applications.
• Built to meet Federal Specification GGG-D-296 quality standards.
