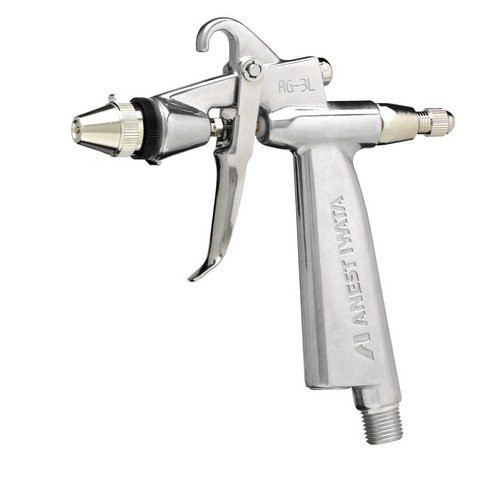

Iwata RG3L-2 0.6mm Round Pattern Spray Gun Only (2806)

The Iwata RG3L-2 0.6mm Round Pattern Spray Gun Only (2806) is a professional-grade, compact, and lightweight gravity-feed spray gun engineered for precision and detailed work. This gun delivers remarkable atomization and precise control over its round spray pattern, making it an indispensable tool for a wide array of applications requiring accuracy. Its efficient design means it requires only 1.1 cfm at 36 psi, ensuring excellent performance with minimal air consumption. The side-mounted gravity cup is designed to rotate 360 degrees, providing operators with the flexibility to spray at virtually any angle, enhancing maneuverability and access in tight spaces. Whether you are performing automotive spot repairs, blending colors, creating fine art, working on models, or engaging in various crafts, the Iwata RG3L-2 offers the consistent, high-quality finish you expect from a premium tool. Its robust construction with brass and stainless steel wetting parts ensures longevity and reliable operation, making it a valuable addition to any professional or hobbyist's toolkit.

KEY FEATURES AND BENEFITS:

• Precision Atomization: Delivers a remarkably fine and even spray pattern, crucial for achieving smooth, high-quality finishes and seamless blends.
• Low Air Consumption: Requires only 1.1 cfm at 36 psi, making it highly efficient and suitable for use with smaller air compressors.
• Optimal Control: Provides precise control over the round spray pattern, ideal for intricate detailing, touch-ups, and shading work.
• Lightweight and Compact Design: At approximately 180-200g, its ergonomic design ensures comfortable handling and reduces fatigue during extended use.
• 360° Rotating Gravity Cup: The side-mounted cup can be rotated fully, allowing for versatile spraying angles and improved access in challenging areas.
• Versatile Applications: Excellently suited for automotive refinishing (spot repairs, blending), custom design, model painting, fine art, and various craft projects.
• High Transfer Efficiency: Minimizes overspray and material waste, leading to cost savings and a cleaner work environment.

SPECIFICATIONS:

• Model: RG3L-2 (2806)
• Nozzle Diameter: 0.6mm
• Feed Style: Side-feed / Gravity-feed
• Spray Pattern: Round
• Air Consumption: 1.1 cfm (30-35 L/min)
• Optimal Working Pressure: 36 psi (0.24 MPa)
• Weight: 180g
• Air Inlet Size: G1/4
• Included in purchase: Iwata RG3L-2 0.6mm Spray Gun Only

HOW TO USE:

1. Prepare Your Material: Ensure your paint or coating material is properly mixed and strained according to the manufacturer's recommendations.
2. Fill the Cup: Pour the prepared material into the side-mounted gravity cup. Secure the cup lid.
3. Connect Air Supply: Attach your air hose to the G1/4 air inlet on the spray gun.
4. Adjust Air Pressure: Set your air compressor regulator to the optimal working pressure of 36 psi (0.24 MPa).
5. Adjust Spray Pattern: Test the spray pattern on a piece of scrap material. Adjust the fluid needle and air valve until you achieve the desired fine, even round pattern.
6. Begin Spraying: Hold the gun perpendicular to the surface at a consistent distance. Initiate the spray by pressing the trigger fully, moving your arm in smooth, even strokes across the surface.
7. Clean After Use: Immediately after use, thoroughly clean the spray gun by flushing it with the appropriate cleaning solution for your material. Disassemble necessary parts for a complete cleaning to prevent clogging and ensure longevity.

BENEFITS OF USING IWATA RG3L-2 0.6MM ROUND PATTERN SPRAY GUN ONLY (2806):

• Achieves unparalleled precision for fine detailing and superior finish quality.
• Reduces material waste by preventing spitting and enabling efficient use of small paint amounts.
• Allows flexible spray angles due to the 360° rotating cup and compact build.
• Improves handling comfort with lightweight, ergonomic design.
• Operates effectively with low air volume, reducing equipment and energy costs.
• Offers a reliable, professional-grade finish for both professionals and hobbyists.

FEATURES:

• Round pattern air-spray gun
• Requires minimal air volume for operation
• Produces remarkable atomization quality
• Designed for precise control of the spray pattern
• Ideal for blending or shading applications
• Compact and lightweight construction
• Side-mounted gravity cup for versatile spraying
• Cup rotates 360° for optimal operator flexibility
• Made with brass and stainless steel wetting parts
• Compatible with a range of fluid viscosities
