Iwata W101-101G 1.0mm Spray Gun w/PC4S 400mL Cup (4451B)

The Iwata W101-101G 1.0mm Spray Gun w/PC4S 400mL Cup (4451B) is an advanced spray gun engineered for precise and high-quality paint application. This model represents a significant upgrade from the previous W100 series, incorporating crucial improvements in its air cap set, fluid nozzle, and overall gun body design. These enhancements are specifically aimed at delivering exceptional finish results across a range of painting tasks. Whether you are working on automotive refinishing, fine woodworking, or general industrial applications, the W101-101G is designed to provide a smooth, consistent, and professional-grade finish. Its ergonomic design prioritizes user comfort, allowing for extended use without significant fatigue. The side-mounted gravity cup offers flexibility, enabling efficient spraying at various angles and positions. This spray gun is a reliable choice for professionals and enthusiasts seeking superior control and finish quality in their painting projects.

KEY FEATURES AND BENEFITS:

• Improved Atomization Performance: Achieves a superior finish by breaking down paint into finer, more uniform particles, leading to a smoother coating.
• Stable Spray Pattern Shape: Maintains a consistent and predictable spray pattern, ensuring even coverage and reducing irregularities.
• Decreased Mottling and Blotching: Minimizes common paint application defects, resulting in a more uniform and visually appealing surface, especially with metallic and pearl finishes.
• Reduced Paint Build-up on Air Cap: Less paint accumulation on the air cap translates to less frequent cleaning and more consistent spray quality during operation.
• Redesigned Ergonomic Gun Body: The gun's body is crafted for comfort and balance, significantly reducing painter fatigue during prolonged use.
• Balanced, Lightweight Gun Body: Contributes to ease of handling and maneuverability, further enhancing user comfort and control.

SPECIFICATIONS:

• Model: W101-101G
• Type of Feed: Gravity Feed
• Fluid Nozzle Diameter: 1.0 mm
• Atomizing Air Pressure: 0.24 MPa (2.5 bar / 36 PSI)
• Air Consumption: 75 L/min (2.6 cfm)
• Fluid Output: 95 mL/min
• Pattern Width: Up to 130 mm
• Atomization: General Atomization
• Air Cap Model: E1
• Weight (Mass): 295 g (gun only)
• Cup Capacity: 400 mL

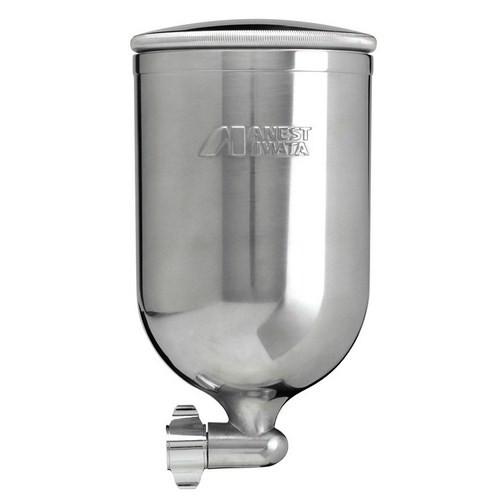

• Cup Type: PC4S Side Gravity Cup
• Cup Material: Aluminum
• Air Inlet Size: G1/4 inch
• Fluid Inlet Size: G1/4 inch
• Recommended Spray Distance: 200 mm
• Included in Product: Iwata W101-101G Gravity Feed Spray Gun, Iwata PC4S 400mL Side Gravity Cup

HOW TO USE:

1. Prepare the Work Area: Ensure your painting area is well-ventilated, clean, and free of dust. Wear appropriate personal protective equipment, including a respirator, safety glasses, and gloves.
2. Prepare the Paint: Mix your paint thoroughly according to the manufacturer's instructions. Strain the paint using a fine-mesh filter to remove any impurities that could clog the spray gun or affect the finish.
3. Fill the Cup: Pour the prepared paint into the PC4S 400mL side gravity cup. Attach the cup securely to the spray gun, ensuring a tight seal. Adjust the side-mounted cup to the desired angle for your spraying orientation.
4. Connect Air Supply: Connect the spray gun to a regulated air compressor using a compatible air hose. Set the air pressure to the recommended atomizing pressure of 0.24 MPa (36 PSI) for optimal performance.
5. Adjust Spray Pattern: Test the spray pattern on a practice surface (e.g., cardboard or scrap material). Adjust the fluid needle and air cap controls on the gun to achieve the desired pattern width and fluid output.
6. Apply Paint: Hold the spray gun perpendicular to the surface at a recommended distance of 200mm (approximately 8 inches). Move the gun in smooth, consistent, overlapping passes to ensure even coverage. Avoid arcing the gun, as this can lead to uneven application.
7. Clean After Use: Immediately after painting, empty any remaining paint from the cup. Disassemble the air cap, fluid nozzle, and fluid needle. Clean all components thoroughly with the appropriate cleaning solvent for your paint type. Reassemble the gun once all parts are clean and dry.

BENEFITS OF USING IWATA W101-101G 1.0MM SPRAY GUN W/PC4S 400ML CUP (4451B):

• Achieves professional-level paint finishes with minimal effort.
• Contributes to a more consistent and smooth application, reducing rework.
• Enhances painting efficiency due to stable pattern and reduced defects.
• Provides comfort and control for extended painting sessions, minimizing hand strain.
• Offers adaptability for various painting angles with its flexible side cup.
• Reduces paint waste due to its efficient atomization and transfer.
• Simplifies maintenance with a design that lessens paint buildup.

FEATURES:

• Advanced air cap and fluid nozzle design for superior spray quality.
• Optimized fluid passage for consistent material flow.
• Precision-machined internal components for accurate control.
• Side-mounted gravity cup allowing for 360-degree rotation.
• Stainless steel fluid needle and nozzle for corrosion resistance.
• Adjustable pattern control for versatile spray shapes.
• Ergonomically shaped handle for a comfortable grip.
