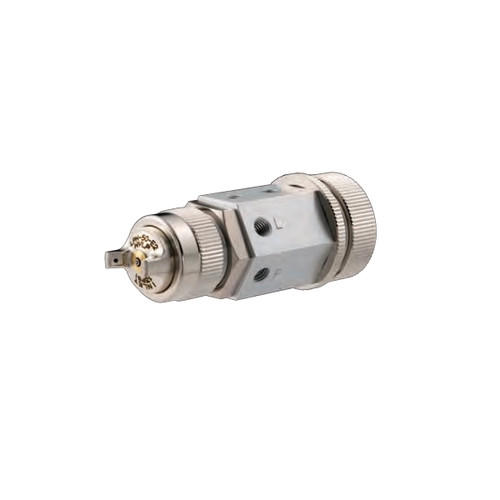

Iwata AS80-011 Ultra Small Marking Gun Only (5426)

The Iwata AS80-011 Ultra Small Marking Gun Only (5426) is a specialized ultra-small automatic spray gun crafted for high-precision marking systems. Its remarkably compact design makes it an optimal solution for integration into automated industrial equipment, small robots, and scenarios where operational space is at a premium. This gun excels in delivering fine atomization, producing precise, consistent marks essential for detailed industrial applications. Whether applying identification marks, coding, or fine coatings, the AS80-011 ensures reliable and accurate fluid delivery, enhancing the efficiency and quality of your production processes. It represents Iwata's commitment to sophisticated Japanese craftsmanship and advanced atomization technology, providing a professional-grade tool for demanding industrial environments.

KEY FEATURES AND BENEFITS:

• Ultra-Compact Design: Seamless integration into automated systems and small robots, ideal for confined work areas.
• Precise Atomization: Delivers a very fine spray, ensuring crisp, clear, and consistent marks for high-quality results.
• Optimized Spray Pattern: Narrow spray pattern reduces the need for extensive masking, streamlining application processes.
• Low Maintenance Design: Engineered for straightforward upkeep, contributing to sustained operational efficiency.
• Reliable Performance: Built with Iwata's respected quality, ensuring consistent operation in continuous industrial use.

SPECIFICATIONS:

• Nozzle Size: 1.0mm
• Air Pressure: 0.8 Bar
• Air Consumption: 50 l/min
• Fluid Output: 55 ml/min
• Pattern Width: 100mm
• Inlets: M5 x 0.8 mm (for atomizing air, pattern air, operating air, and fluid inlet)
• Body Material: Aluminum, Stainless Steel
• Included in Purchase: Iwata AS80-011 Ultra Small Marking Gun Only

HOW TO USE:

• Mounting: Securely mount the Iwata AS80-011 to your automated equipment or robotic arm using appropriate brackets and fasteners.
• Connect Air Lines: Connect the atomizing air, pattern air, and operating air lines to the respective M5 x 0.8 mm inlets on the spray gun.
• Connect Fluid Line: Attach the fluid supply line to the fluid inlet (M5 x 0.8 mm) on the spray gun.
• Adjust Air Pressure: Regulate the air pressure to 0.8 Bar at the air source for optimal atomization.
• Test Spray Pattern: Activate the spray gun in a controlled area to observe the spray pattern and make adjustments as necessary.
• Integrate with Automation: Program your automated system or robot to activate the spray gun at the precise timing and location for marking.
• Maintenance: Regularly clean the nozzle and fluid passages according to the manufacturer's recommendations to maintain performance.

BENEFITS OF USING THE IWATA AS80-011 ULTRA SMALL MARKING GUN (5426):

• Precision in Marking: Enhances accuracy in automated marking applications due to fine atomization.
• Seamless Integration: Facilitates incorporation into existing machinery, even in space-constrained environments.
• Consistent Quality: Delivers uniform and clear marks, contributing to consistent product quality.
• Material Efficiency: Reduces waste with its narrow pattern, leading to more efficient operations.
• Long-Term Reliability: Offers dependable performance characteristic of Iwata's industrial-grade equipment.
• Streamlined Production: Minimizes the need for manual marking and masking, enhancing workflow efficiency.
• Versatile Applications: Suitable for various fluid types with options for different body materials.

FEATURES:

• Automated Application: Designed for robotic and machine integration.
• Compact Dimensions: Ideal for installation in limited space envelopes.
• Fine Particulate Spray: Produces a very fine spray for detailed marking.
• Adjustable Spray Pattern: Allows for adjustment between fan and directional spray.
• Easy Maintenance: Engineered for straightforward cleaning and part replacement.
• Standard M5 x 0.8 mm Inlets: For all connections, ensuring compatibility.
• Material Composition: Available in aluminum and stainless steel for durability.
