Description

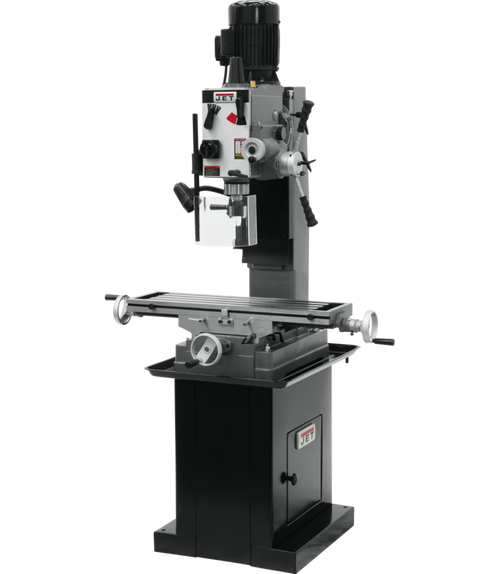

The Jet JMD-45GHPF Square Column Mill/Drill Dwnfd DP500 2-Ax DRO (351160) is a heavy-duty machine built for precision drilling and milling tasks.
KEY FEATURES AND BENEFITS:
- Rigid Square Column Design: Delivers stability and accuracy during drilling and milling.
- 6-Speed Geared Head: Provides a wide range of speeds for optimal tool performance in various materials.
- Power Downfeed: Ensures precise depth control for consistent results.
- DP500 2-Axis DRO: Offers digital readouts on two axes for accurate positioning.
- R8 Spindle Taper: Compatible with a wide variety of drilling and milling tooling.
- Easy-to-Read Internal Depth Gauge: Allows for quick and easy depth measurement.
- Head Tilts Left & Right 90°: Enables angled drilling and milling operations.
- Large Table with T-Slots: Provides ample workspace and secure clamping for workpieces.
- CSA/CUS Certified: Meets strict safety and electrical standards.
SPECIFICATIONS:
- Model Number: JMD-45GHPF
- Motor: 1-1/2 HP, 115/230V, 1 Phase
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65-1550 RPM
- Spindle Taper: R8
- Spindle Travel: 5 in.
- Quill Diameter: 3 in.
- Swing: 19-11/16 in.
- Max Distance Spindle to Table: 18-1/8 in.
- Table Size (L x W): 9-1/2 x 32-1/4 in.
- Table Longitudinal Travel: 20-1/2 in.
- Base Dimensions: 26-11/16 x 15-15/16 in.
- Overall Dimensions (L x W x H): 29 x 36 x 50 in.
- Weight: 820 lbs.
HOW TO USE:
- Assembly and Setup: Refer to the user manual for detailed assembly instructions. Secure the mill drill on a stable workbench and connect it to the appropriate power source. Install the desired drilling or milling tool in the R8 spindle taper.
- Positioning and Adjustment: Use the table handwheels and quill travel to position the workpiece and adjust the drilling depth. The DP500 DRO displays the position on two axes for precise control.
- Drilling and Milling: Select the appropriate spindle speed based on the material and tool size. Engage the power feed and start drilling or milling the workpiece. Utilize the head tilt function for angled operations when needed.
- Safety: Always wear safety glasses and appropriate personal protective equipment while operating the mill drill. Ensure the machine is properly secured and the workpiece is firmly clamped before starting.
BENEFITS OF USING Jet JMD-45GHPF Square Column Mill/Drill Dwnfd DP500 2-Ax DRO (351160):
- Achieve high precision drilling and milling results with a rigid design and digital readouts.
- Handle a wide range of drilling and milling tasks with various materials using the powerful motor and variable speeds.
- Ensure accurate depth control with the power downfeed feature.
- Work efficiently with a spacious table, easy-to-read depth gauge, and quick gear changes.
- Invest in a reliable and safe machine with CSA/CUS certification for peace of mind.
FEATURES:
- Square column with dovetail ways
- Spindle guard
- Work lamp
- Calibrated fine down feed
- Forward/reverse switch
-
