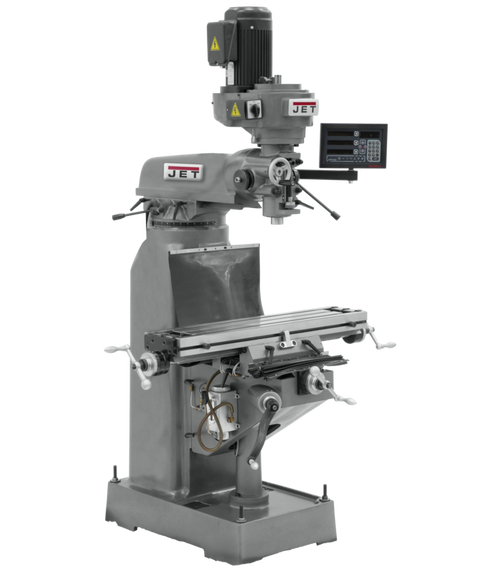

Jet JVM-836-1 Mill With ACU-RITE 203 DRO X and Y Powerfeeds (690162)

The Jet JVM-836-1 Mill With ACU-RITE 203 DRO X and Y Powerfeeds (690162) is a versatile vertical milling machine designed for mid-size metalworking projects. This mill offers a balance of precision, durability, and ease of use, making it suitable for both professional machinists and hobbyists.

KEY FEATURES AND BENEFITS:

• Precision Machining: The precision-bored and honed milling head, coupled with the hardened and ground 8" x 36" table, minimizes deflection and ensures accurate cuts. The ACU-RITE 203 DRO system provides digital readouts on the X and Y axes for precise positioning of the workpiece.
• Durability and Rigidity: The large diameter quill is chrome-plated for wear resistance. High-precision spindle bearings and dovetail ways contribute to the machine's long-lasting performance. Locks on all moving surfaces enhance stability and safety during operation.
• Increased Efficiency: The X and Y-axis power feeds automate table movement, reducing operator fatigue and allowing for faster machining. The head tilts left and right for angular milling applications.
• User-Friendly Design: The graduated scale on the column provides easy visual reference for positioning. The one-shot lubrication system simplifies maintenance.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 115V/230V, single-phase
• Number of Spindle Speeds: 5 (240 - 1,550 RPM)
• Spindle Taper: R-8
• Quill Diameter: 3-3/8"
• Quill Travel: 5"
• Table Size: 7-7/8" x 35-3/4"
• Table Longitudinal Travel: 22-1/4" (18" with power feed)
• Table Cross Travel: 9-1/2"
• Worktable Weight Capacity: 500 lbs.
• Overall Dimensions (L x W x H): 55" x 52" x 78"
• Weight: 1,617 lbs.

HOW TO USE:

1. Assembly and Setup: Refer to the owner's manual for detailed assembly instructions. Secure the mill to a stable and level surface. Install the desired cutting tool into the R-8 spindle taper.
2. Workpiece Setup: Clamp the workpiece securely to the table using appropriate workholding methods (vises, clamps, etc.). Ensure proper clearance between the tool and the workpiece.
3. Adjustments: Set the desired spindle speed based on the material and tool size. Use the DRO system and graduated scales to precisely position the workpiece and cutting tool. Engage the locks on all moving surfaces for stability.
4. Operation: Start the motor and engage the power feeds (if desired) to move the table along the X or Y-axis. Lower the quill to initiate cutting. Monitor the process and make adjustments as needed.
5. Safety: Always wear safety glasses, gloves, and appropriate clothing when operating the mill. Be mindful of pinch points and rotating machinery. Shut off the power and wait for all components to stop before making adjustments or cleaning the machine.

BENEFITS OF USING Jet JVM-836-1 Mill With ACU-RITE 203 DRO X and Y Powerfeeds (690162):

• Achieve accurate and repeatable results for various metalworking projects.
• Increase productivity with automated table movements and efficient design.
• Experience smooth and precise operation with high-quality components.
• Ensure operator safety with a user-friendly design and safety features.
• Handle a wide range of materials and project sizes with its versatile capabilities.

FEATURES:

• Precision-bored and honed milling head
• Hardened and ground 8" x 36" table
• ACU-RITE 203 DRO system (X and Y)
• X and Y-axis power feeds
• 1-1/2 HP motor (115V/230V)
• 5-speed spindle (240 - 1,550 RPM)
• R-8 spindle taper
• 3-3/8" diameter quill with 5" travel
• 90-degree tilting head (left and right)
• Graduated scale on column
• Precision ground dovetail ways
• One-shot lubrication system
