Description

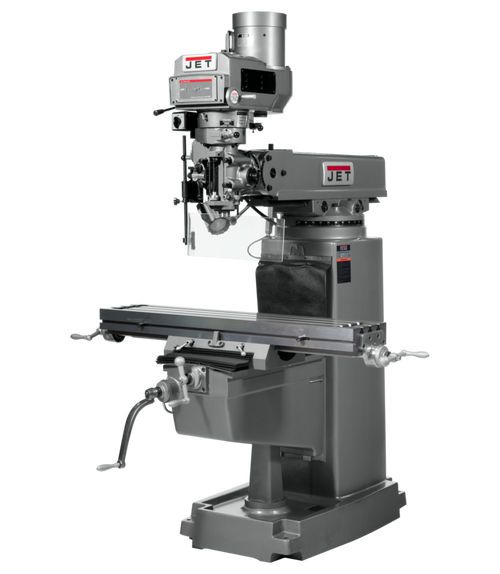

The Jet JTM-1050 Mill w/ACU-RITE 203 DRO XYZ Axis Powerfeeds (690450) is a versatile and powerful vertical milling machine designed for demanding metalworking applications. Featuring a robust 3HP motor with variable speeds from 70 to 3,800 RPM, this machine handles a wide range of materials with ease. The large, hardened and ground 10" x 50" table provides ample workspace, supported by heavy-duty Meehanite castings that ensure rigidity and minimize vibration for superior machining results.
KEY FEATURES AND BENEFITS:
- 3HP motor with variable speeds (70 - 3,800 RPM): Tackles a wide range of materials and cutting tasks.
- Large 10" x 50" hardened and ground table: Provides ample workspace for various projects.
- Heavy-duty Meehanite castings: Ensure rigidity and minimize vibration for superior machining results.
- High-precision class 7 spindle bearings: Enhance accuracy during operation.
- Precision-bored and honed milling head: Contributes to exceptional machining accuracy.
- ACU-RITE VUE Digital ReadOut (DRO) on X, Y, and Z axes: Provides real-time positional feedback for precise machine control.
- Powerfeeds on X, Y, and Z axes: Automate movements for efficient and consistent machining.
- Spindle travel: 5 inches for deep cuts.
- Quill diameter: 3-3/8 inches for compatibility with a wide range of tooling.
- Collet capacity: 1/8" to 7/8" for versatile tooling options.
- Head movement: 90° right/left and 45° forward/backward for angled milling operations.
- Internal coolant tank: Allows for coolant use (pump not included) to control chips and extend tool life.
- Hardened and ground square vertical knee ways and cross ways: Ensure long-lasting machine performance.
- Adjustable gibs: Maintain machine precision over time.
- One-shot lubrication system: Simplifies machine upkeep.
- Heavy-duty spindle brake: Enhances safety during operation.
SPECIFICATIONS:
- Motor: 3 HP, 230/460V, 3-Phase
- Table Size: 10" x 50"
- Spindle Taper: R8
- Quill Travel: 5"
- Range of Spindle Speeds: 70 - 3,800 RPM
- Collet Capacity: 1/8" - 7/8"
- Overall Dimensions: 96" x 78" x 88"
- Weight: 2,900 lbs.
HOW TO USE:
- Step 1: Power on the machine and set the desired spindle speed.
- Step 2: Utilize the ACU-RITE VUE DRO for precise positioning on X, Y, and Z axes.
- Step 3: Engage the powerfeeds on X, Y, and Z axes for automated material movement.
- Step 4: Adjust head movement for angled milling operations as needed.
- Step 5: Use the internal coolant tank for flood cooling applications to extend tool life.
BENEFITS OF USING Jet JTM-1050 Mill w/ACU-RITE 203 DRO XYZ Axis Powerfeeds (690450):
- Powerful and Versatile: Handles diverse metalworking tasks with precision and efficiency.
- Precision and Control: ACU-RITE VUE DRO and powerfeeds ensure accurate and consistent machining.
- Durable Construction: Meehanite castings and hardened ways provide long-lasting performance.
- Enhanced Safety: Includes a heavy-duty spindle brake for operator safety.
FEATURES:
- 90° right/left and 45° forward/backward.
- Allows coolant use (pump not included).
- Ensure durability.
- Maintain precision.
- Simplifies maintenance.
- Enhances safety.
-
