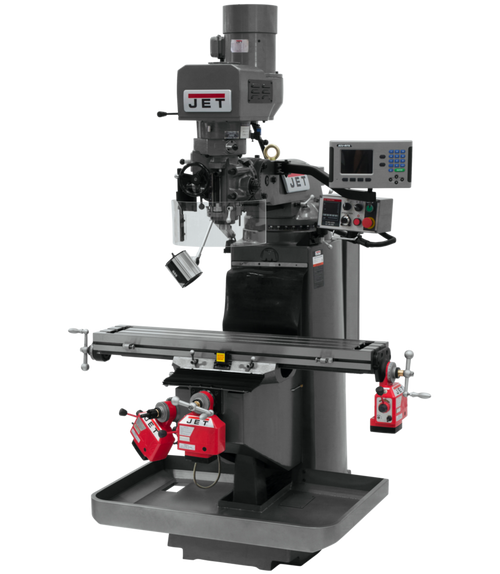

Jet JTM-949EVS Mill With Acu-Rite 203 DRO With XYZ Powerfeeds (690524)

Jet JTM-949EVS Mill With Acu-Rite 203 DRO With XYZ Powerfeeds (690524) is a heavy-duty vertical milling machine designed for professional machinists and workshops. This versatile machine features a rigid Meehanite cast iron base for stability and a variable speed motor for tackling a wide range of materials. The large 9" x 49" table and 5" quill travel provide ample workspace for various applications.

KEY FEATURES AND BENEFITS:

• Precision and Durability: Meehanite cast iron base minimizes vibration and maintains accuracy. Hardened and ground table and ways ensure smooth travel and long-lasting performance.
• Variable Speed Control: Electronic speed control allows for adjustments from 60 to 4,500 RPM, providing optimal settings for different cutting tasks.
• Power Feeds: X, Y, and Z-axis power feeds automate tool movement for efficient and consistent machining.
• Digital Readout (DRO): Acu-Rite 203 DRO provides precise positioning for enhanced control and repeatability.
• Convenience and Safety: Swing-away control box with emergency stop button for easy access and operator safety. Automatic oiler ensures proper lubrication. Relocated electrical box with outlets for powering accessories. LED work lamp improves visibility.

SPECIFICATIONS:

• Table size: 9" x 49" (length x width)
• Quill diameter: 3-3/8"
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 - 4,500
• Quill Down Feed Rates (IPR): 0.0015 - 0.003 - 0.006
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90 Degree R & L, 45 Degree F & B
• Max Distance Spindle to Table (In.): 20-3/4
• Motor (HP): 3HP, 230V, 3Ph
• Weight: 2,420 lbs

HOW TO USE:

1. Installation: Secure the mill to a sturdy workbench and level it using the adjustable base.
2. Setup: Mount the desired cutting tool in the spindle and adjust its height and position using the quill travel and table movements. Utilize the DRO for precise positioning.
3. Operation: Power on the machine and select the appropriate spindle speed based on the material and cutting tool. Engage the power feeds (optional) for automated tool movement along the X, Y, or Z-axis. Utilize the safety shield and emergency stop button for safe operation.
4. Machining: Move the workpiece and cutting tool to perform desired milling operations. Refer to machining manuals and safety guidelines for specific techniques.
5. Maintenance: Regularly clean the machine, lubricate moving parts, and replace cutting tools as needed.

BENEFITS OF USING Jet JTM-949EVS Mill With Acu-Rite 203 DRO With XYZ Powerfeeds (690524):

• Increased Efficiency: Power feeds and variable speed control allow for faster and more consistent machining compared to manual operation.
• Improved Accuracy: Rigid construction, DRO, and precise table movements ensure accurate results for demanding projects.
• Versatility: Handles a wide range of materials and applications with its variable speed control, large work table, and quill travel.
• Durability: Built with high-quality components like Meehanite cast iron for long-lasting performance in workshops and professional environments.

FEATURES:

• Meehanite cast iron base for rigidity and vibration dampening
• Variable speed motor (60-4,500 RPM) for a wide range of applications
• X, Y, and Z-axis power feeds for automated tool movement
• Acu-Rite 203 DRO for precise positioning
• Swing-away control box with emergency stop button
• Automatic oiler for proper lubrication
• Heavy-duty spindle brake for safety
• Relocated electrical box with outlets for accessories
• LED work lamp for improved visibility
• Chip pan for easy waste collection
• Dual locks on movable surfaces for stability
• Way covers to protect the ways from debris
• Drawbar and toolbox with tools included
