Description

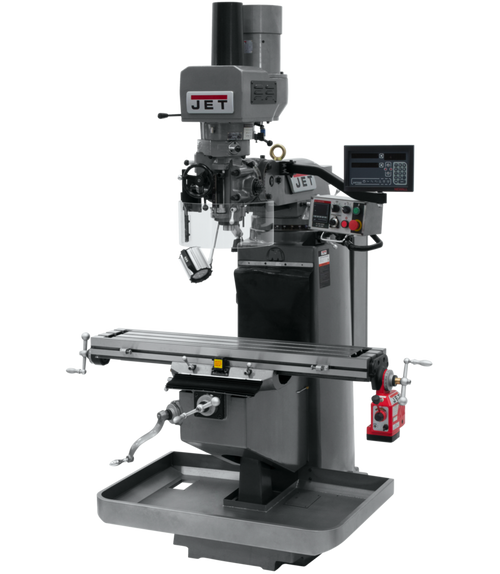

Jet JTM-949EVS Mill 3-Ax Newall DP700 DRO X-Axis Pwrfd & APDB (690541) is a versatile and precise 3-axis knee mill designed for professional machinists and hobbyists alike. This powerful machine features a variable speed spindle motor, digital readout system (DRO), X-axis power feed, and air-powered drawbar for efficient and accurate milling operations.
KEY FEATURES AND BENEFITS:
- Rigid Construction: The Meehanite® casting with enhanced ribbing minimizes deflection and maintains precise tolerances.
- Operator Convenience: Swing-away control box with integrated emergency stop for easy access and innovative base design for simple leveling.
- Automatic Lubrication: Automatic oiler ensures proper lubrication for extended machine life.
- Safety Features: Heavy-duty spindle brake stops the spindle and cuts power to prevent accidental startups. Relocated electrical box provides additional safety and includes outlets for powered accessories.
- Durable Components: Class 7 spindle bearings and internally cooled spindle head enhance durability.
- Precision Machining: Hardened and precision-ground table and ways contribute to machining accuracy.
- Smooth Operation: Turcite-B coating on the X and Y-axis reduces vibration and ensures smooth movement.
- Additional Features: Swing-away safety shield, LED work lamp, chip pan, dual locks on movable surfaces, way covers, drawbar, and toolbox with tools.
SPECIFICATIONS:
- Digital Readout: Newall DP700
- Number of Axis: 3 (Knee)
- Powerfeed: X-Axis
- Power Draw Bar: Pneumatic
- Table Size (L x W): 9 x 49 in.
- Spindle Travel: 5 in.
- Range of Spindle Speeds: 60 - 4,500 RPM
- Motor: 3 HP, 230V, 3-Phase
- Overall Dimensions: 67 x 64 x 86 in.
- Weight: 2,420 lbs.
HOW TO USE:
- Installation: Secure the mill to a sturdy and level workbench using the appropriate mounting hardware (not included). Ensure proper electrical connection based on the machine's voltage requirements (230V, 3-Phase).
- Preparation: Mount the desired cutting tool into the spindle using the drawbar and collets (refer to the manual for specific instructions). Adjust the table height and position using the handwheels and consult the DRO for precise positioning.
- Operation: Power on the machine and set the desired spindle speed using the variable speed control. Engage the X-axis power feed (if needed) and utilize the handwheels or DRO for manual control of the axes.
- Safety: Always wear appropriate safety gear such as safety glasses, gloves, and hearing protection when operating the mill. Be mindful of pinch points and keep loose clothing away from moving parts.
BENEFITS OF USING Jet JTM-949EVS Mill 3-Ax Newall DP700 DRO X-Axis Pwrfd & APDB (690541):
- Increased Efficiency: The variable speed motor, power feed, and DRO system allow for faster and more efficient milling operations.
- Improved Accuracy: Rigid construction, precision-machined components, and the DRO system contribute to highly accurate results.
- Versatility: The 3-axis movement and various features enable tackling a wide range of milling tasks.
- Durability: Quality materials and construction ensure long-lasting performance.
- Safety Features: The integrated safety features promote a safer working environment.
FEATURES:
- Meehanite® casting for rigidity
- Variable speed spindle motor
- Newall DP700 digital readout system (DRO)
- X-axis power feed
- Pneumatic drawbar
- Swing-away control box with emergency stop
- Automatic oiler
- Heavy-duty spindle brake
- Internally cooled spindle head
- Hardened and precision-ground table and ways
- Turcite-B coating on X and Y-axis for smooth operation
- Swing-away safety shield
- LED work lamp
- Chip pan
- Dual locks on movable surfaces
- Way covers
- Drawbar
- Toolbox with tools
-
