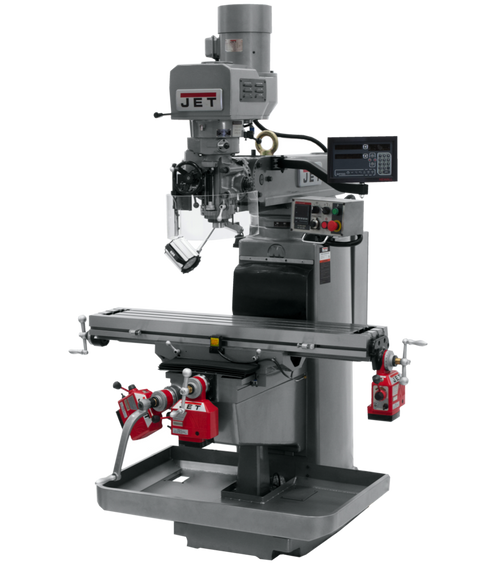

    Jet 690638 JTM-1050EVS2/230 Mill Newall DP700 DRO X, Y & Z-Axis Powerfeeds

    Constructed using the Meehanite casting process, the JTM-1050EVS2/230, 10 Inch x 50 Inch Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you have come to expect and are backed by the industry-leading JET Two Year Warranty

    • JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention
    • Swing away control box houses an e-stop and puts all controls at the operators fingertips
    • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
    • Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
    • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
    • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
    • CSA/CUS Certified
    • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
    • Spindle head is internally cooled extending bearing, belt and motor life
    • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
    • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
    • Swing away safety shield
    • LED work lamp
    • Chip pan
    • Dual locks on all moveable surfaces
    • Way covers
    • Drawbar
    • Tool box with tools


    • Digital Readout: Newall DP700
    • Powerfeed: X, Y and Z-Axis
    • Table Size (L x W) (In.): 10 x 50
    • Quill Diameter (In.): 3-3/8
    • Number of Spindle Speeds: Variable
    • Range of Spindle Speeds (RPM): 60 - 4,500
    • Quill Down Feed Rates (IPR): .0015 - .003 - .006
    • Spindle Travel (In.): 5
    • Head Movement (Deg.): 90 DegreeR & L 45 Degree F & B
    • Max Distance Spindle to Table (In.): 20-3/4
    • Distance Spindle to Column (Max.) (In.): 26-3/4
    • Distance Spindle to Column (Min.) (In.): 4-3/4
    • Collet Capacity: 1/8 - 7/8
    • Table Longitudinal Travel (In.): 35-1/3
    • Table Longitudinal Travel With Powerfeed (In.): 29-7/8
    • Table Cross Travel (In.): 14-3/4
    • T-Slots Number and Size (In.): 3 and 5/8
    • T-Slot Centers (In.): 2-1/2
    • Work Table Weight Capacity (Lbs.): 840
    • Travel of Knee (In.): 16-1/8
    • Travel of Ram (In.): 15-7/8
    • Saddle Width (In.): 11-1/2
    • Column Width (In.): 20
    • Inverter Type: Delta, B
    • Motor (HP): 3 HP, 230V, 3Ph
    • Overall Dimensions (L x W x H) (In.): 66 x 63 x 87
    • Weight (Lbs.): 2,860
