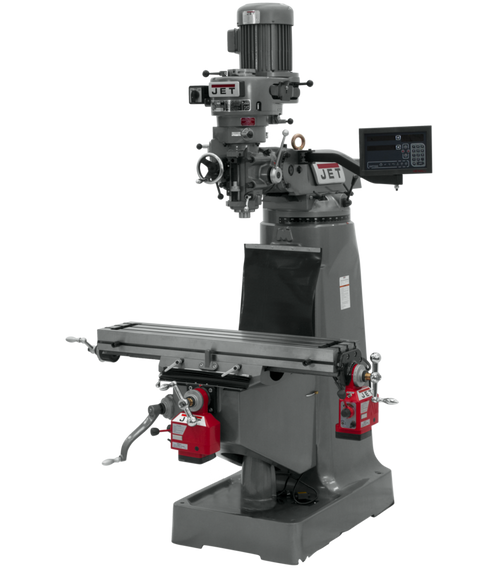

Jet JTM-1 Mill w/ C80 2-Axis DRO and XY Powerfeed Installed (691189)

The Jet JTM-1 Mill w/ C80 2-Axis DRO and XY Powerfeed Installed (691189) is a robust and versatile machine tool designed to handle a wide range of milling tasks with precision and efficiency. It boasts a 2 HP motor, a 2-axis DRO for accurate positioning, and X & Y power feeds for automated movement, making it suitable for both small workshops and industrial settings.

KEY FEATURES AND BENEFITS:

• Rigid Construction: Built with a Meehanite casting, the JTM-1 provides a stable platform for precise machining, minimizing vibrations and ensuring consistent results.
• Precision Milling Head: The precision bored and honed milling head guarantees smooth and accurate spindle movement for superior surface finishes.
• Enhanced Accuracy: The integrated 2-axis DRO (Digital Readout) simplifies precise positioning and eliminates the need for manual measurements.
• Automated Movement: X & Y power feeds enable automated table movement, improving efficiency and reducing operator fatigue.
• Efficient Cooling: The internally cooled spindle head prevents overheating, ensuring optimal performance during extended operations.
• User-Friendly Design: Satin chrome finished dials and easy-to-reach controls make operation intuitive and comfortable.

SPECIFICATIONS:

• Motor: 2 HP, 230V, 3 Ph
• Spindle Speeds: 16
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 Inch
• Table Size: 9 x 42 Inches
• Table Travel: 23-7/8 inches (Longitudinal), 12-1/2 inches (Cross)
• Weight: 2,200 lbs

HOW TO USE:

1. Preparation: Securely mount your workpiece on the milling table using appropriate clamps or fixtures.
2. Tool Selection: Choose the correct milling cutter for your desired operation and install it in the spindle.
3. Positioning: Use the 2-axis DRO to precisely position the table and workpiece relative to the milling cutter.
4. Speed and Feed Selection: Consult the machine's manual or reference charts to determine the appropriate spindle speed and feed rate for your material and cutter.
5. Operation: Engage the power feeds (if desired) and initiate the milling process. Monitor the operation closely and make adjustments as needed.
6. Completion: After the milling operation is complete, disengage the power feeds, retract the tool, and carefully remove the workpiece from the table.

BENEFITS OF USING Jet JTM-1 Mill w/ C80 2-Axis DRO and XY Powerfeed Installed (691189):

• Increased Productivity: Automated features like power feeds and the DRO streamline operations and reduce machining time.
• Improved Accuracy: Precise positioning and consistent performance result in higher quality workpieces.
• Versatility: Accommodates a wide range of milling operations, from simple cuts to complex profiles.
• Durability: The robust construction and quality components ensure long-lasting reliability.
• User-Friendly: Intuitive controls and ergonomic design make it easy to operate for both beginners and experienced machinists.

FEATURES:

• Meehanite casting
• Precision bored and honed milling head
• Chromed quill
• Class 7 spindle bearings
• Internally cooled spindle head
• Satin chrome finished dials
• Heavy-duty splined motor drive
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
