Jet JTM-1254VS Mill w/ACU-RITE 203 3X (Q) DRO & XY Pwrfds (698063)

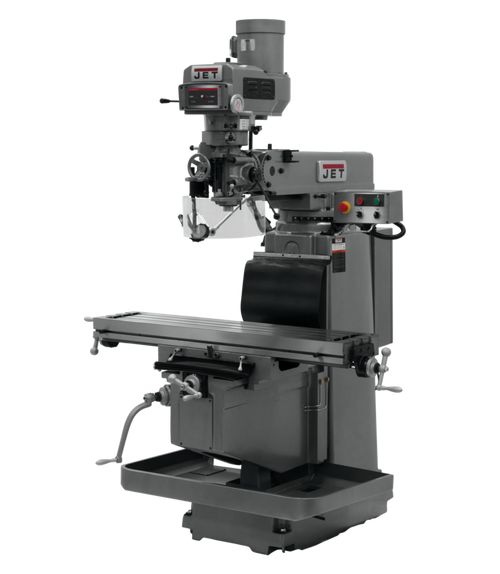

Jet JTM-1254VS Mill w/ ACU-RITE 203 3X (Q) DRO & XY Powerfeeds (698063) is a heavy-duty vertical milling machine designed for precision and efficiency. With its variable speed motor, ACU-RITE 203 DRO, and X & Y power feeds, this machine is ideal for a wide range of metalworking applications. Built with durability in mind, it features certified Meehanite castings, precision ground ways, and a robust construction.

KEY FEATURES AND BENEFITS:

• ACU-RITE 203 DRO: Provides accurate measurements and control for precise machining.
• X & Y Power Feeds: Increases productivity and efficiency by automating movement.
• Variable Speed Motor: Offers flexibility for various cutting conditions.
• Automatic Lubrication: Reduces maintenance and extends machine life.
• Quick Spindle Feed Nut: Enables fast and easy spindle adjustments.
• Certified Meehanite Castings: Ensures stability and rigidity.
• Precision Ground Ways: Provides smooth and accurate movement.
• Three-Stage Power Downfeed: Offers precise control over cutting depth.
• Heavy-Duty Spindle Brake: Stops the spindle quickly and safely.
• Turcite B Coated Ways: Reduces friction and wear.

SPECIFICATIONS:

• Spindle Taper: NST #40
• Table Size: 12" x 54"
• Quill Diameter: 4-1/8"
• Spindle Speed Range: 80-3,800 RPM
• Quill Down Feed Rates: .0015-.003-.008 IPR
• Spindle Travel: 5"
• Head Movement: 90° Right & Left, 45° Forward & Back
• Max Distance Spindle to Table: 23"
• Distance Spindle to Column (Max): 27-3/4"
• Distance Spindle to Column (Min): 7-1/2"
• Collet Capacity: 1/8" - 1"
• Table Longitudinal Travel: 33-7/8"
• Table Longitudinal Travel With Powerfeed: 28-1/4"
• Table Cross Travel: 15-1/3"
• T-Slot Centers: 2-1/2"
• Work Table Weight Capacity: 925 lbs
• Travel of Knee: 19-1/4"
• Travel of Ram: 25"
• Saddle Width: 25-5/8"
• Column Width: 14-1/4"
• Motor: 5 HP, 230/460V, 3 Ph
• Overall Dimensions: 92-1/8" x 79-7/8" x 104-1/4"
• Weight: 3969 lbs

HOW TO USE:

1. Set up the machine: Ensure the machine is securely mounted on a level surface and properly connected to the power supply.
2. Install the desired cutting tool: Select the appropriate cutting tool for your project and secure it in the spindle using the drawbar.
3. Adjust the spindle speed: Choose the optimal spindle speed based on the material you are cutting and the desired cutting depth.
4. Position the workpiece: Securely clamp the workpiece to the machine table using a vise or clamps.
5. Set the desired depth of cut: Adjust the quill height to achieve the desired cutting depth.
6. Engage power feed: Turn on the power feed and control the feed rate using the control panel.
7. Perform the cutting operation: Carefully guide the cutting tool along the workpiece, ensuring proper cutting depth and feed rate.
8. Monitor the cutting process: Observe the cutting operation for any signs of tool chatter or excessive heat.
9. Cool the workpiece: Use coolant as needed to prevent overheating and improve tool life.
10. Turn off the machine: Once the cutting operation is complete, turn off the power feed and spindle.

BENEFITS OF USING Jet JTM-1254VS Mill w/ ACU-RITE 203 3X (Q) DRO & XY Powerfeeds:

• Improved productivity: The X & Y power feeds and variable speed motor increase efficiency.
• Enhanced accuracy: The ACU-RITE DRO and precision-engineered components ensure precise machining.
• Reduced downtime: The automatic lubrication system minimizes maintenance requirements.
• Versatility: Handles a wide range of metalworking tasks.
• Durability: Built to last with heavy-duty construction and high-quality materials.

FEATURES:

• ACU-RITE 203 DRO
• X & Y Power Feeds
• Variable Speed Motor
• Automatic Lubrication
• Quick Spindle Feed Nut
• Certified Meehanite Castings
• Precision Ground Ways
• Three-Stage Power Downfeed
• Heavy-Duty Spindle Brake
• Turcite B Coated Ways
• Spindle Safety Guard
• LED Machine Lamp
• Dual Locks on All Moveable Surfaces
• Chip Pan
• Drawbar
• Tool Box with Tools
